2009 Makino A51 Horizontal Machining Center
Have one to sell?
ConditionUsed
1 available

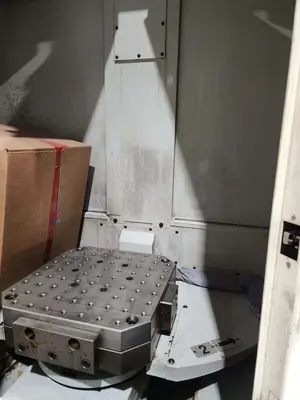

This 2009 Makino A51 horizontal machining center carries a 60-tool ATC and a 14,000 RPM CAT-40 spindle, with 15.75" x 15.75" pallets. It has 22.05" of X-axis, 25.20" of Y-axis, and 25.20" of Z-axis travel, with a 2,362.20 IPM rapid traverse and a 0.9-second tool-to-tool change time
Rapid Traverse: 2,362.20 IPM
Cutting Feedrate: 1,968.50 IPM
Maximum Workpiece: 24.80" Dia. x 35.43"
Maximum Payload: 881.85 lbs
Tool to Tool: 0.9 Seconds
Chip to Chip: 2.2 Seconds
Maximum Tool Length: 16.93"
Maximum Tool Diameter: 6.69"
Maximum Tool Weight: 26.46 lbs
This 2009 Makino A51 horizontal machining center carries a 60-tool ATC and a 14,000 RPM CAT-40 spindle, with 15.75" x 15.75" pallets. It has 22.05" of X-axis, 25.20" of Y-axis, and 25.20" of Z-axis travel, with a 2,362.20 IPM rapid traverse and a 0.9-second tool-to-tool change time
The Makino A51, also searched as Makino A-51, A 51, or a51, is a 400mm horizontal machining center (HMC).
This machine has a 1,968.50 IPM cutting feedrate and a 2.2-second chip-to-chip time, and handles workpieces up to 24.80" in diameter by 35.43" with a max payload of 881.85 lbs. It takes tools up to 16.93" long, 6.69" in diameter, and 26.46 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 22.05" |
| Y | 25.2" |
| Z | 25.2" |
| RPM | 14,000 RPM |
| # ATC | 60 |
| Taper | CAT-40 |
| Pallet-W | 15.75" |
| Pallet-L | 15.75" |
| # Axis | 4 |
Rapid Traverse: 2,362.20 IPM
Cutting Feedrate: 1,968.50 IPM
Maximum Workpiece: 24.80" Dia. x 35.43"
Maximum Payload: 881.85 lbs
Tool to Tool: 0.9 Seconds
Chip to Chip: 2.2 Seconds
Maximum Tool Length: 16.93"
Maximum Tool Diameter: 6.69"
Maximum Tool Weight: 26.46 lbs
