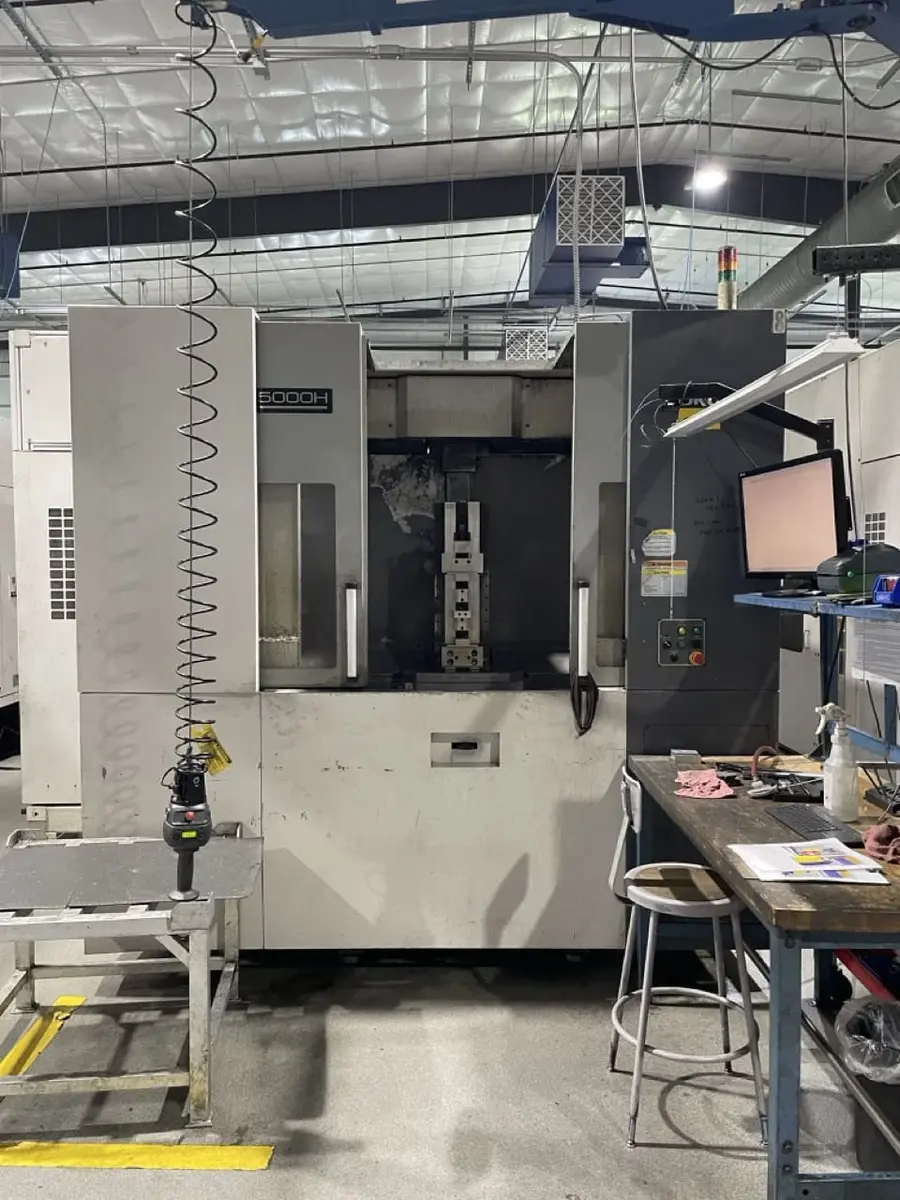

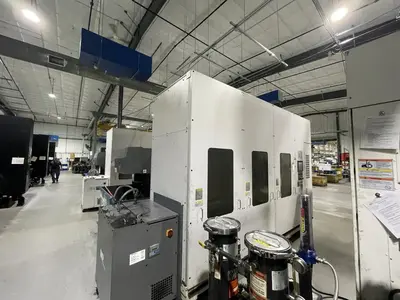

2011 Okuma MB-5000H Horizontal Machining Center with 110 ATC
Have one to sell?
ConditionUsed
1 available

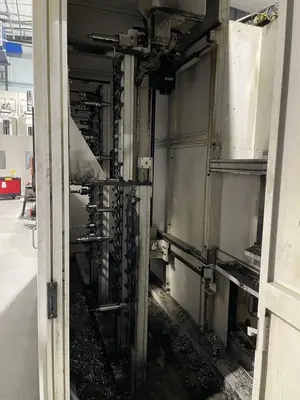

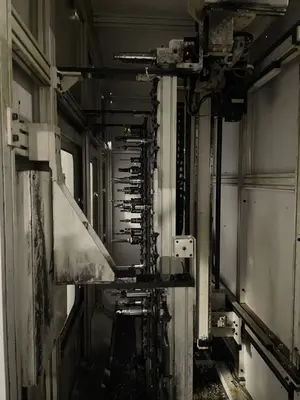

This 2011 Okuma MB-5000H horizontal machining center has a 110-position tool magazine, high pressure through spindle coolant, and probing, with two 19.69" x 19.69" pallets. It runs a CAT-40 spindle at up to 15,000 RPM, with 29.92" of travel on X, Y, and Z and rapids of 2,362.20 IPM.
Spindle Center to Table Surface: 1.97" to 31.89"
Spindle End to Table Center: 5.31" to 35.24"
Max Load Capacity: 1,100 lbs
Rapid Feedrate (X/Y/Z): 2,362.20 IPM
Jog Feedrates (X/Y/Z): 0.04 to 2,362.20 IPM
Max Tool Diameter: 2.76"
Max Tool Diameter Without Adjacent Tools: 5.91"
Max Tool Length: 11.81"
Max Tool Weight: 22 lbs
Number of Pallets: 2a

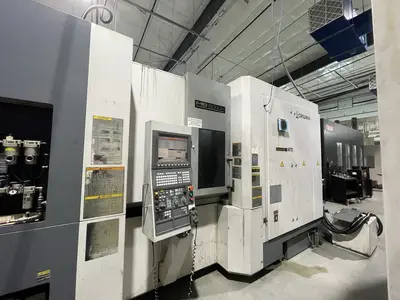

Okuma OSP-P200M Control
High Pressure Thru Spindle Coolant
Probing
Tool Breakage Detection
Chip Conveyor
Transformer
This 2011 Okuma MB-5000H horizontal machining center has a 110-position tool magazine, high pressure through spindle coolant, and probing, with two 19.69" x 19.69" pallets. It runs a CAT-40 spindle at up to 15,000 RPM, with 29.92" of travel on X, Y, and Z and rapids of 2,362.20 IPM.
The Okuma MB-5000H, also searched as Okuma MB5000H, MB 5000H, or MB-5000, is a 500mm horizontal machining center (HMC) with a two-pallet changer.
This 2011 machine has 1.97" to 31.89" from spindle center to table surface and 5.31" to 35.24" from spindle end to table center, with a max load capacity of 1,100 lbs. It takes tools up to 2.76" in diameter (5.91" without adjacent tools), 11.81" long, and 22 lbs, and comes equipped with an Okuma OSP-P200M control, tool breakage detection, a chip conveyor, and a transformer.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 29.92" |
| Y | 29.92" |
| Z | 29.92" |
| Power | 34 hp |
| RPM | 15,000 RPM |
| # ATC | 110 |
| Taper | CAT-40 |
| Pallet-W | 19.69" |
| Pallet-L | 19.69" |
| # Axis | 4 |
| Control | CNC (OKUMA) |
Spindle Center to Table Surface: 1.97" to 31.89"
Spindle End to Table Center: 5.31" to 35.24"
Max Load Capacity: 1,100 lbs
Rapid Feedrate (X/Y/Z): 2,362.20 IPM
Jog Feedrates (X/Y/Z): 0.04 to 2,362.20 IPM
Max Tool Diameter: 2.76"
Max Tool Diameter Without Adjacent Tools: 5.91"
Max Tool Length: 11.81"
Max Tool Weight: 22 lbs
Number of Pallets: 2a
Okuma OSP-P200M Control
High Pressure Thru Spindle Coolant
Probing
Tool Breakage Detection
Chip Conveyor
Transformer
