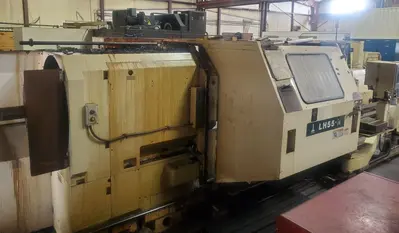

2005 Okuma LH55 CNC Lathe with 12.9" Bar Capacity
Have one to sell?
ConditionUsed
1 available

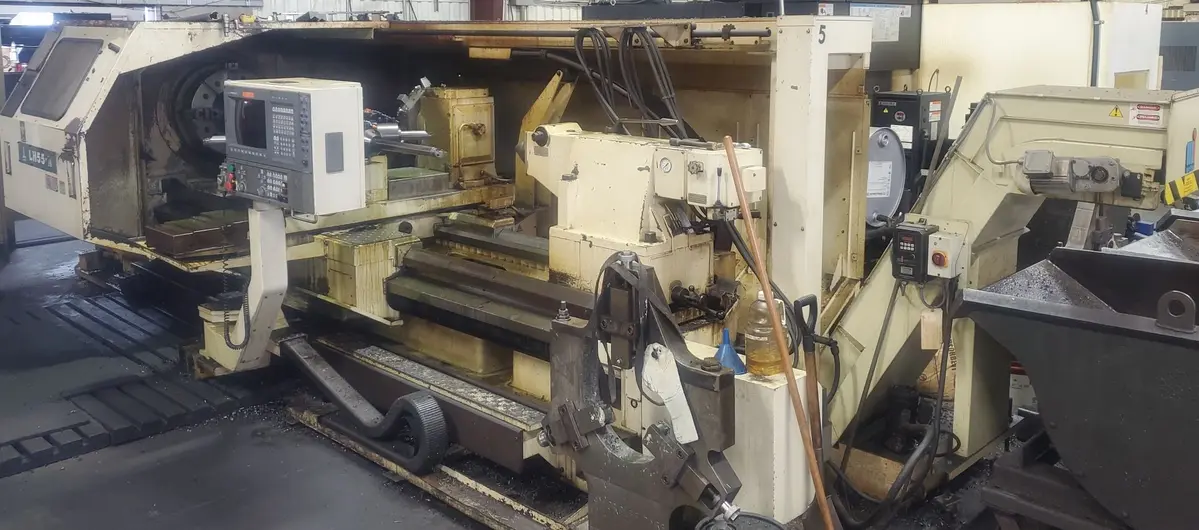

This 2005 Okuma LH55 CNC lathe has a 12.9" bar capacity and two 24" 4-jaw chucks, with 43.31" of swing over a 118" machining length. Its 60 HP spindle runs up to 500 RPM, with an 8-station turret, a tailstock, a steady rest, and a 22.17" max turning diameter.
X Axis Travel: 26.57"
Z Axis Travel: 118"
Rapid Rate X Axis: 360 IPM
Rapid Rate Z Axis: 394 IPM
Turret: 8 Station
Approximate Dimensions: 358" x 86" x 80"
Approximate Weight: 31,900 lbs

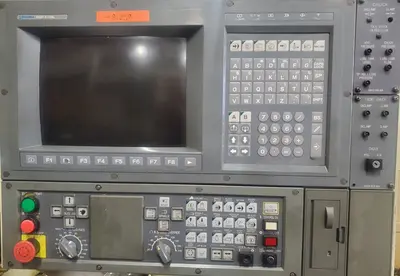

Okuma OSP-E100L Control
2x 24" 4 Jaw Nobel Chucks
Steady Rest
Chip Conveyor
This 2005 Okuma LH55 CNC lathe has a 12.9" bar capacity and two 24" 4-jaw chucks, with 43.31" of swing over a 118" machining length. Its 60 HP spindle runs up to 500 RPM, with an 8-station turret, a tailstock, a steady rest, and a 22.17" max turning diameter.
The Okuma LH55, also searched as Okuma LH-55, LH 55, or LH55-N, is a big bore CNC turning center (large hollow spindle lathe).
This 2005 machine has 26.57" of X-axis and 118" of Z-axis travel, with rapid rates of 360 IPM on X and 394 IPM on Z. It comes equipped with an Okuma OSP-E100L control and a chip conveyor, with approximate dimensions of 358" x 86" x 80" and an approximate weight of 31,900 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 43.31" |
| Machining Length | 118" |
| # Axis | 2 |
| Chuck Size | 24" |
| Bar Capacity | 12.9" |
| Power | 60 hp |
| Max RPM | 500 RPM |
| Turning Dia | 22.17" |
| Tailstock | Yes |
| Control | CNC (OKUMA) |
X Axis Travel: 26.57"
Z Axis Travel: 118"
Rapid Rate X Axis: 360 IPM
Rapid Rate Z Axis: 394 IPM
Turret: 8 Station
Approximate Dimensions: 358" x 86" x 80"
Approximate Weight: 31,900 lbs
Okuma OSP-E100L Control
2x 24" 4 Jaw Nobel Chucks
Steady Rest
Chip Conveyor
