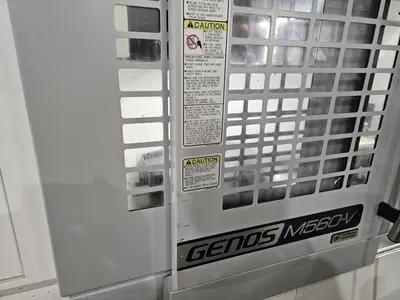

2022 Okuma Genos M560-V Vertical Machining Center with 4th Axis

Vertical Machining Centers
Manufacturer:
OKUMA
Model:
GENOS M560-V
Year:
2022
Stock #:
X3X5068

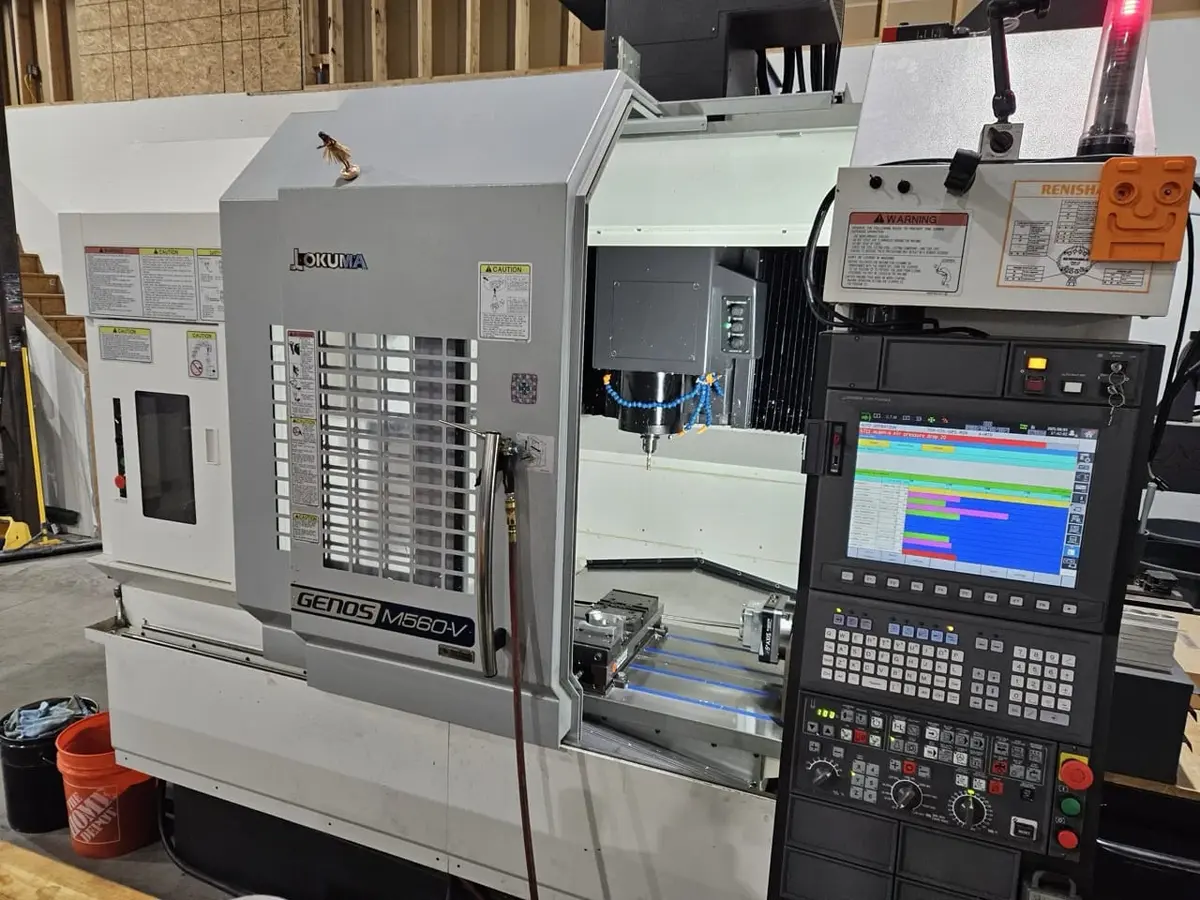

This 2022 Okuma Genos M560-V vertical machining center comes equipped with a 4th axis, coolant through spindle, probes, and a chip conveyor. It runs a 15,000 RPM CAT-40 Big Plus spindle with 30 HP and a 32-tool ATC, with 41.34" x 22.05" x 18.11" of travel over a 51.18" x 22.05" table.
<p>The Okuma Genos M560-V, also searched as Okuma Genos M560V, M560-V, M560V, or Genos M560, is a vertical machining center (VMC, CNC mill).</p> <p>This 2022 machine has rapid rates of 1,575 IPM on X and Y and 1,260 IPM on Z, with an approximate max table load of 1,980 lbs. Approximate dimensions are 122" x 99" x 108", with an approximate weight of 17,000 lbs.</p> <p>All specifications are approximate, provided by the seller, and subject to buyer verification.</p>
X41.34"1,050 mm
Y22.05"560.07 mm
Z18.11"459.99 mm
Power30 hp22.4 kW
RPM15,000 RPM15,000 RPM
# ATC3232
TaperCAT 40CAT 40
Table-W22.05"560.07 mm
Table-L51.18"1,300 mm
# Axis44
ControlCNC (OKUMA)CNC (OKUMA)

Rapid Traverse X/Y: 1,575 IPM
Rapid Traverse Z: 1,260 IPM
Approximate Max Table Load: 1,980 lbs
Approximate Dimensions: 122" x 99" x 108"
Approximate Weight: 17,000 lbs
Electrical Requirements: 220/480V, 3 Phase, 60Hz

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

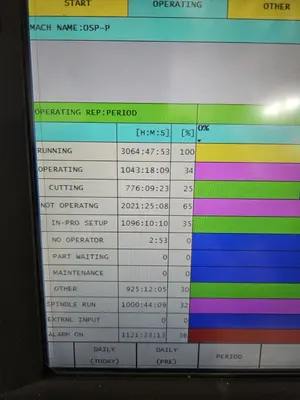

Okuma OSP-300A Control

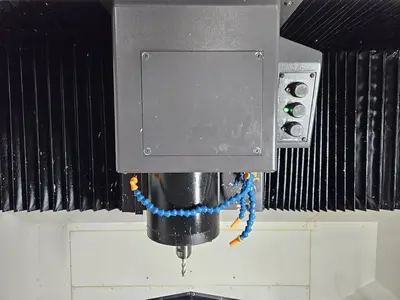

Big Plus Spindle

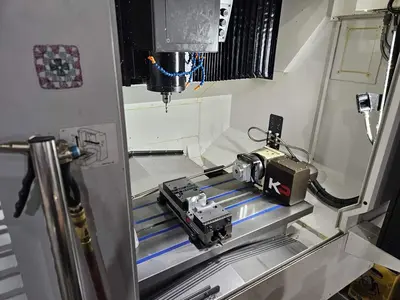

4th Axis
Coolant Through Spindle
Probes

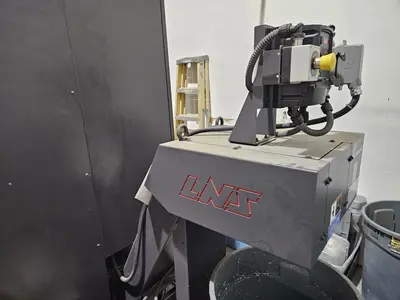

Chip Conveyor
