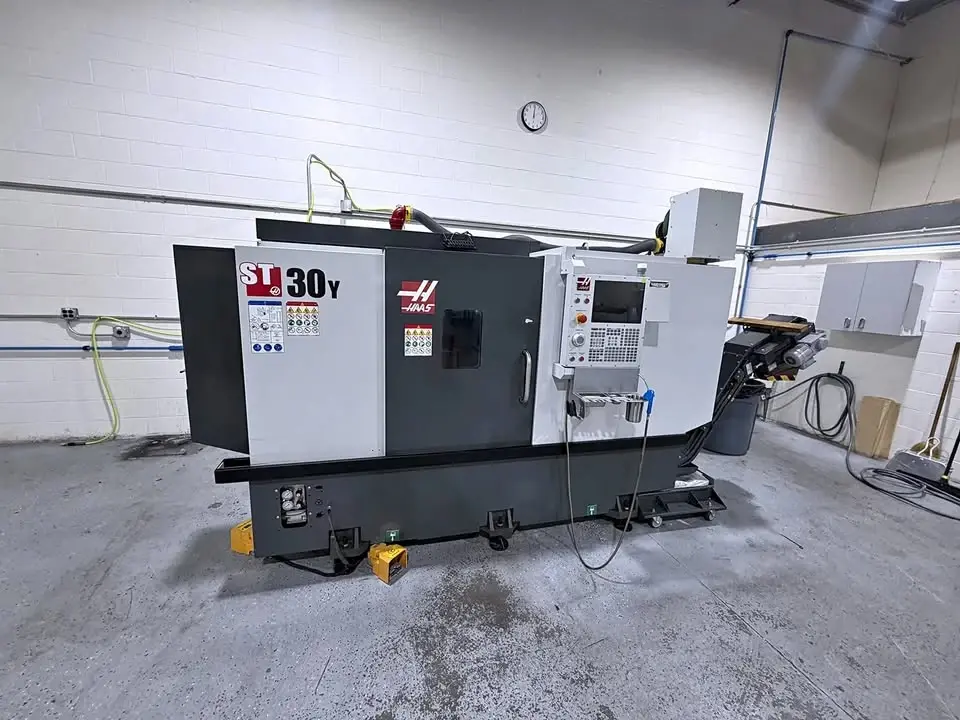

2022 Haas ST-30Y CNC Lathe with High Pressure Coolant
Have one to sell?
ConditionUsed
1 available

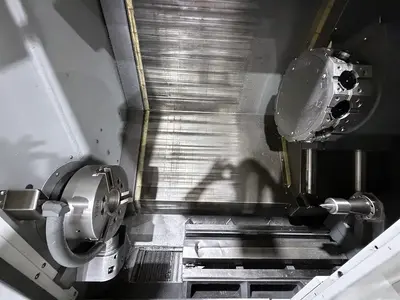

This 2022 Haas ST-30Y CNC lathe has Y-axis live tooling with a full C-axis, a 12-station BMT65 turret, and a high pressure coolant system. It runs a 10" hydraulic chuck with 30 HP and 3,400 RPM, with 21" of swing, 32.5" of machining length, and 3" of bar capacity.
X-Axis Travel: 9.4"
Y-Axis Travel: ±2" (4" Total)
Z-Axis Travel: 32.5"
Rapid Traverse X: 472 IPM
Rapid Traverse Y: 472 IPM
Rapid Traverse Z: 945 IPM
Max Spindle Torque: 300 ft-lb @ 500 RPM
Spindle Nose: A2-6
Spindle Bore: 3.5"
C-Axis: Full Interpolated C-Axis
C-Axis Positioning: ±0.01°
Turret: 12-Station BMT65
Live Tooling Speed: 4,000 RPM
Coolant Capacity: 55 Gallons
Approximate Weight: 11,340 lbs
Electrical: 220V / 3 Phase / 50-60 Hz
Full Load: 70 Amps

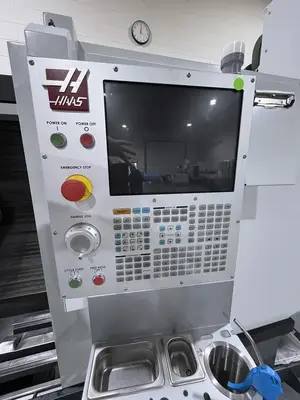

Haas Next Generation Control
Hydraulic Chuck
Y-Axis
High Pressure Coolant System
Rigid Tapping

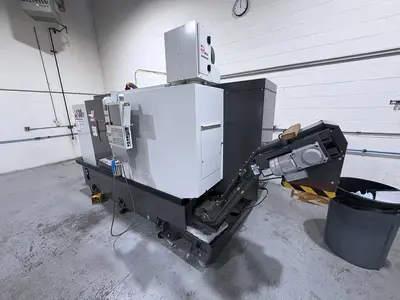

Chip Conveyor
This 2022 Haas ST-30Y CNC lathe has Y-axis live tooling with a full C-axis, a 12-station BMT65 turret, and a high pressure coolant system. It runs a 10" hydraulic chuck with 30 HP and 3,400 RPM, with 21" of swing, 32.5" of machining length, and 3" of bar capacity.
The Haas ST-30Y, also searched as Haas ST30Y, ST 30Y, or ST-30, is a CNC turning center with Y-axis live tooling (mill-turn).
This 2022 machine has 9.4" of X-axis travel, ±2" of Y-axis travel, and 32.5" of Z-axis travel, with rapids of 472 IPM on X and Y and 945 IPM on Z. It also has 300 ft-lb of spindle torque at 500 RPM, an A2-6 spindle nose with a 3.5" bore, rigid tapping, a chip conveyor, and a 55 gallon coolant tank, with an approximate weight of 11,340 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 21" |
| Machining Length | 32.5" |
| # Axis | 4 |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Power | 30 hp |
| Max RPM | 3,400 RPM |
| Turning Dia | 13.75" |
| Tailstock | Yes |
| Live Tooling | Yes |
| Control | CNC (HAAS) |
X-Axis Travel: 9.4"
Y-Axis Travel: ±2" (4" Total)
Z-Axis Travel: 32.5"
Rapid Traverse X: 472 IPM
Rapid Traverse Y: 472 IPM
Rapid Traverse Z: 945 IPM
Max Spindle Torque: 300 ft-lb @ 500 RPM
Spindle Nose: A2-6
Spindle Bore: 3.5"
C-Axis: Full Interpolated C-Axis
C-Axis Positioning: ±0.01°
Turret: 12-Station BMT65
Live Tooling Speed: 4,000 RPM
Coolant Capacity: 55 Gallons
Approximate Weight: 11,340 lbs
Electrical: 220V / 3 Phase / 50-60 Hz
Full Load: 70 Amps
Haas Next Generation Control
Hydraulic Chuck
Y-Axis
High Pressure Coolant System
Rigid Tapping
Chip Conveyor
