2013 Haas GR-510 CNC Gantry Router
Have one to sell?
ConditionUsed
1 available

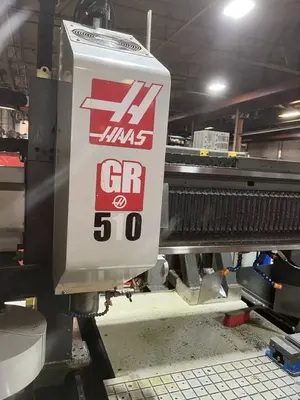

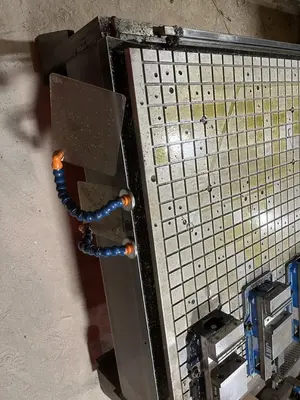

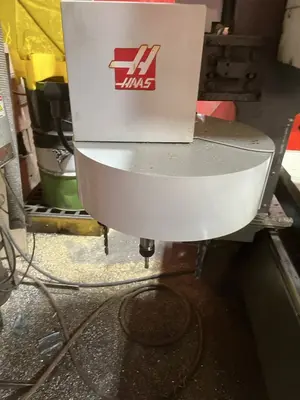

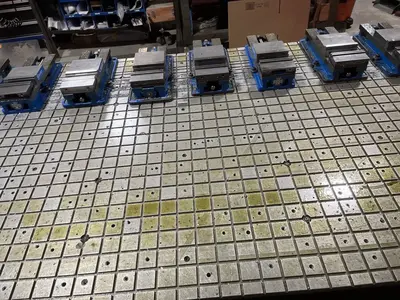

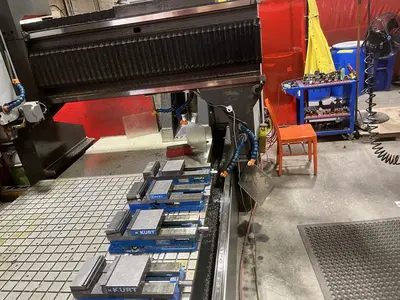

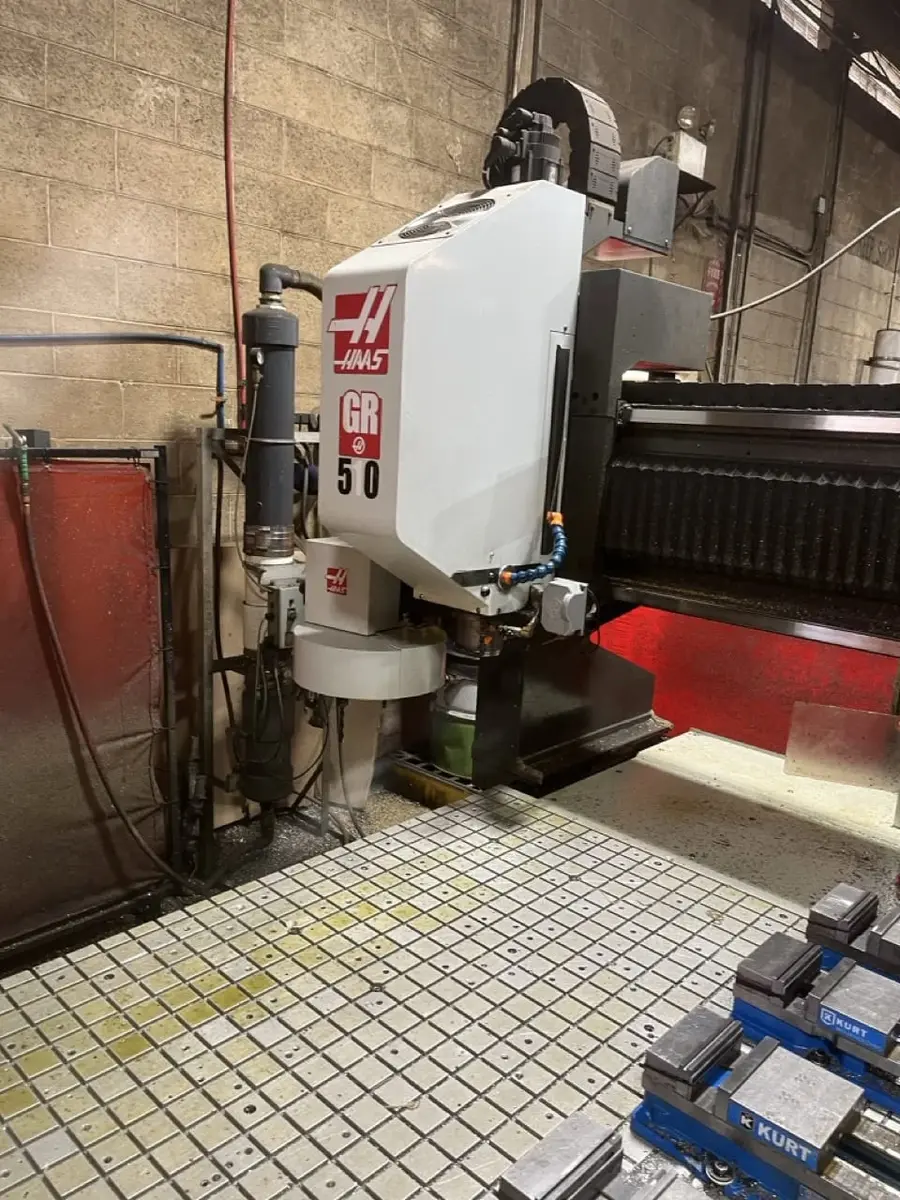

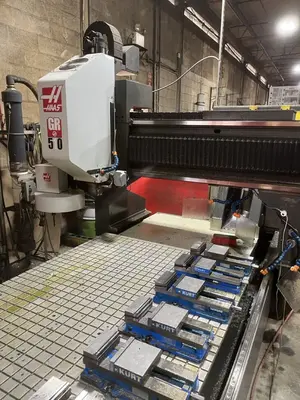

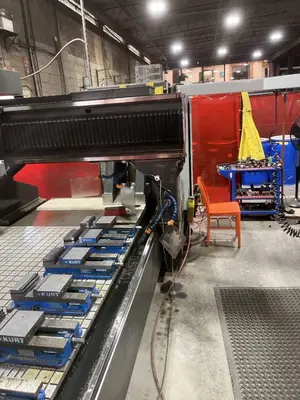

This 2013 Haas GR-510 CNC gantry router has a 4' x 10' gridded fixture table with 121" of X-axis travel, 61" of Y-axis travel, and 11" of Z-axis travel. It runs a 15 HP belt drive spindle with a carousel automatic tool changer and a coolant system, on a Haas Classic CNC control.
Number of Axes: 3
Distance Between Columns: 62"
Max Table Load: 6,000 lbs Evenly Distributed
Max Cutting Feed Rate: 800 IPM
Rapid Traverse Y: 2,100 IPM
Rapid Traverse Z: 1,100 IPM
Spindle Drive: Belt Drive
Air Requirements: 4 SCFM at 100 PSI
Haas Classic CNC Control
Carousel Automatic Tool Changer
Gridded Fixture Table
Coolant System
Adjustable Coolant Nozzles
Traveling Chip and Coolant Guard
This 2013 Haas GR-510 CNC gantry router has a 4' x 10' gridded fixture table with 121" of X-axis travel, 61" of Y-axis travel, and 11" of Z-axis travel. It runs a 15 HP belt drive spindle with a carousel automatic tool changer and a coolant system, on a Haas Classic CNC control.
The Haas GR-510, also searched as Haas GR510 or GR 510, is a CNC gantry router (gantry mill, 3-axis router).
This 2013 machine has 62" between columns and a max table load of 6,000 lbs evenly distributed, with an 800 IPM max cutting feed rate and rapid rates of 2,100 IPM on Y and 1,100 IPM on Z. It also comes with adjustable coolant nozzles and a traveling chip and coolant guard.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 121" |
| Y | 61" |
| Z | 11" |
| Power | 15 hp |
| RPM | 8,100 RPM |
| Taper | 40 |
| Table-W | 48" |
| Table-L | 120" |
| Control | CNC (HAAS) |
Number of Axes: 3
Distance Between Columns: 62"
Max Table Load: 6,000 lbs Evenly Distributed
Max Cutting Feed Rate: 800 IPM
Rapid Traverse Y: 2,100 IPM
Rapid Traverse Z: 1,100 IPM
Spindle Drive: Belt Drive
Air Requirements: 4 SCFM at 100 PSI
Haas Classic CNC Control
Carousel Automatic Tool Changer
Gridded Fixture Table
Coolant System
Adjustable Coolant Nozzles
Traveling Chip and Coolant Guard
