Smart Machine Tool SV-2 Vertical Machining Center with TSC
Have one to sell?
ConditionUsed
1 available

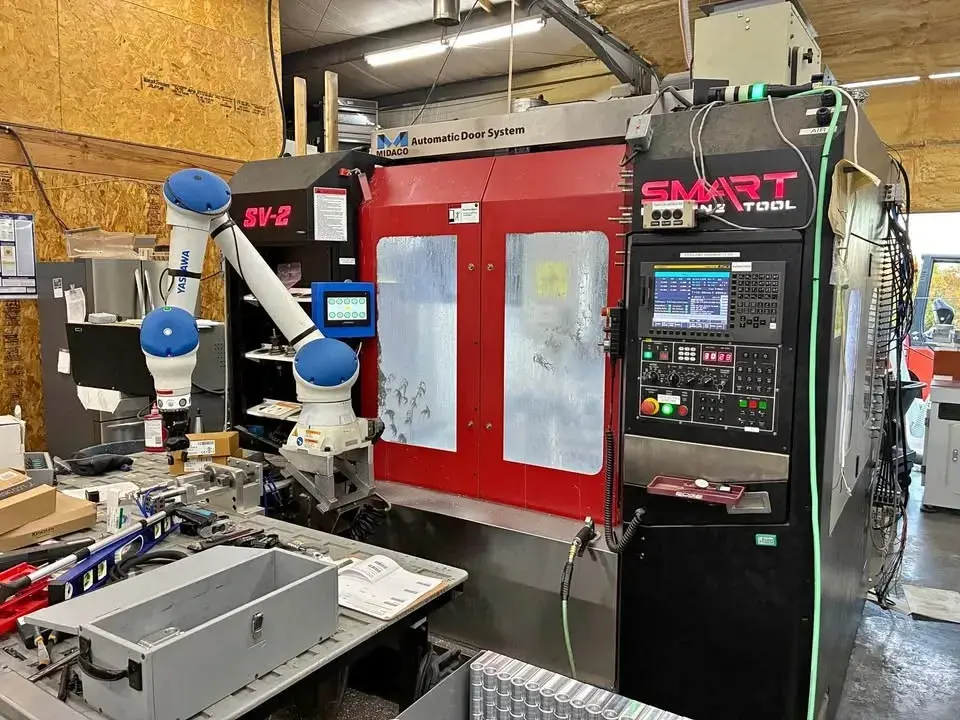

This Smart Machine Tool SV-2 vertical machining center pairs through spindle coolant and a spindle chiller with a 12,000 RPM CAT 40 Big Plus spindle and a 30-tool double arm ATC. A Fanuc 0i-MF Plus control with Manual Guide i runs the machine, which comes with a lift-up chip conveyor, a Midaco servo auto door, and 10 pneumatic self-centering vises.

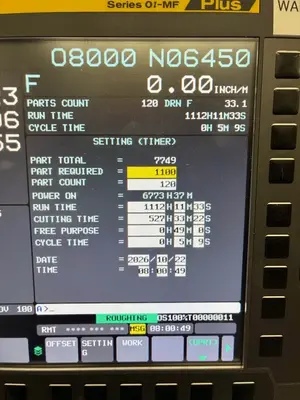

Fanuc 0i-MF Plus Control
Manual Guide i
Big Plus Spindle

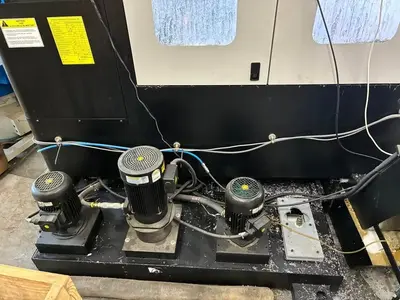

Through Spindle Coolant (TSC)
Spindle Chiller
Double Arm Tool Changer
Rigid Tapping
Coolant Bed Flush
Full Enclosed Splash Guard

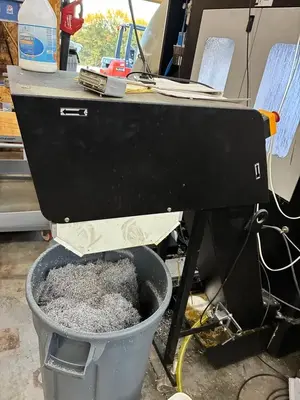

Lift-Up Chip Conveyor
Renishaw Receiver and GUI Software
4th Axis Preparation
Coolant/Air Gun
Midaco Servo Auto Door

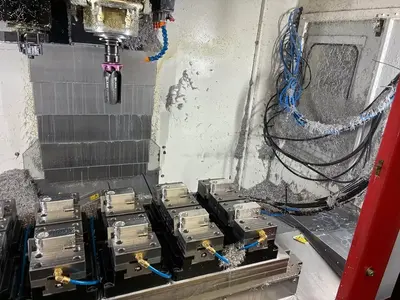

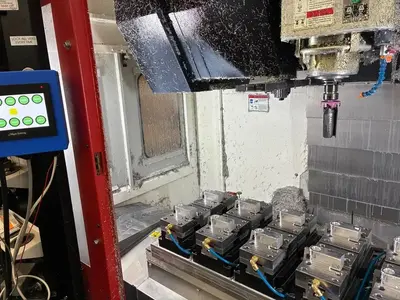

10 Pneumatic Self-Centering Vises
This Smart Machine Tool SV-2 vertical machining center pairs through spindle coolant and a spindle chiller with a 12,000 RPM CAT 40 Big Plus spindle and a 30-tool double arm ATC. A Fanuc 0i-MF Plus control with Manual Guide i runs the machine, which comes with a lift-up chip conveyor, a Midaco servo auto door, and 10 pneumatic self-centering vises.
The Smart Machine Tool SV-2, also searched as Smart SV-2, Smart SV2, or Smart SV 2, is a 3-axis vertical machining center (VMC).
It also comes equipped with rigid tapping, coolant bed flush, a full enclosed splash guard, a Renishaw receiver with GUI software, 4th axis preparation, and a coolant/air gun.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 27.6" |
| Y | 17.7" |
| Z | 19.7" |
| Power | 25 hp |
| RPM | 12,000 RPM |
| # ATC | 30 |
| Taper | CT-40 |
| Table-W | 17.72" |
| Table-L | 31.5" |
| # Axis | 3 |
| Control | CNC (Fanuc) |
Fanuc 0i-MF Plus Control
Manual Guide i
Big Plus Spindle
Through Spindle Coolant (TSC)
Spindle Chiller
Double Arm Tool Changer
Rigid Tapping
Coolant Bed Flush
Full Enclosed Splash Guard
Lift-Up Chip Conveyor
Renishaw Receiver and GUI Software
4th Axis Preparation
Coolant/Air Gun
Midaco Servo Auto Door
10 Pneumatic Self-Centering Vises
