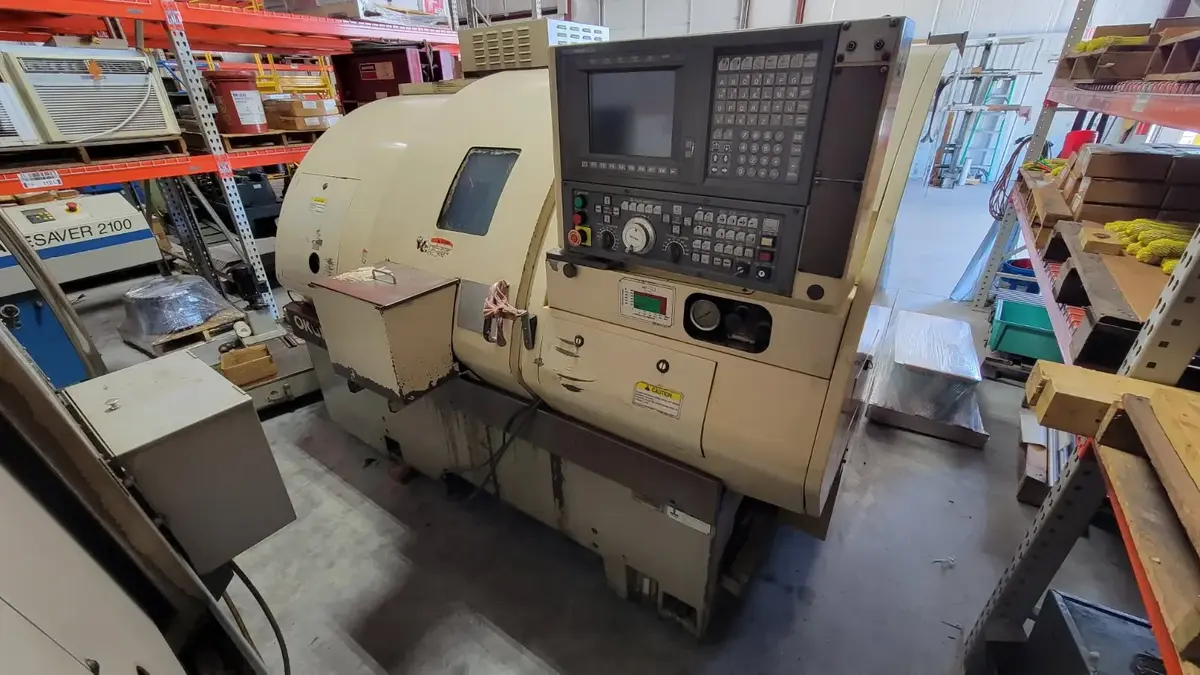

1998 Okuma Crown L1060 BB CNC Lathe with Bar Feeder
Have one to sell?
ConditionUsed
1 available
This 1998 Okuma Crown L1060 BB CNC lathe has 21.65" of swing over the bed, a 10.63" max turning diameter, and 19.68" of max turning length. A 20 HP spindle runs from 65 to 3,500 RPM through an A2-8 spindle nose with a 3.15" spindle bore, with tooling on a 12-station turret.
Swing Over Saddle: 15.75"
Spindle Nose: A2-8
Spindle Bore: 3.15"
Turret: 12 Stations
X-Axis Travel: 7.28"
Z-Axis Travel: 20.47"
Rapid Traverse (X/Z): 590/787 IPM
Electrical: 480/220V, 3 Phase, 60 Hz
Approximate Floor Space: 104" x 69"
Approximate Weight: 10,000 lbs

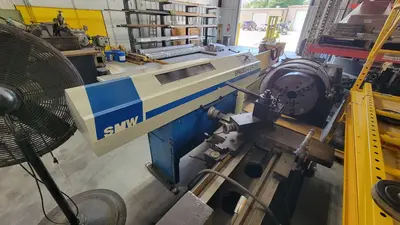

SMW Spacesaver 2100 Bar Feeder
Bar Feed Interface
Parts Catcher
This 1998 Okuma Crown L1060 BB CNC lathe has 21.65" of swing over the bed, a 10.63" max turning diameter, and 19.68" of max turning length. A 20 HP spindle runs from 65 to 3,500 RPM through an A2-8 spindle nose with a 3.15" spindle bore, with tooling on a 12-station turret.
The Okuma Crown L1060 BB, also searched as Okuma Crown L-1060, Crown L1060, Crown 762S-BB, or Crown 762SBB, is a 2-axis CNC turning center.
This 1998 machine has 7.28" of X-axis travel and 20.47" of Z-axis travel, with rapid rates of 590 IPM on X and 787 IPM on Z. It has 15.75" of swing over the saddle, with approximate floor space of 104" x 69" and an approximate weight of 10,000 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 21.65" |
| Machining Length | 19.68" |
| # Axis | 2 |
| Power | 20 hp |
| Max RPM | 3,500 RPM |
| Turning Dia | 10.63" |
| Tailstock | Yes |
| Control | CNC (OKUMA) |
Swing Over Saddle: 15.75"
Spindle Nose: A2-8
Spindle Bore: 3.15"
Turret: 12 Stations
X-Axis Travel: 7.28"
Z-Axis Travel: 20.47"
Rapid Traverse (X/Z): 590/787 IPM
Electrical: 480/220V, 3 Phase, 60 Hz
Approximate Floor Space: 104" x 69"
Approximate Weight: 10,000 lbs
SMW Spacesaver 2100 Bar Feeder
Bar Feed Interface
Parts Catcher
