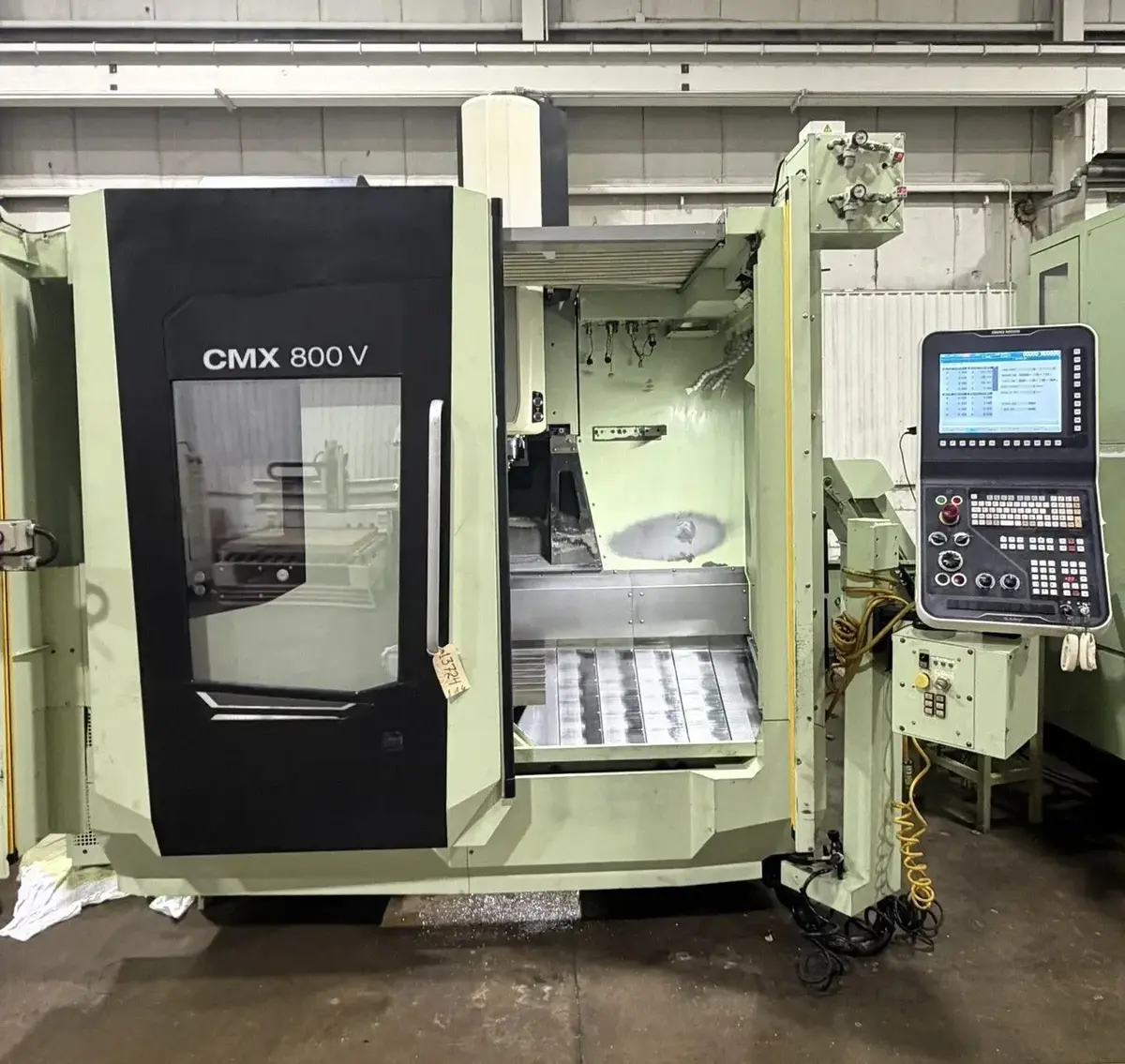

2018 DMG Mori CMX 800V Vertical Machining Center with 20,000 RPM
Have one to sell?
ConditionUsed
1 available

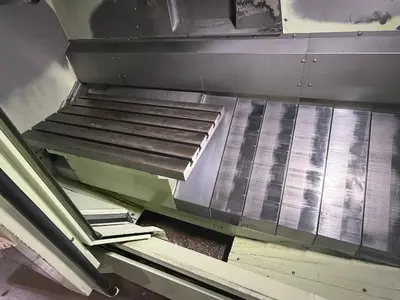

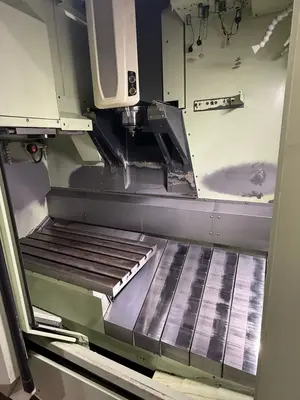

This 2018 DMG Mori CMX 800V vertical machining center runs a 20,000 RPM BT40 Big Plus spindle with high pressure coolant, a spindle chiller, and a 30-tool ATC, and is 4th axis ready, with approximately 5,859 cutting hours. It has 31.5" x 22.05" x 20.08" of travel over a 43.31" x 22.05" table, with 25 HP and a 1,764 lb table load.
Max Table Load: 1,764 lbs
Spindle Nose to Table: 12.6" to 32.68"
Spindle Power Rating: 25 HP (30 Min.)
Rapid Traverse (X, Y, Z): 1,181 IPM
Cutting Feedrate (X, Y, Z): 787 IPM
Tool Selection: Memory Random
Max Tool Weight: 17.64 lbs
Max Tool Diameter (Adjacent Pockets Full): 3.15"
Max Tool Diameter (Adjacent Pockets Empty): 4.92"
Max Tool Length: 11.81"

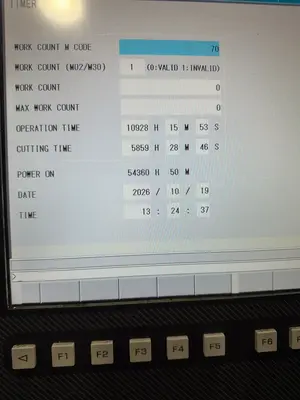

Approximately 5,859 Cutting Hours
Approximate Floor Space: 95.52" x 108.54"
Approximate Weight: 12,500 lbs

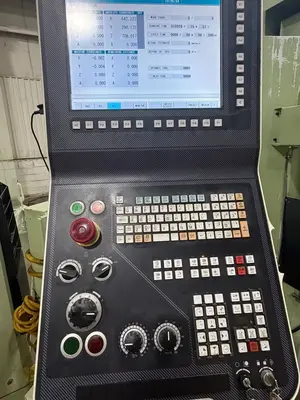

Fanuc 0i-MF Control

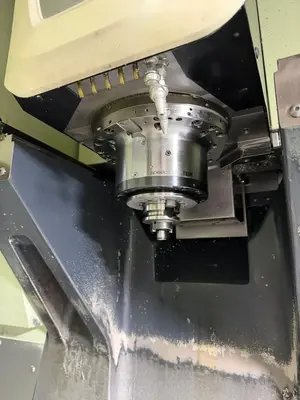

Big Plus Spindle (BBT40)
4th Axis Ready (Drive and Wiring)

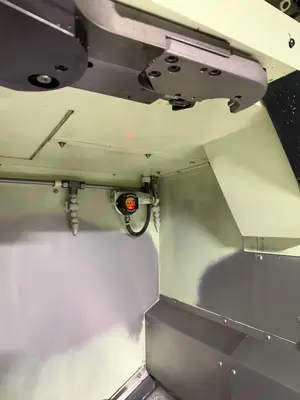

Renishaw Probe Receiver

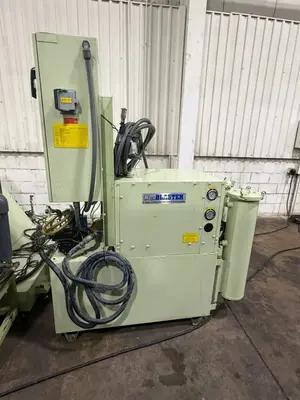

High Pressure Coolant

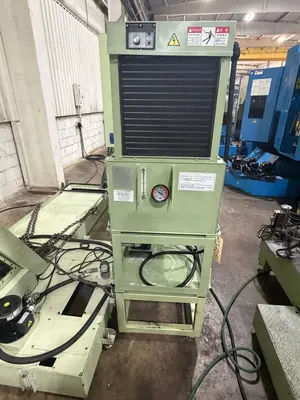

Spindle Chiller

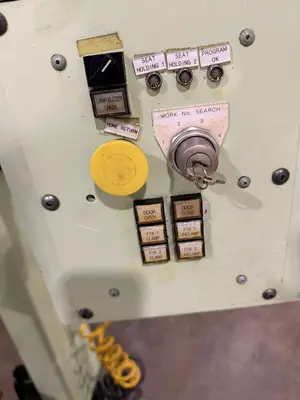

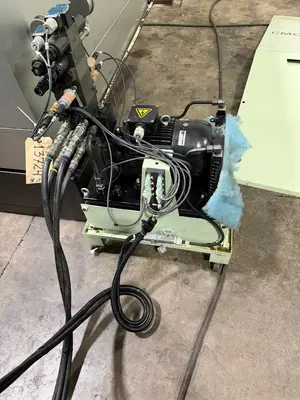

Hydraulic Clamping
Auto Door
High Column (7.87" Riser)

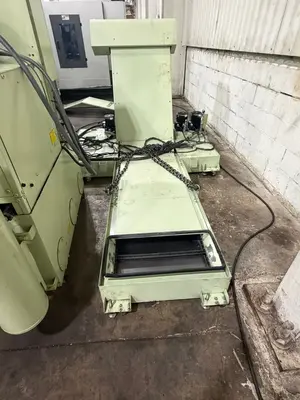

Chip Conveyor

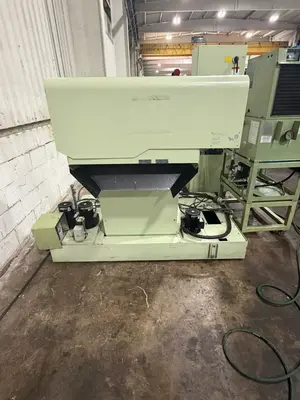

Coolant System
This 2018 DMG Mori CMX 800V vertical machining center runs a 20,000 RPM BT40 Big Plus spindle with high pressure coolant, a spindle chiller, and a 30-tool ATC, and is 4th axis ready, with approximately 5,859 cutting hours. It has 31.5" x 22.05" x 20.08" of travel over a 43.31" x 22.05" table, with 25 HP and a 1,764 lb table load.
The DMG Mori CMX 800V, also searched as DMG Mori CMX800V, CMX 800 V, or CMX 800, is a 3-axis vertical machining center (VMC).
This 2018 machine has 1,181 IPM rapids and 787 IPM cutting feedrates on X, Y, and Z, with 12.6" to 32.68" from spindle nose to table on a high column. It runs a Fanuc 0i-MF control and comes equipped with a Renishaw probe receiver, hydraulic clamping, auto door, and chip conveyor, with an approximate floor space of 95.52" x 108.54" and an approximate weight of 12,500 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 31.5" |
| Y | 22.05" |
| Z | 20.08" |
| Power | 25 hp |
| RPM | 20,000 RPM |
| # ATC | 30 |
| Taper | BT-40 |
| Table-W | 22.05" |
| Table-L | 43.31" |
| # Axis | 3 |
| Control | CNC (Fanuc) |
Max Table Load: 1,764 lbs
Spindle Nose to Table: 12.6" to 32.68"
Spindle Power Rating: 25 HP (30 Min.)
Rapid Traverse (X, Y, Z): 1,181 IPM
Cutting Feedrate (X, Y, Z): 787 IPM
Tool Selection: Memory Random
Max Tool Weight: 17.64 lbs
Max Tool Diameter (Adjacent Pockets Full): 3.15"
Max Tool Diameter (Adjacent Pockets Empty): 4.92"
Max Tool Length: 11.81"
Approximately 5,859 Cutting Hours
Approximate Floor Space: 95.52" x 108.54"
Approximate Weight: 12,500 lbs
Fanuc 0i-MF Control
Big Plus Spindle (BBT40)
4th Axis Ready (Drive and Wiring)
Renishaw Probe Receiver
High Pressure Coolant
Spindle Chiller
Hydraulic Clamping
Auto Door
High Column (7.87" Riser)
Chip Conveyor
Coolant System
