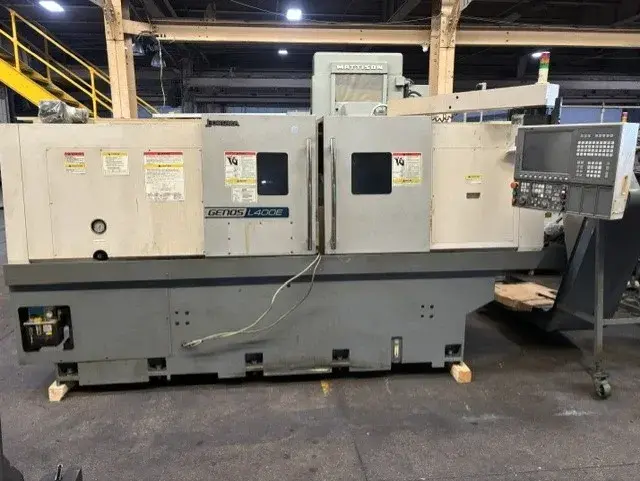

2012 Okuma Genos L400E CNC Lathe
Have one to sell?
ConditionUsed
1 available
This 2012 Okuma Genos L400E CNC lathe comes with both a 10" 3-jaw hydraulic chuck and a 10" 6-jaw chuck, plus a tailstock, touch setter, and 12-position turret. It has 20.47" of swing, a 12.99" max turning diameter, 43.3" max turning length, a 3.14" spindle through hole, and a 20 HP spindle running up to 3,000 RPM.
Swing Over Carriage: 17.71"
Swing Over Cross Slide: 19.69"
Spindle Nose: A2-8
Spindle Through Hole: 3.14"
X-Axis Travel: 9.05"
Z-Axis Travel: 45.03"

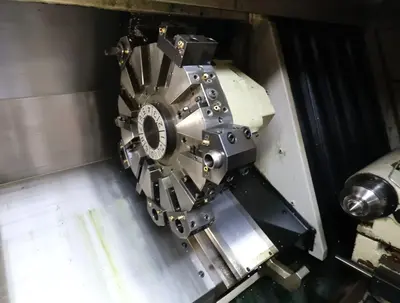

Turret Positions: 12
OD Tool Size: 1"
ID Tool Size: 1.5"

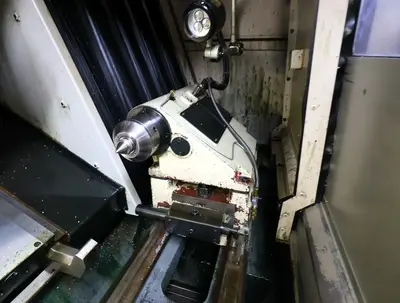

Tailstock Spindle Diameter: 3.54"
Tailstock Spindle Taper: MT#4
Tailstock Spindle Travel: 3.93"
Spindle Drive Motor: 20/15 HP
Approximate Weight: 14,200 lbs
Okuma OSP-P200L-R Control
Touch Setter

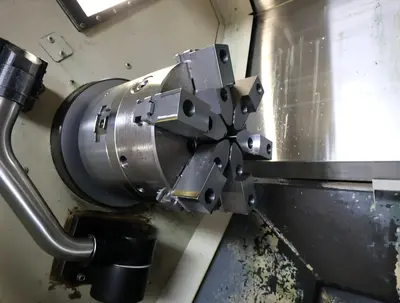

10" 3-Jaw Hydraulic Chuck
10" 6-Jaw Chuck
Chip Conveyor
All Available Toolholders
This 2012 Okuma Genos L400E CNC lathe comes with both a 10" 3-jaw hydraulic chuck and a 10" 6-jaw chuck, plus a tailstock, touch setter, and 12-position turret. It has 20.47" of swing, a 12.99" max turning diameter, 43.3" max turning length, a 3.14" spindle through hole, and a 20 HP spindle running up to 3,000 RPM.
The Okuma Genos L400E, also searched as Okuma Genos L400, Genos L400-E, or L400E, is a 2-axis CNC turning center.
This 2012 machine has 9.05" of X-axis travel and 45.03" of Z-axis travel, 17.71" of swing over the carriage, and an A2-8 spindle nose. Its 12-position turret takes 1" OD and 1.5" ID tooling, and the tailstock has a 3.54" spindle with an MT#4 taper and 3.93" of travel. It comes equipped with a touch setter, chip conveyor, and all available toolholders, with an approximate weight of 14,200 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 20.47" |
| Machining Length | 43.31" |
| # Axis | 2 |
| Chuck Size | 10" |
| Bar Capacity | 2.75" |
| Power | 20 hp |
| Max RPM | 3,000 RPM |
| Turning Dia | 12.99" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (OKUMA) |
Swing Over Carriage: 17.71"
Swing Over Cross Slide: 19.69"
Spindle Nose: A2-8
Spindle Through Hole: 3.14"
X-Axis Travel: 9.05"
Z-Axis Travel: 45.03"
Turret Positions: 12
OD Tool Size: 1"
ID Tool Size: 1.5"
Tailstock Spindle Diameter: 3.54"
Tailstock Spindle Taper: MT#4
Tailstock Spindle Travel: 3.93"
Spindle Drive Motor: 20/15 HP
Approximate Weight: 14,200 lbs
Okuma OSP-P200L-R Control
Touch Setter
10" 3-Jaw Hydraulic Chuck
10" 6-Jaw Chuck
Chip Conveyor
All Available Toolholders
