2012 Quaser MK 603 Vertical Machining Center
Have one to sell?
ConditionUsed
1 available

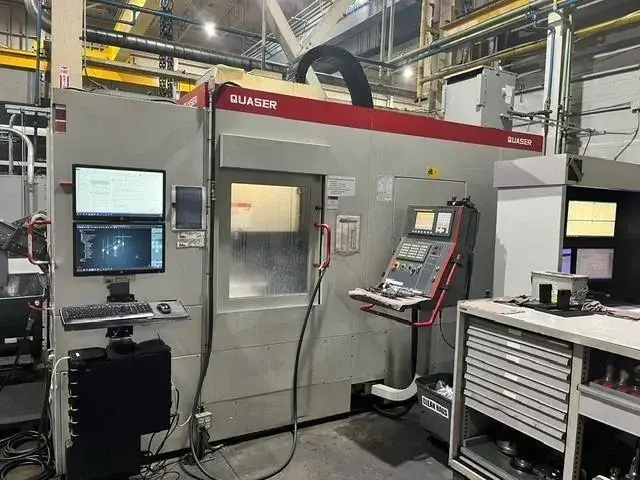

This 2012 Quaser MK 603 is a twin-pallet vertical machining center with two 41.3" x 21.6" pallets, a 48-tool ATC, and through spindle coolant. It has 40.1" x 24" x 23.6" of travel and a 30 HP, 12,000 RPM CAT 40 Big Plus spindle, run by a Fanuc 0i-MD control.
Max Table Load: 660 lbs
Max Spindle to Table: 28.7"
Feedrate (X, Y, Z): 787 IPM
Rapid Traverse (X, Y, Z): 1,260 IPM
Tool Change Time: 2.5 sec Tool to Tool, 6 sec Chip to Chip
Approximate Dimensions: 113" x 191" x 130"

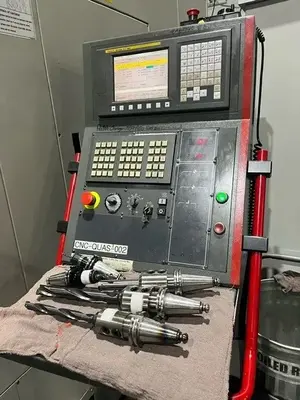

Fanuc 0i-MD Control
2 Pallets
Big Plus Spindle
Through Spindle Coolant
This 2012 Quaser MK 603 is a twin-pallet vertical machining center with two 41.3" x 21.6" pallets, a 48-tool ATC, and through spindle coolant. It has 40.1" x 24" x 23.6" of travel and a 30 HP, 12,000 RPM CAT 40 Big Plus spindle, run by a Fanuc 0i-MD control.
The Quaser MK 603, also searched as Quaser MK603 or MK-603, is a twin-pallet vertical machining center (VMC).
This 2012 machine has rapids of 1,260 IPM and feedrates of 787 IPM on X, Y, and Z, a 660 lb max table load, 28.7" max spindle to table, and a tool change time of 2.5 seconds tool to tool (6 seconds chip to chip). Approximate dimensions are 113" x 191" x 130".
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 40.1" |
| Y | 24" |
| Z | 23.6" |
| Power | 30 hp |
| RPM | 12,000 RPM |
| # ATC | 48 |
| Taper | CT-40 |
| Table-W | 21.6" |
| Table-L | 41.3" |
| # Axis | 3 |
| Control | CNC (Fanuc) |
Max Table Load: 660 lbs
Max Spindle to Table: 28.7"
Feedrate (X, Y, Z): 787 IPM
Rapid Traverse (X, Y, Z): 1,260 IPM
Tool Change Time: 2.5 sec Tool to Tool, 6 sec Chip to Chip
Approximate Dimensions: 113" x 191" x 130"
Fanuc 0i-MD Control
2 Pallets
Big Plus Spindle
Through Spindle Coolant
