2022 Bodor P3 12kW Fiber Laser Cutter
Have one to sell?
ConditionUsed
1 available

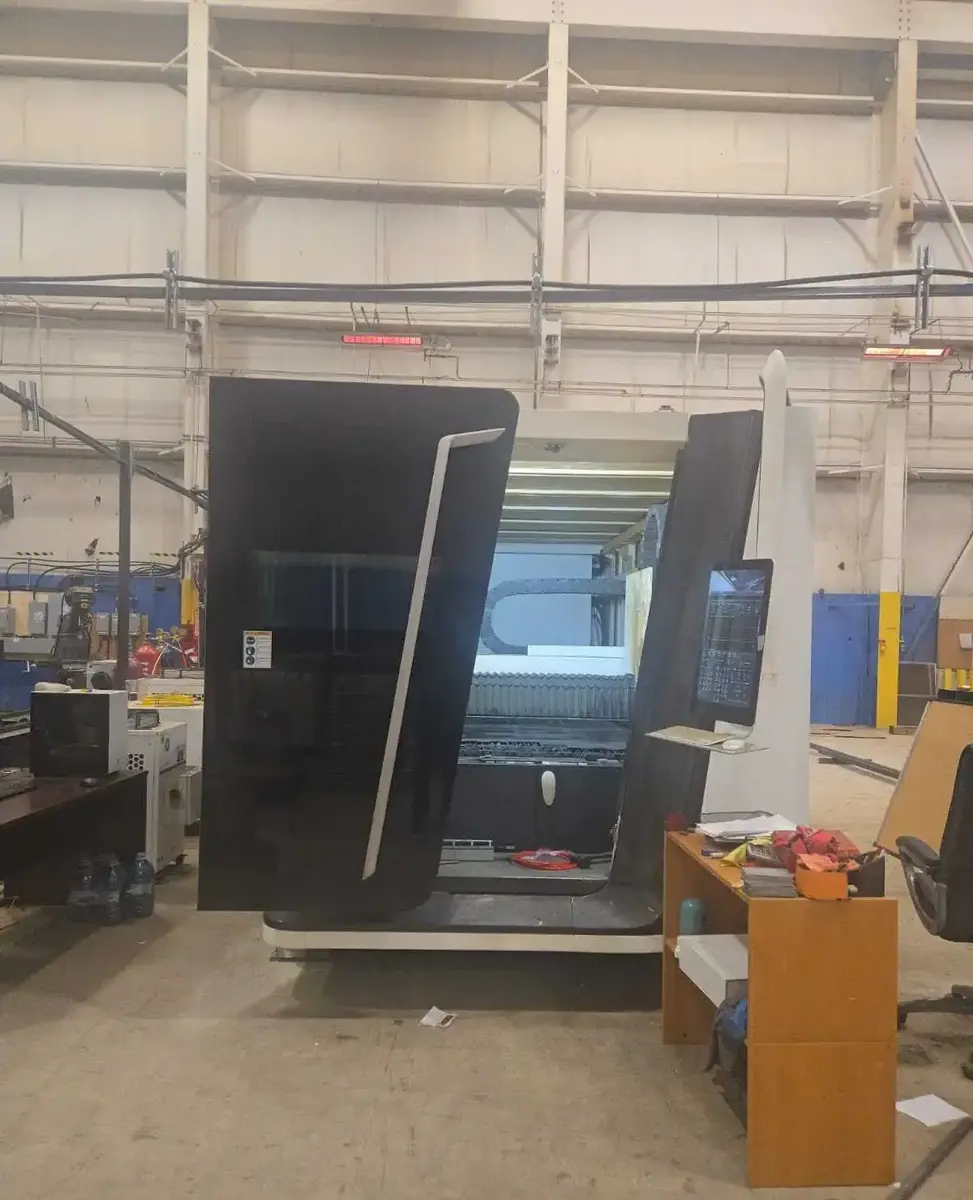

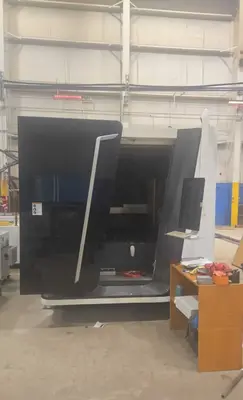

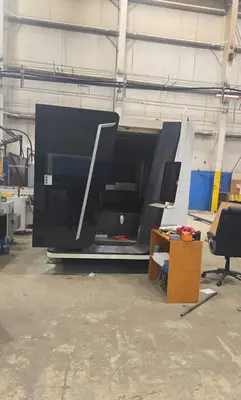

This 2022 Bodor P3 fiber laser cutter runs a 12,000 W source over a 60" x 120" sheet capacity, with a fully enclosed body and two automatic shuttle tables. It reaches 7,874 IPM with up to 4.0G acceleration and 13.78" of Z travel, running BodorThinker CNC software with BodorNest nesting.
Max Linkage Speed: 7,874 IPM
Max Acceleration: 4.0G
Shuttle Tables: 2 (Automatic Pallet Changer)
Table Max Load: 3,200 lbs
Approximate Dimensions: 348" x 88.1" x 99.2"
Fully Enclosed Design
BodorThinker CNC Software
BodorNest Nesting Software

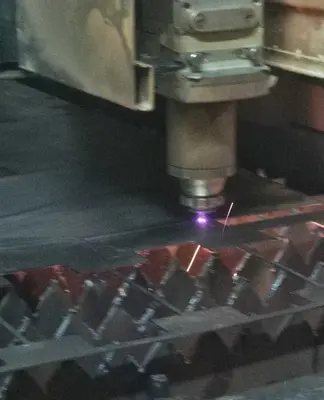

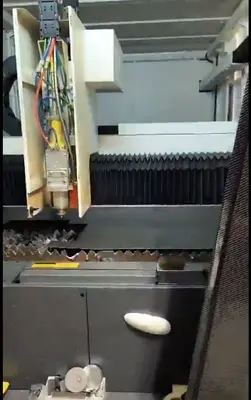

BodorGenius Auto-Focus Laser Head with Obstacle Avoidance
Camera-Based Edge Finding
Automatic Nozzle Changer with Calibration and Cleaning
Remnant Layout Management
This 2022 Bodor P3 fiber laser cutter runs a 12,000 W source over a 60" x 120" sheet capacity, with a fully enclosed body and two automatic shuttle tables. It reaches 7,874 IPM with up to 4.0G acceleration and 13.78" of Z travel, running BodorThinker CNC software with BodorNest nesting.
The Bodor P3, also searched as Bodor P-3, Bodor P3 12kW, or Bodor P Series, is a CNC fiber laser cutting machine (sheet metal laser, flatbed laser cutter).
This machine has 120" of X-axis travel and 60" of Y-axis travel, with a max table load of 3,200 lbs. It comes equipped with BodorThinker CNC software, BodorNest nesting software, a BodorGenius auto-focus laser head with obstacle avoidance, camera-based edge finding, an automatic nozzle changer, and remnant layout management, with approximate dimensions of 348" x 88.1" x 99.2" and an approximate weight of 14,329 to 18,298 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Sheet-W | 60" |
| Sheet-L | 120" |
| Wattage | 12000 w |
| X | 120" |
| Y | 60" |
| Z | 13.78" |
Max Linkage Speed: 7,874 IPM
Max Acceleration: 4.0G
Shuttle Tables: 2 (Automatic Pallet Changer)
Table Max Load: 3,200 lbs
Approximate Dimensions: 348" x 88.1" x 99.2"
Fully Enclosed Design
BodorThinker CNC Software
BodorNest Nesting Software
BodorGenius Auto-Focus Laser Head with Obstacle Avoidance
Camera-Based Edge Finding
Automatic Nozzle Changer with Calibration and Cleaning
Remnant Layout Management
