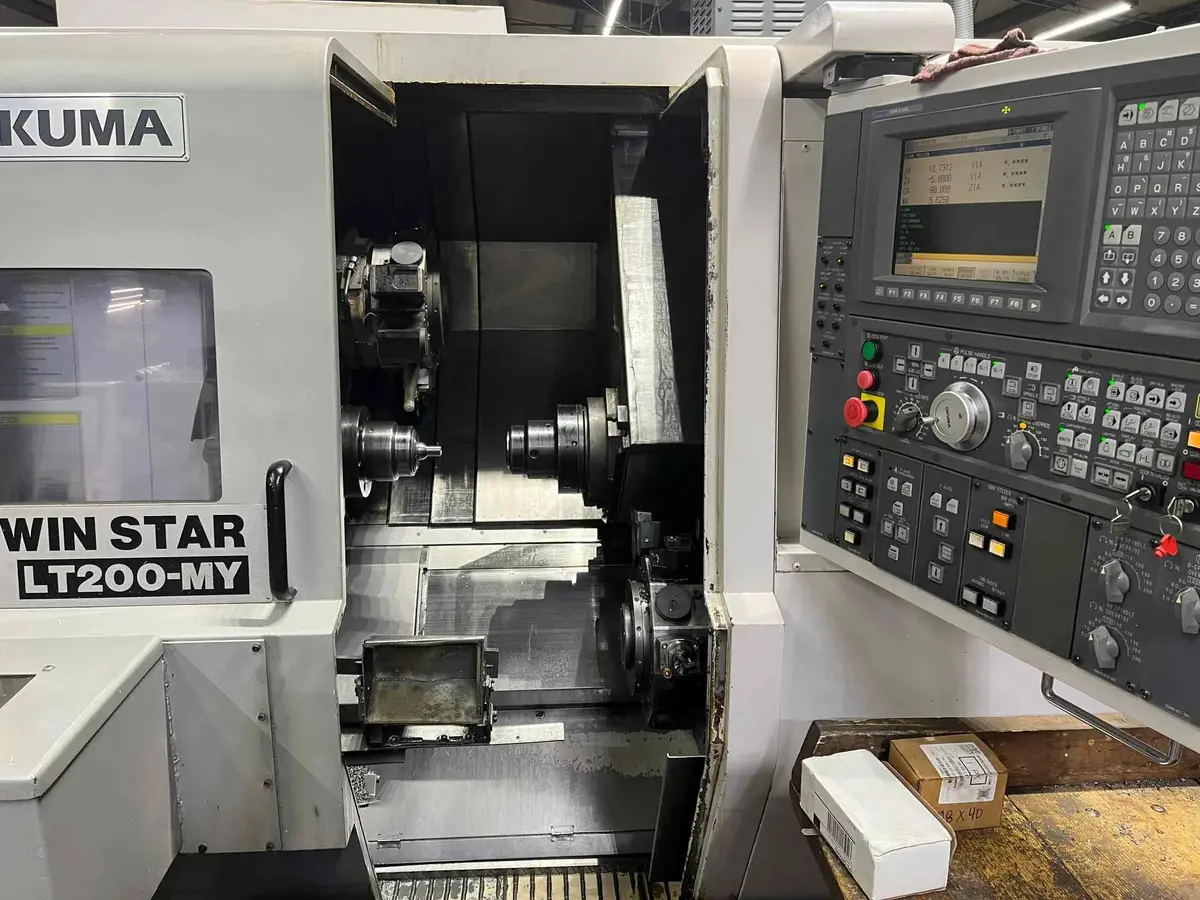

2005 Okuma LT-200 MY CNC Lathe with 2017 Rebuild
Have one to sell?
ConditionUsed
1 available
This 2005 Okuma LT-200 MY twin-turret CNC lathe was fully rebuilt in 2017 and pairs a Y-axis on turret one with a 4,500 RPM sub spindle, with 12 live tool positions on each turret. It offers 15.75" of swing, an 8.27" max cutting diameter, and a 21.26" max turning length, with 2" bar capacity and 15 HP on both the main and sub spindles.
Swing Over Cross Slide: 12.2"
Distance Between Spindles: 37.80"
Main Spindle Speed Range: 45 to 4,500 RPM
Main Spindle Bore: 2.44"
Main Spindle Nose: A2-6
Main Motor Continuous Rating: 10 HP
Sub Spindle Speed Range: 45 to 4,500 RPM
Sub Spindle Bore: 2.44"
Sub Spindle Bar Capacity: 2"
Sub Spindle Nose: A2-6
Sub Spindle Motor (30 Min/Continuous): 15/10 HP
Turret Positions (Turret One/Turret Two): 12/12, All Live
X-Axis Travel (Turret One/Turret Two): 7.56"/7.56"
Z-Axis Travel (Turret One/Turret Two): 27.561"/27.561"
Y-Axis Travel (Turret One): ±3.62"
B-Axis Travel (Sub Spindle): 28.74"
Rotary Tool Speed: 50 to 6,000 RPM
Rotary Tool Motor: 5.4 HP
Rapid Traverse (X/Z/Y): 1,181/1,574/1,024 IPM
Sub Spindle Rapid Traverse: 1,574 IPM
Okuma OSP-E100L Control
ATS Collet Chuck on Main and Sub Spindle
Standard Tool Holders
Auto Touchsetter
Barfeed Interface
Parts Catcher
Parts Ejector
User Task II
Synchronous Tapping
Helical Cutting
Thermal Compensation
Lap 4
Nose Radius Compensation
Auto Chamfering
3D Animation
Spindle Orientation
Torque Limiter
Tool Life Management
Tool Wear Compensation
This 2005 Okuma LT-200 MY twin-turret CNC lathe was fully rebuilt in 2017 and pairs a Y-axis on turret one with a 4,500 RPM sub spindle, with 12 live tool positions on each turret. It offers 15.75" of swing, an 8.27" max cutting diameter, and a 21.26" max turning length, with 2" bar capacity and 15 HP on both the main and sub spindles.
The Okuma LT-200 MY, also searched as Okuma LT200-MY, LT200MY, LT 200 MY, LT-200, or Okuma Twin Star LT200-MY, is a twin-turret CNC turning center with Y-axis live tooling and a sub spindle (mill-turn).
This 2005 machine has 7.56" of X-axis travel and 27.561" of Z-axis travel on each turret, with ±3.62" of Y-axis travel on turret one, 28.74" of sub spindle B-axis travel, and rapid rates of 1,181/1,574/1,024 IPM (X/Z/Y). It also comes equipped with ATS collet chucks on both spindles, an auto touchsetter, a barfeed interface, a parts catcher and parts ejector, and User Task II and Lap 4 software, with approximate dimensions of 105" x 88" x 88" and an approximate weight of 16,000 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 15.75" |
| Machining Length | 21.26" |
| # Axis | 4 |
| Bar Capacity | 2" |
| Power | 15 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 8.27" |
| Tailstock | No |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Control | CNC (OKUMA) |
Swing Over Cross Slide: 12.2"
Distance Between Spindles: 37.80"
Main Spindle Speed Range: 45 to 4,500 RPM
Main Spindle Bore: 2.44"
Main Spindle Nose: A2-6
Main Motor Continuous Rating: 10 HP
Sub Spindle Speed Range: 45 to 4,500 RPM
Sub Spindle Bore: 2.44"
Sub Spindle Bar Capacity: 2"
Sub Spindle Nose: A2-6
Sub Spindle Motor (30 Min/Continuous): 15/10 HP
Turret Positions (Turret One/Turret Two): 12/12, All Live
X-Axis Travel (Turret One/Turret Two): 7.56"/7.56"
Z-Axis Travel (Turret One/Turret Two): 27.561"/27.561"
Y-Axis Travel (Turret One): ±3.62"
B-Axis Travel (Sub Spindle): 28.74"
Rotary Tool Speed: 50 to 6,000 RPM
Rotary Tool Motor: 5.4 HP
Rapid Traverse (X/Z/Y): 1,181/1,574/1,024 IPM
Sub Spindle Rapid Traverse: 1,574 IPM
Okuma OSP-E100L Control
ATS Collet Chuck on Main and Sub Spindle
Standard Tool Holders
Auto Touchsetter
Barfeed Interface
Parts Catcher
Parts Ejector
User Task II
Synchronous Tapping
Helical Cutting
Thermal Compensation
Lap 4
Nose Radius Compensation
Auto Chamfering
3D Animation
Spindle Orientation
Torque Limiter
Tool Life Management
Tool Wear Compensation
