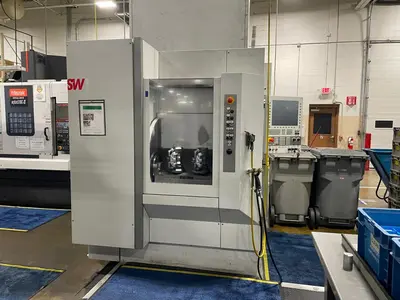

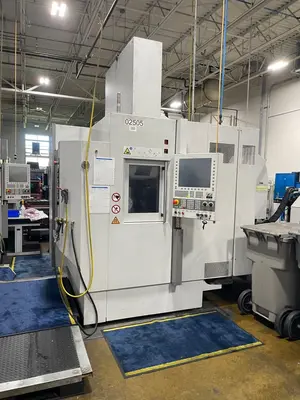

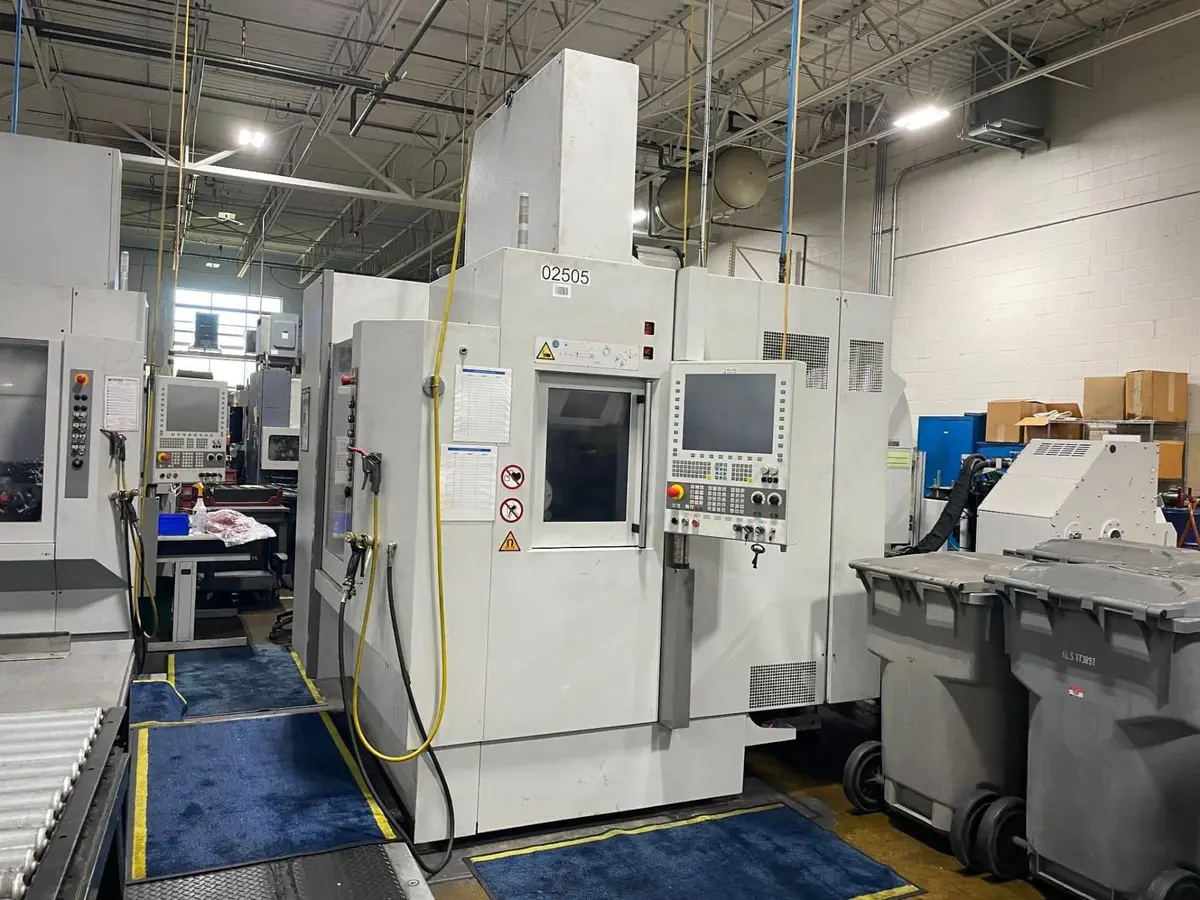

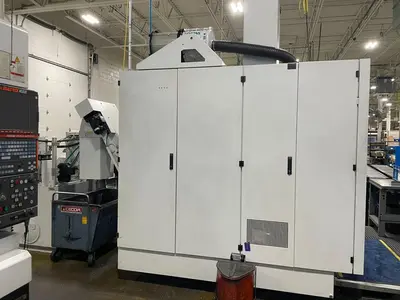

2016 SW BA W02-22 Horizontal Machining Center
Have one to sell?
ConditionUsed
1 available
This 2016 SW BA W02-22 horizontal machining center pairs a crown-gear swivel carrier that indexes 0/180° in approximately 2.25 seconds with HSK-A40 spindles running up to 25,000 RPM at a 9.84" spindle distance. Torque-motor-driven A- and U-axes carry up to 352.74 lbs each, and tool changes run approximately 1.75 seconds chip to chip.
Y-Axis Travel at Tool Change Position: 20.67"
Spindle Distance: 9.84"
Swivel Carrier/Counterbearing: Crown Gear, 0/180° Swivel Time Approximately 2.25 Seconds

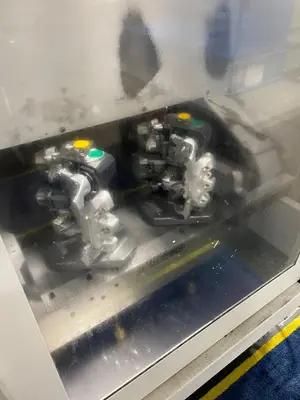

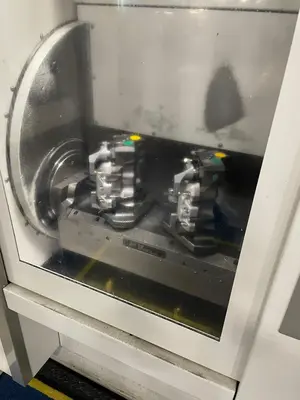

A- and U-Axis Fixture Plate Capacity: Up to Ø16.73" x 24.80"
A- and U-Axis Drive: Torque Motor
A- and U-Axis Load Capacity: 2 x 352.74 lbs
A- and U-Axis Speed Range: 1 to 100 RPM
C- and W-Axis: 2 Satellites
Chip-to-Chip Time: Approximately 1.75 Seconds
Approximate Weight: 13,889 lbs
Approximate Transport Dimensions (W x H x L): 75.59" x 92.52" x 100.39"
Approximate Installed Dimensions (W x H x L): 125.98" x 114.17" x 204.72"
Operating Voltage: 3 x 400V, 50 Hz, TN-S/TN-C Network
Total Connected Load: 41 kVA
Mean Air Consumption: 14.12 CFM (80 PSI)

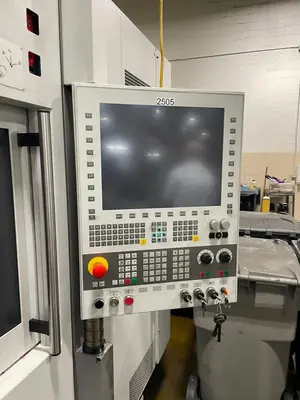

Siemens Sinumerik 840D sl Control
This 2016 SW BA W02-22 horizontal machining center pairs a crown-gear swivel carrier that indexes 0/180° in approximately 2.25 seconds with HSK-A40 spindles running up to 25,000 RPM at a 9.84" spindle distance. Torque-motor-driven A- and U-axes carry up to 352.74 lbs each, and tool changes run approximately 1.75 seconds chip to chip.
The SW BA W02-22, also searched as SW BAW02-22, BA W02 22, BA W02, or Schwäbische Werkzeugmaschinen BA W02-22, is a horizontal machining center (HMC).
This 2016 machine has 7.87" of X-axis travel, 13.78" of Y-axis travel (20.67" at the tool change position), and 11.81" of Z-axis travel. Its A- and U-axes run from 1 to 100 RPM and accept fixture plates up to Ø16.73" x 24.80", and it runs a Siemens Sinumerik 840D sl control, with approximate installed dimensions of 125.98" x 114.17" x 204.72" and an approximate weight of 13,889 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 7.87" |
| Y | 13.78" |
| Z | 11.81" |
| RPM | 25,000 RPM |
| Taper | HSK-A40 |
| # Axis | 4 |
| Control | CNC (Siemens) |
Y-Axis Travel at Tool Change Position: 20.67"
Spindle Distance: 9.84"
Swivel Carrier/Counterbearing: Crown Gear, 0/180° Swivel Time Approximately 2.25 Seconds
A- and U-Axis Fixture Plate Capacity: Up to Ø16.73" x 24.80"
A- and U-Axis Drive: Torque Motor
A- and U-Axis Load Capacity: 2 x 352.74 lbs
A- and U-Axis Speed Range: 1 to 100 RPM
C- and W-Axis: 2 Satellites
Chip-to-Chip Time: Approximately 1.75 Seconds
Approximate Weight: 13,889 lbs
Approximate Transport Dimensions (W x H x L): 75.59" x 92.52" x 100.39"
Approximate Installed Dimensions (W x H x L): 125.98" x 114.17" x 204.72"
Operating Voltage: 3 x 400V, 50 Hz, TN-S/TN-C Network
Total Connected Load: 41 kVA
Mean Air Consumption: 14.12 CFM (80 PSI)
Siemens Sinumerik 840D sl Control
