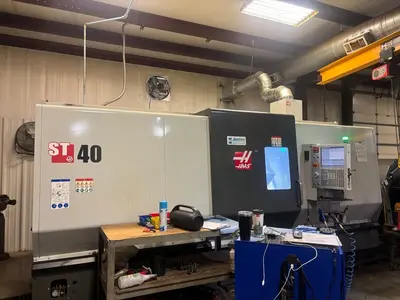

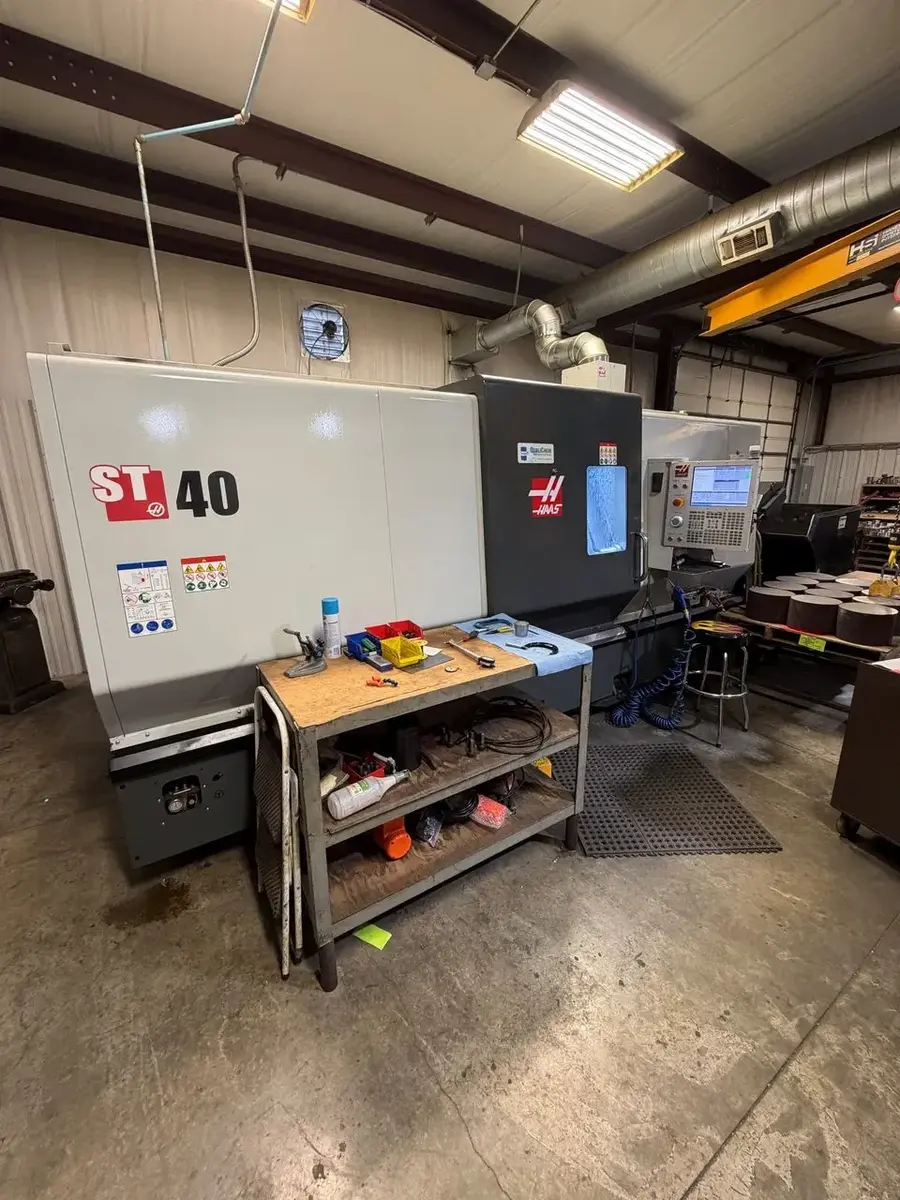

2022 Haas ST-40 CNC Lathe with Extra Performance Package
Have one to sell?
ConditionUsed
1 available
This 2022 Haas ST-40 CNC lathe has the Extra Performance Package for a 55 HP spindle motor, paired with a programmable servo tailstock and the Visual Part Programming System. It offers 35.5" of swing over 44" of cutting length and a 30" max cutting diameter, running a 15" chuck with 4" bar capacity and a top speed of 2,400 RPM.
X-Axis Travel: 20"
Z-Axis Travel: 44"
Tool Capacity: 12
Spindle Nose: A2-8
Spindle Bore: 4.62"
Electrical: 220V / 3 Phase
Approximate Dimensions: 216" x 95" x 110"
Approximate Weight: 21,740 lbs
Extra Performance Package
Programmable Servo Tailstock
Visual Part Programming System
1 GB Memory
This 2022 Haas ST-40 CNC lathe has the Extra Performance Package for a 55 HP spindle motor, paired with a programmable servo tailstock and the Visual Part Programming System. It offers 35.5" of swing over 44" of cutting length and a 30" max cutting diameter, running a 15" chuck with 4" bar capacity and a top speed of 2,400 RPM.
The Haas ST-40, also searched as Haas ST40 or ST 40, is a CNC turning center.
This 2022 machine has 20" of X-axis travel and 44" of Z-axis travel, a 12-station tool capacity, an A2-8 spindle nose, and a 4.62" spindle bore. It also comes with 1 GB of memory and runs on 220V 3 phase power, with approximate dimensions of 216" x 95" x 110" and an approximate weight of 21,740 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 34.5" |
| Machining Length | 44" |
| # Axis | 2 |
| Chuck Size | 15" |
| Bar Capacity | 4" |
| Power | 55 hp |
| Max RPM | 2,400 RPM |
| Turning Dia | 30" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (HAAS) |
X-Axis Travel: 20"
Z-Axis Travel: 44"
Tool Capacity: 12
Spindle Nose: A2-8
Spindle Bore: 4.62"
Electrical: 220V / 3 Phase
Approximate Dimensions: 216" x 95" x 110"
Approximate Weight: 21,740 lbs
Extra Performance Package
Programmable Servo Tailstock
Visual Part Programming System
1 GB Memory
