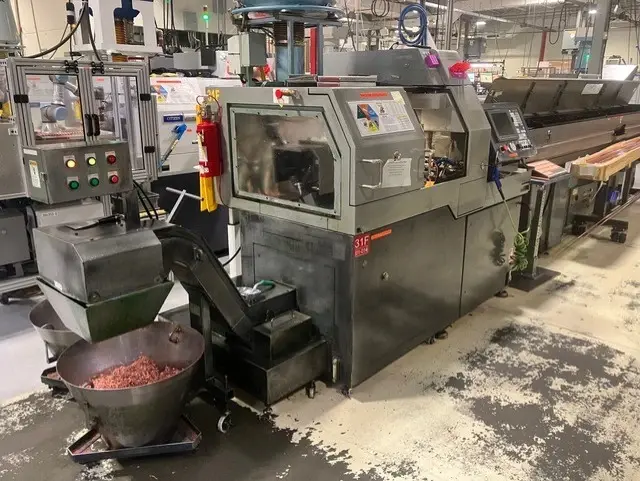

2007 Citizen L-20 Type VIII CNC Swiss Lathe with Bar Loader
Have one to sell?
ConditionUsed
1 available
This 2007 Citizen L-20 Type VIII CNC Swiss lathe comes with a Citizen CAV20-IS magazine bar loader and CoolBlaster high pressure coolant, handling up to .79" in diameter and 7.87" in length per chuck. The main spindle reaches 10,000 RPM with full C-axis, paired with an 8,000 RPM pick-off spindle and 5,000 RPM rotary tools across 18 to 21 tool positions.
Max Machining Diameter: 3/4" (.79")
Max Machining Length per Chuck: 7.87"
Max Drilling Diameter: Up to .394"
Main Spindle Speed: 200 to 10,000 RPM
Main Spindle Indexing: 0.01°, Full C-Axis
Main Spindle Motor: 2.95/4.96 HP
Tool Shank Size: 1/2" (T01 5/8")
Max Pick-Off Spindle Chucking Diameter: .79"
Pick-Off Spindle Speed: 200 to 8,000 RPM
Pick-Off Spindle Motor: 1.01/2.01 HP
Pick-Off Spindle Indexing: 0.01°, Full C-Axis
Rotary Tool Speed: 200 to 5,000 RPM
Rotary Tool Motor: 1.34 HP
Number of Tools: 18 to 21
Tool Layout (Turning / Front ID / Back ID / Live): 5 / 3 / 3 / 5
Power Consumption: 6 KVA
Approximate Dimensions: 83.5" x 48" x 81"
Approximate Weight: 5,000 lbs
Cincom CNC Control

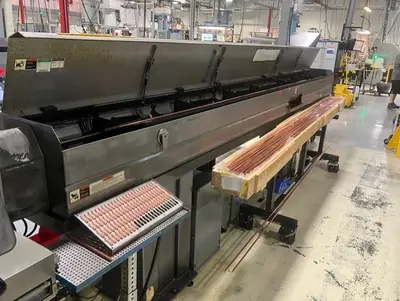

Citizen CAV20-IS Magazine Bar Loader

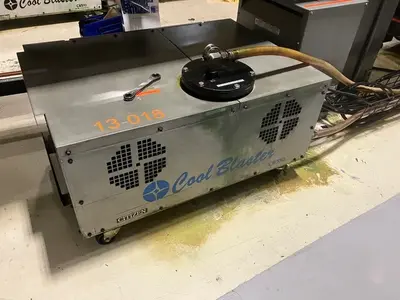

CoolBlaster High Pressure Coolant

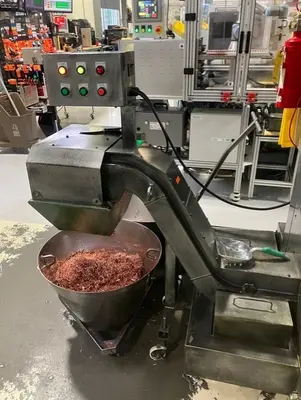

Chip Conveyor
3Nine Clara Mist Collector
This 2007 Citizen L-20 Type VIII CNC Swiss lathe comes with a Citizen CAV20-IS magazine bar loader and CoolBlaster high pressure coolant, handling up to .79" in diameter and 7.87" in length per chuck. The main spindle reaches 10,000 RPM with full C-axis, paired with an 8,000 RPM pick-off spindle and 5,000 RPM rotary tools across 18 to 21 tool positions.
The Citizen L-20 Type VIII, also searched as Citizen L20 Type VIII, L20-VIII, L20 VIII, L-20, or Cincom L20, is a CNC Swiss type lathe (sliding headstock lathe, Swiss screw machine).
This 2007 machine drills up to .394" and takes 1/2" tool shanks (5/8" on T01), with a 5 / 3 / 3 / 5 layout of turning, front ID, back ID, and live tools. The main spindle motor is rated at 2.95/4.96 HP, the pick-off spindle at 1.01/2.01 HP, and the rotary tools at 1.34 HP, with 6 KVA power consumption. It runs a Cincom CNC control and comes equipped with a chip conveyor and a 3Nine Clara mist collector, with approximate dimensions of 83.5" x 48" x 81" and an approximate weight of 5,000 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Power | 5 hp |
| RPM | 10,000 RPM |
| # Axis | 5 |
| Control | CNC (CINCOM) |
Max Machining Diameter: 3/4" (.79")
Max Machining Length per Chuck: 7.87"
Max Drilling Diameter: Up to .394"
Main Spindle Speed: 200 to 10,000 RPM
Main Spindle Indexing: 0.01°, Full C-Axis
Main Spindle Motor: 2.95/4.96 HP
Tool Shank Size: 1/2" (T01 5/8")
Max Pick-Off Spindle Chucking Diameter: .79"
Pick-Off Spindle Speed: 200 to 8,000 RPM
Pick-Off Spindle Motor: 1.01/2.01 HP
Pick-Off Spindle Indexing: 0.01°, Full C-Axis
Rotary Tool Speed: 200 to 5,000 RPM
Rotary Tool Motor: 1.34 HP
Number of Tools: 18 to 21
Tool Layout (Turning / Front ID / Back ID / Live): 5 / 3 / 3 / 5
Power Consumption: 6 KVA
Approximate Dimensions: 83.5" x 48" x 81"
Approximate Weight: 5,000 lbs
Cincom CNC Control
Citizen CAV20-IS Magazine Bar Loader
CoolBlaster High Pressure Coolant
Chip Conveyor
3Nine Clara Mist Collector
