2009 Haas VF-2SS Vertical Machining Center
Have one to sell?
ConditionUsed
1 available

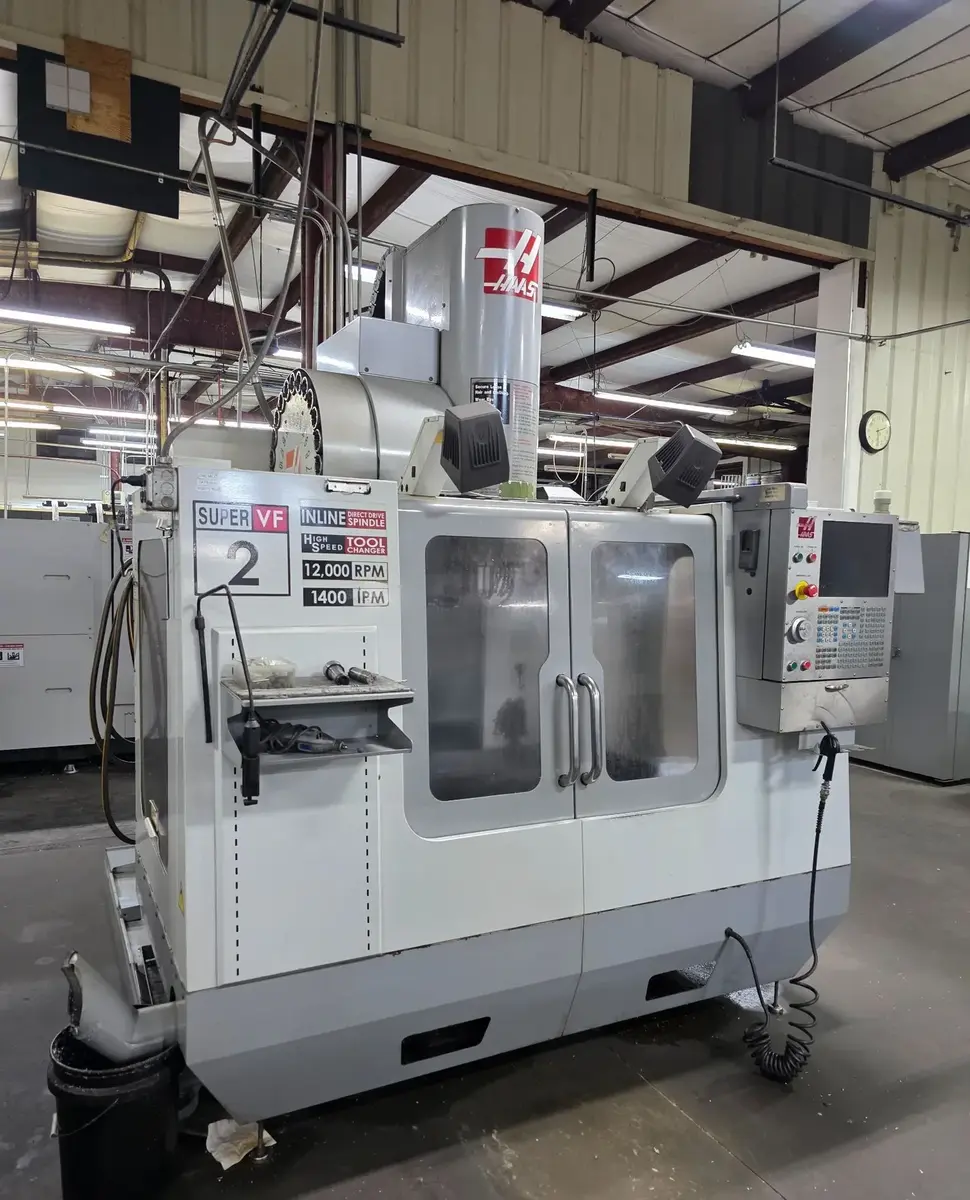

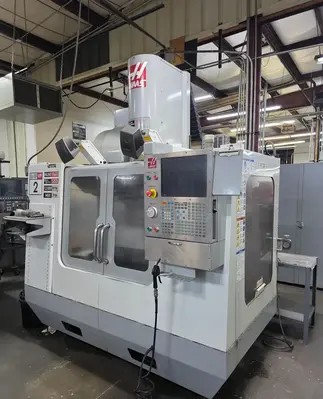

This 2009 Haas VF-2SS vertical machining center offers 30" x 16" x 20" of X/Y/Z travel over a 36" x 14" table rated for 1,500 lbs. The CAT 40 spindle reaches 12,000 RPM with 30 HP and 75 ft-lb of torque at 2,100 RPM, served by a 24+1 tool changer.
Spindle Torque: 75 ft-lb at 2,100 RPM
Rapids (Y, Z): 1,400 IPM
Max Table Load: 1,500 lbs
Power Requirements: 195 to 260 VAC, 3 Phase
Approximate Weight: 8,000 lbs
Approximate Coolant Tank on Skid: 83" x 28" x 26", 365 lbs
This 2009 Haas VF-2SS vertical machining center offers 30" x 16" x 20" of X/Y/Z travel over a 36" x 14" table rated for 1,500 lbs. The CAT 40 spindle reaches 12,000 RPM with 30 HP and 75 ft-lb of torque at 2,100 RPM, served by a 24+1 tool changer.
The Haas VF-2SS, also searched as Haas VF2SS, VF-2 SS, VF 2SS, or Super VF-2, is a 40 taper vertical machining center (VMC, CNC mill).
This 2009 machine has rapids of 1,400 IPM on the Y and Z axes and runs on 195 to 260 VAC, 3 phase power. It has an approximate weight of 8,000 lbs, with a separate coolant tank on skid measuring approximately 83" x 28" x 26" and weighing approximately 365 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 30" |
| Y | 16" |
| Z | 20" |
| Power | 30 hp |
| RPM | 12,000 RPM |
| # ATC | 24 |
| Taper | CAT 40 |
| Table-W | 14" |
| Table-L | 36" |
| # Axis | 3 |
| Control | CNC (HAAS) |
Spindle Torque: 75 ft-lb at 2,100 RPM
Rapids (Y, Z): 1,400 IPM
Max Table Load: 1,500 lbs
Power Requirements: 195 to 260 VAC, 3 Phase
Approximate Weight: 8,000 lbs
Approximate Coolant Tank on Skid: 83" x 28" x 26", 365 lbs
