2008 Doosan Puma 280 CNC Lathe
Have one to sell?
ConditionUsed
1 available

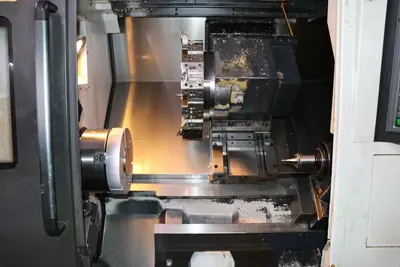

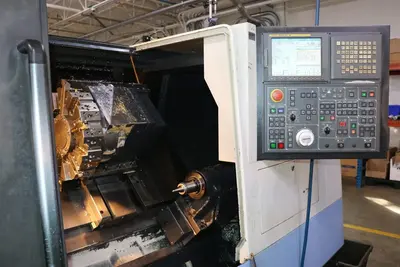

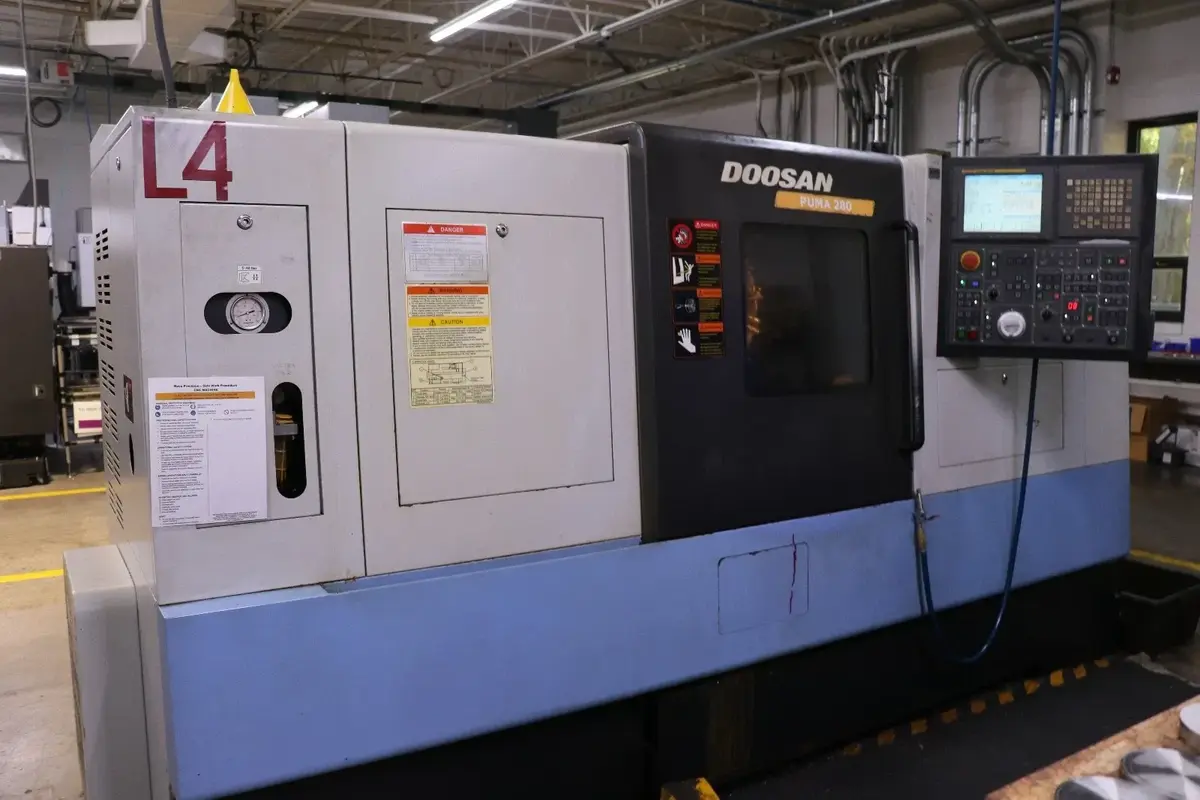

This 2008 Doosan Puma 280 is a 2-axis CNC lathe with a 12 station turret and a drag and drop style tailstock. It offers 24.8" of swing over the bed, a 3" bar capacity, and a 10" chuck, driven by a 30 HP spindle motor with a max spindle speed of 3,500 RPM.
X-Axis Travel: 9.5"
Z-Axis Travel: 26.75"
Approximate Dimensions: 137" x 67" x 69"
Approximately 46,320 Operation Hours

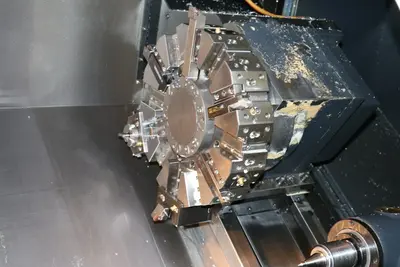

12 Station Turret
This 2008 Doosan Puma 280 is a 2-axis CNC lathe with a 12 station turret and a drag and drop style tailstock. It offers 24.8" of swing over the bed, a 3" bar capacity, and a 10" chuck, driven by a 30 HP spindle motor with a max spindle speed of 3,500 RPM.
The Doosan Puma 280, also searched as Doosan Puma280, Puma 280, or DN Solutions Puma 280, is a 2-axis CNC lathe (turning center).
This 2008 machine has 9.5" of X-axis travel and 26.75" of Z-axis travel with a Fanuc control, approximately 46,320 operation hours, and approximate dimensions of 137" x 67" x 69".
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 24.8" |
| Machining Length | 25.91" |
| # Axis | 2 |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Power | 30 hp |
| Max RPM | 3,500 RPM |
| Turning Dia | 16.54" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |

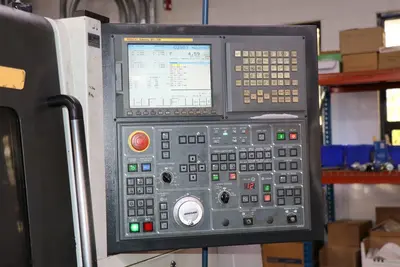

| Control | CNC (Fanuc) |
X-Axis Travel: 9.5"
Z-Axis Travel: 26.75"
Approximate Dimensions: 137" x 67" x 69"
Approximately 46,320 Operation Hours
12 Station Turret
