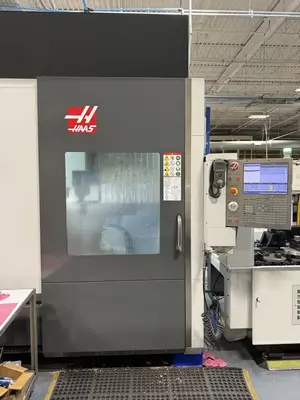

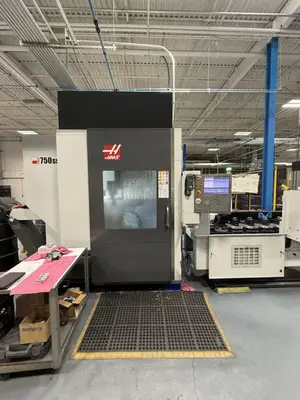

2017 Haas UMC-750SS 5-Axis Vertical Machining Center with APC
Have one to sell?
ConditionUsed
1 available

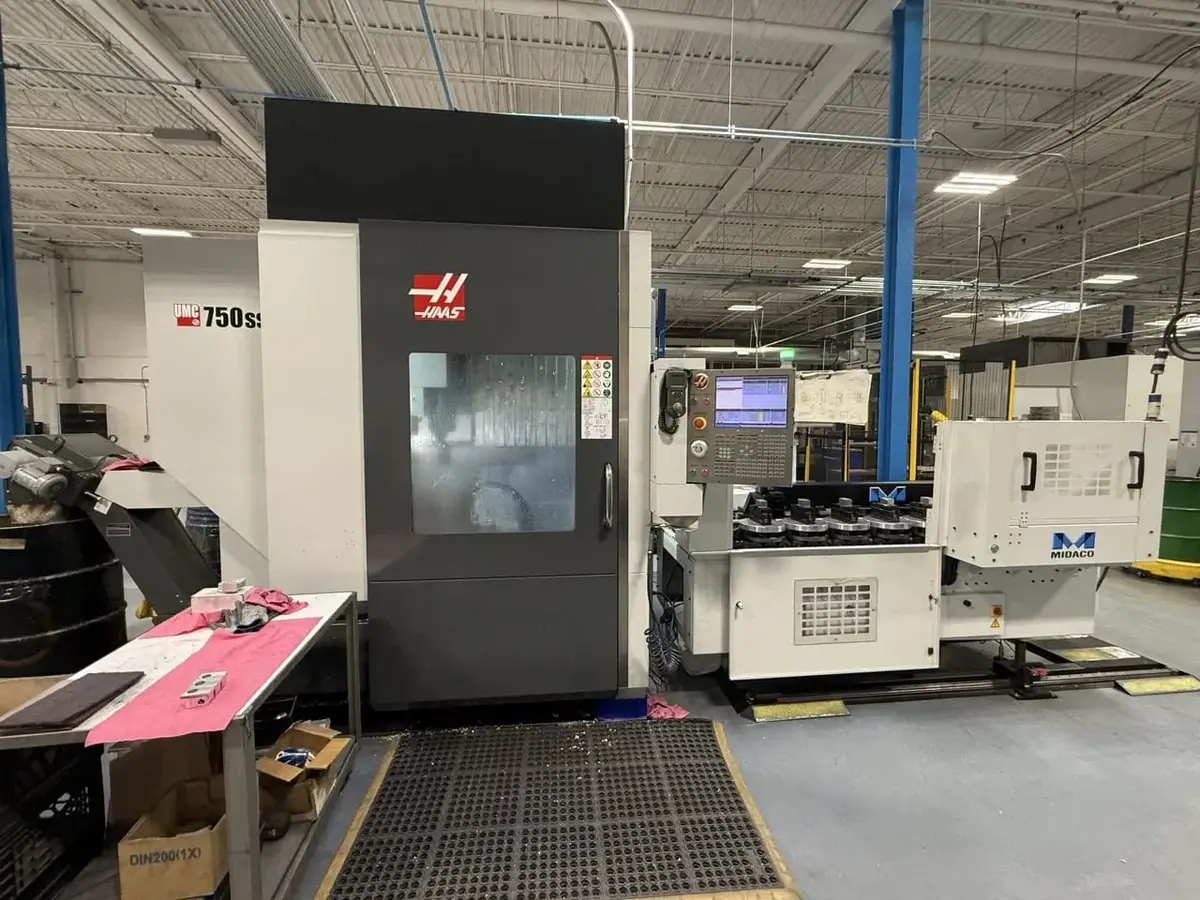

This 2017 Haas UMC-750SS 5-axis vertical machining center is set up with a Midaco automatic pallet changer, through spindle coolant, and probing. It runs a 30 HP, 15,000 RPM 40 taper spindle with a 40+1 tool changer over 30" x 20" x 20" of travel, with a B-axis tilt of +120° to -35° and full 360° C-axis rotation.
Max Table Load: 660 lbs
B-Axis Tilt: +120° to -35°
C-Axis Rotation: 360°

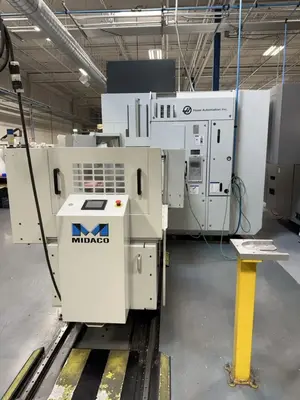

Midaco Automatic Pallet Changer
Through Spindle Coolant
Probing
Dynamic Work Offsets (DWO)
Tool Center Point Control (TCPC)
High Speed Machining
Rigid Tapping
Macros
Rotation and Scaling
M19 Spindle Orientation
VPS Editing
Media Display
1 GB Memory
Compensation Tables
Chip Conveyor
This 2017 Haas UMC-750SS 5-axis vertical machining center is set up with a Midaco automatic pallet changer, through spindle coolant, and probing. It runs a 30 HP, 15,000 RPM 40 taper spindle with a 40+1 tool changer over 30" x 20" x 20" of travel, with a B-axis tilt of +120° to -35° and full 360° C-axis rotation.
The Haas UMC-750SS, also searched as Haas UMC 750SS, UMC-750 SS, UMC750SS, or UMC-750, is a 5-axis universal machining center (5-axis VMC, trunnion mill).
This 2017 machine has a max table load of 660 lbs and comes equipped with dynamic work offsets, tool center point control, high speed machining, rigid tapping, VPS editing, media display, 1 GB of memory, and a chip conveyor.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 30" |
| Y | 20" |
| Z | 20" |
| # Axis | 5 |
| Power | 30 hp |
| RPM | 15,000 RPM |
| # ATC | 40 |
| Table-W | 19.7" |
| Table-L | 24.8" |
| Control | CNC (HAAS) |
Max Table Load: 660 lbs
B-Axis Tilt: +120° to -35°
C-Axis Rotation: 360°
Midaco Automatic Pallet Changer
Through Spindle Coolant
Probing
Dynamic Work Offsets (DWO)
Tool Center Point Control (TCPC)
High Speed Machining
Rigid Tapping
Macros
Rotation and Scaling
M19 Spindle Orientation
VPS Editing
Media Display
1 GB Memory
Compensation Tables
Chip Conveyor
