2021 Doosan NHP 4000 Horizontal Machining Center with 60 ATC
Have one to sell?
ConditionUsed
1 available

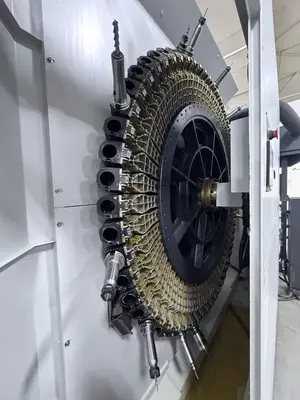

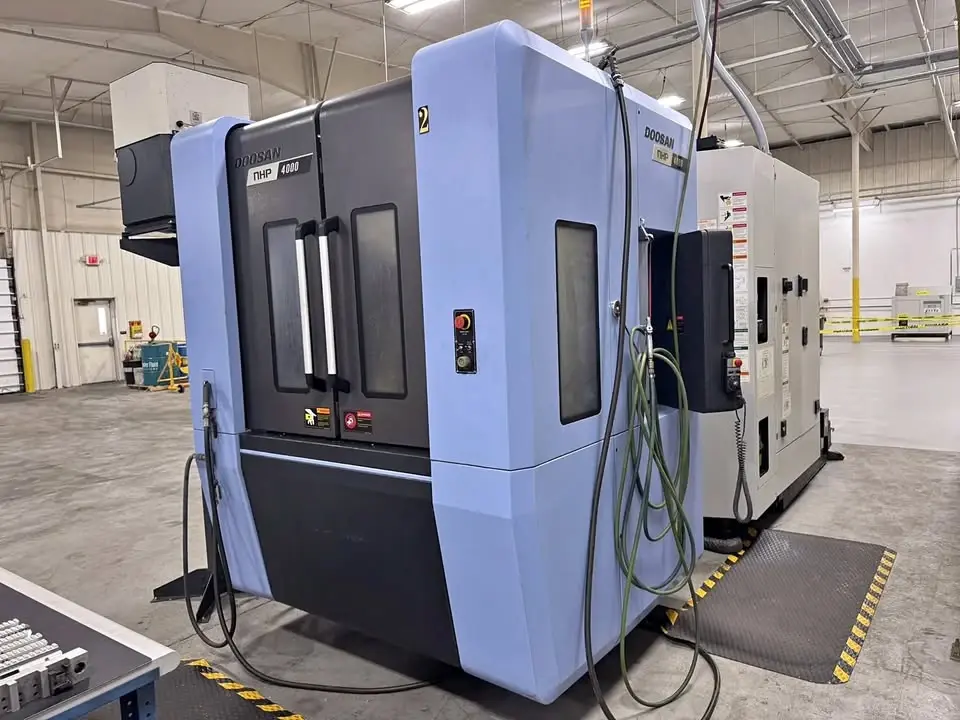

This 2021 Doosan NHP 4000 horizontal machining center has a 60-tool ATC, 1,000 PSI coolant through the spindle, and a dual 15.7" x 15.7" pallet changer with 0.001° indexing. It runs a 25 HP, 15,000 RPM CAT 40 spindle over 22" x 25.2" x 25.2" of X, Y, and Z travel, with 2,362 IPM rapids.
Number of Pallets: 2
Max Pallet Load: 880 lbs
Pallet Indexing: 0.001°
Rapid Traverse X/Y/Z: 2,362 IPM
Power Requirements: AC 220V, 3-Phase, 83.87 kVA, 220 A Full Load
Approximate Weight: 21,385 lbs

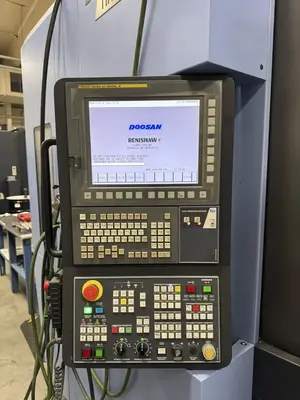

Fanuc 31i-Model B Control
1,000 PSI Coolant Thru Spindle (Chip Blaster Unit)
Renishaw Tool Probe
Tool Presetter
Spindle Chiller
Tombstones

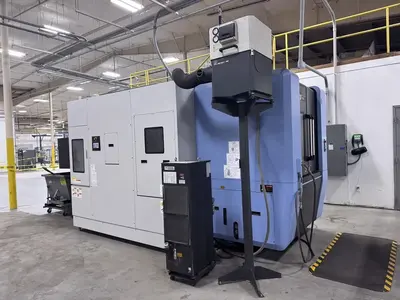

Mist Collector
This 2021 Doosan NHP 4000 horizontal machining center has a 60-tool ATC, 1,000 PSI coolant through the spindle, and a dual 15.7" x 15.7" pallet changer with 0.001° indexing. It runs a 25 HP, 15,000 RPM CAT 40 spindle over 22" x 25.2" x 25.2" of X, Y, and Z travel, with 2,362 IPM rapids.
The Doosan NHP 4000, also searched as DN Solutions NHP 4000, Doosan NHP4000, or NHP-4000, is a 4-axis horizontal machining center (HMC) with a dual pallet changer.
It has an 880 lb max pallet load and comes equipped with a Fanuc 31i-Model B control, a Chip Blaster coolant unit, a Renishaw tool probe, a tool presetter, a spindle chiller, tombstones, and a mist collector, with an approximate weight of 21,385 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 22" |
| Y | 25.2" |
| Z | 25.2" |
| Power | 25 hp |
| RPM | 15,000 RPM |
| # ATC | 60 |
| Taper | CAT 40 |
| Pallet-W | 15.75" |
| Pallet-L | 15.75" |
| # Axis | 4 |
| Control | CNC (Fanuc) |
Number of Pallets: 2
Max Pallet Load: 880 lbs
Pallet Indexing: 0.001°
Rapid Traverse X/Y/Z: 2,362 IPM
Power Requirements: AC 220V, 3-Phase, 83.87 kVA, 220 A Full Load
Approximate Weight: 21,385 lbs
Fanuc 31i-Model B Control
1,000 PSI Coolant Thru Spindle (Chip Blaster Unit)
Renishaw Tool Probe
Tool Presetter
Spindle Chiller
Tombstones
Mist Collector
