2021 YCM NFX400A 5-Axis Vertical Machining Center
Have one to sell?
ConditionUsed
1 available

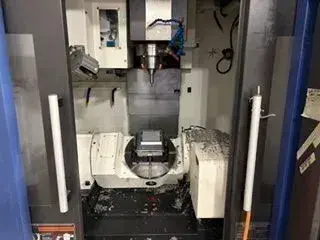

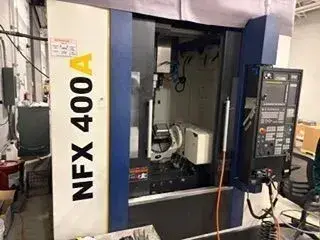

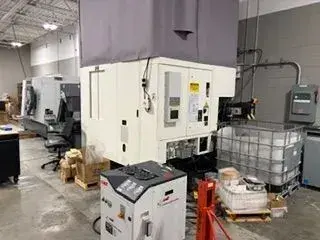

This 2021 YCM NFX400A 5-axis vertical machining center runs a Fanuc 31i-MB5 control, with a 30 HP spindle reaching 12,000 RPM and a BBT40 taper. It carries a 24-tool ATC and comes equipped with a 1,000 PSI ChipBlaster D30-70, a Royal mist collector, and a 5th axis workholding package.
Approximate Weight: 13,670 lbs
Approximate Dimensions: 86" x 136" x 125"
Fanuc 31i-MB5 Control
ChipBlaster D30-70 1,000 PSI High Pressure Coolant
Royal Mist Collector
5th Axis Workholding Package
This 2021 YCM NFX400A 5-axis vertical machining center runs a Fanuc 31i-MB5 control, with a 30 HP spindle reaching 12,000 RPM and a BBT40 taper. It carries a 24-tool ATC and comes equipped with a 1,000 PSI ChipBlaster D30-70, a Royal mist collector, and a 5th axis workholding package.
The YCM NFX400A, also searched as YCM NFX 400A, NFX-400A, NFX400, or Yeong Chin NFX400A, is a 5-axis vertical machining center (5-axis VMC).
This 2021 machine has approximately 25.59" of X-axis travel, 20.47" of Y-axis travel, and 18.90" of Z-axis travel, with approximate dimensions of 86" x 136" x 125" and an approximate weight of 13,670 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 25.59" |
| Y | 20.47" |
| Z | 18.9" |
| # Axis | 5 |
| Power | 30 hp |
| RPM | 12,000 RPM |
| # ATC | 24 |
| Taper | BBT-40 |
| Control | CNC (Fanuc) |
Approximate Weight: 13,670 lbs
Approximate Dimensions: 86" x 136" x 125"
Fanuc 31i-MB5 Control
ChipBlaster D30-70 1,000 PSI High Pressure Coolant
Royal Mist Collector
5th Axis Workholding Package
