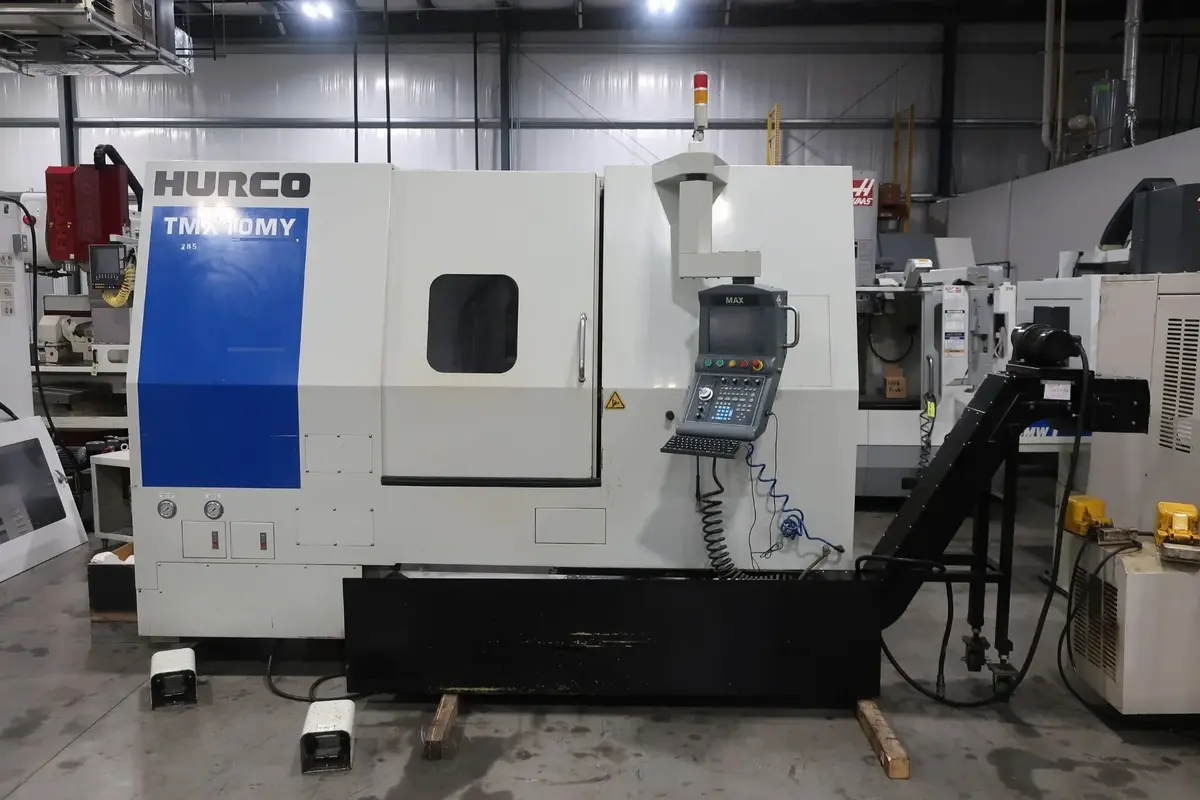

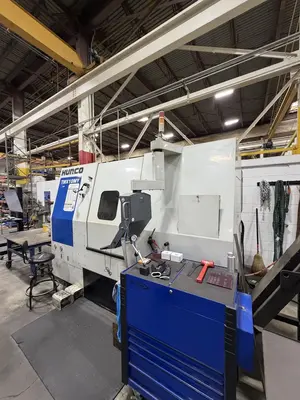

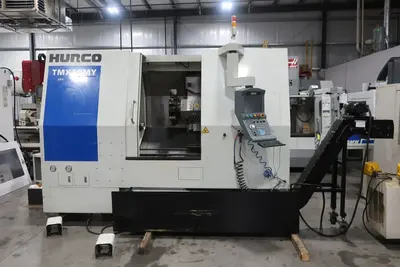

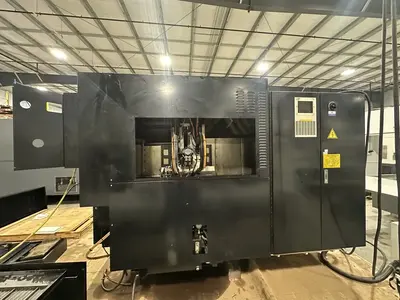

2011 Hurco TMX10MY CNC Lathe with Y-Axis Live Tooling
Have one to sell?
ConditionUsed
1 available

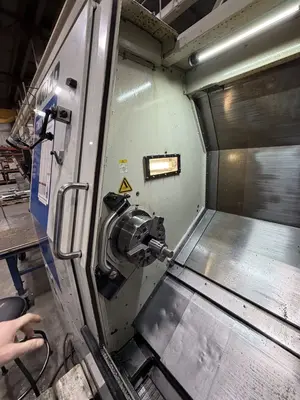

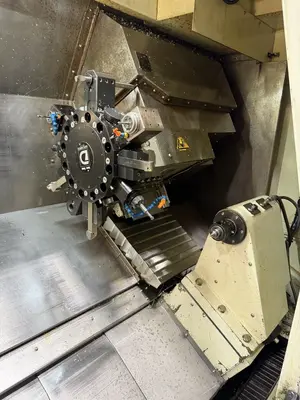

This 2011 Hurco TMX10MY CNC lathe has Y-axis live tooling on a 12-station turret, with 22.05" of swing, a 10" chuck, and 3.07" of bar capacity. Its 37.6 HP main spindle reaches 3,500 RPM, the live tools run up to 5,000 RPM at 8.5 HP, and a tailstock is included.
Swing Over Cross Slide: 22.05"
Distance Between Centers: 33.6"
X-Axis Travel: 12"
Y-Axis Travel: 2.17"
Z-Axis Travel: 26.38"
W-Axis Travel: 29.13"
Main Spindle Torque: 197 ft-lb
Turret Stations: 12
Turret Tool Shank Size: 1" x 1"
Max Boring Bar Diameter: 1.57"
Live Tooling Speed: 5,000 RPM
Live Tooling Power: 8.5 HP
Live Tooling Torque: 20.4 ft-lb
X-Axis Rapid Traverse: 945 IPM
Y-Axis Rapid Traverse: 472 IPM
Z-Axis Rapid Traverse: 1,181 IPM
W-Axis Rapid Traverse: 1,181 IPM

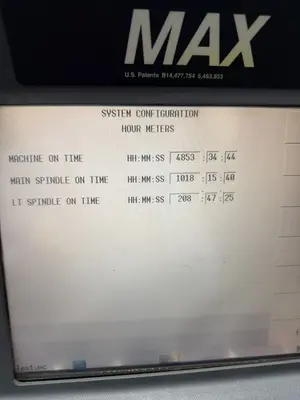

Approximately 1,018 Spindle Hours
Approximately 208 Live Tool Spindle Hours
Approximately 4,853 Machine On Hours
Approximate Weight: 15,984 lbs
Approximate Dimensions: 139" x 95" x 108"

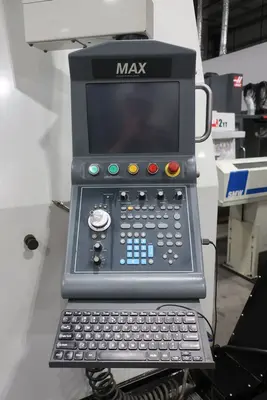

Hurco MAX / WinMax Style Control

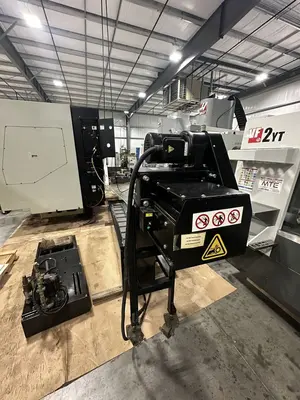

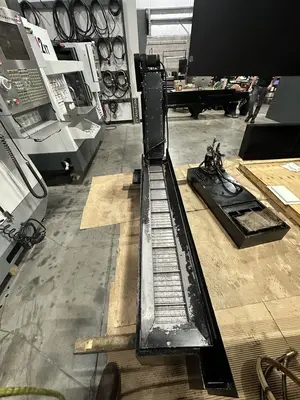

Chip Conveyor

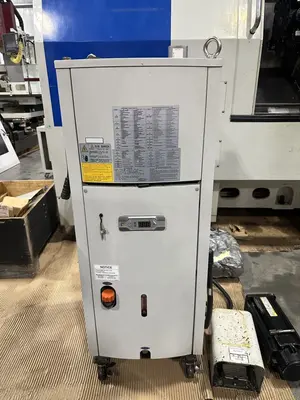

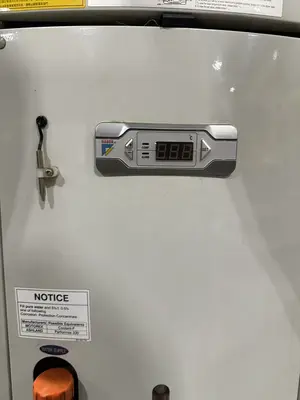

Coolant / Chiller Unit

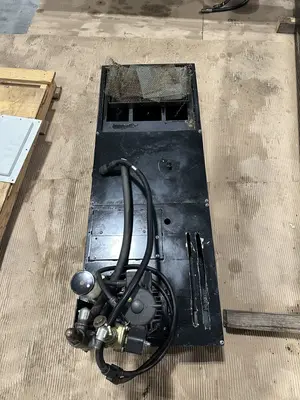

Hydraulic Unit

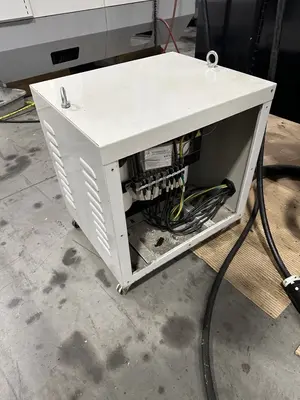

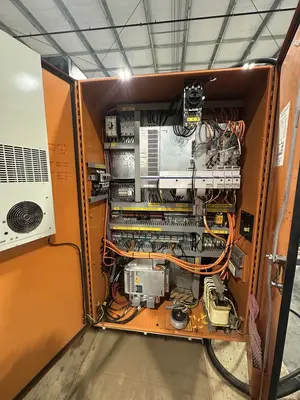

Transformer / Electrical Cabinet
This 2011 Hurco TMX10MY CNC lathe has Y-axis live tooling on a 12-station turret, with 22.05" of swing, a 10" chuck, and 3.07" of bar capacity. Its 37.6 HP main spindle reaches 3,500 RPM, the live tools run up to 5,000 RPM at 8.5 HP, and a tailstock is included.

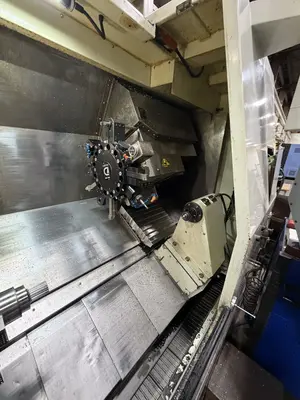

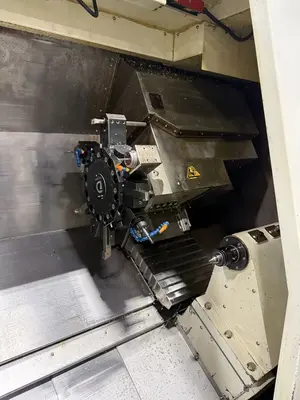

The Hurco TMX10MY, also searched as Hurco TMX 10MY, TMX-10MY, TMX10, or TMX 10, is a slant-bed CNC turning center with Y-axis live tooling (mill-turn).
This 2011 machine has 12" of X-axis travel, 2.17" of Y-axis travel, and 26.38" of Z-axis travel, with rapids of 945 IPM on X, 472 IPM on Y, and 1,181 IPM on Z. It comes equipped with a chip conveyor, coolant/chiller unit, hydraulic unit, and transformer, with approximate dimensions of 139" x 95" x 108" and an approximate weight of 15,984 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 22.05" |
| Machining Length | 24.68" |
| # Axis | 4 |
| Chuck Size | 10" |
| Bar Capacity | 3.07" |
| Power | 37.6 hp |
| Max RPM | 3,500 RPM |
| Turning Dia | 14.76" |
| Tailstock | 'Yes' |
| Live Tooling | 'Yes' |
| Control | CNC (HURCO) |
Swing Over Cross Slide: 22.05"
Distance Between Centers: 33.6"
X-Axis Travel: 12"
Y-Axis Travel: 2.17"
Z-Axis Travel: 26.38"
W-Axis Travel: 29.13"
Main Spindle Torque: 197 ft-lb
Turret Stations: 12
Turret Tool Shank Size: 1" x 1"
Max Boring Bar Diameter: 1.57"
Live Tooling Speed: 5,000 RPM
Live Tooling Power: 8.5 HP
Live Tooling Torque: 20.4 ft-lb
X-Axis Rapid Traverse: 945 IPM
Y-Axis Rapid Traverse: 472 IPM
Z-Axis Rapid Traverse: 1,181 IPM
W-Axis Rapid Traverse: 1,181 IPM
Approximately 1,018 Spindle Hours
Approximately 208 Live Tool Spindle Hours
Approximately 4,853 Machine On Hours
Approximate Weight: 15,984 lbs
Approximate Dimensions: 139" x 95" x 108"
Hurco MAX / WinMax Style Control
Chip Conveyor
Coolant / Chiller Unit
Hydraulic Unit
Transformer / Electrical Cabinet
