2025 Chevalier QP2560-L Vertical Machining Center, Demo Machine
Have one to sell?
ConditionUsed
1 available

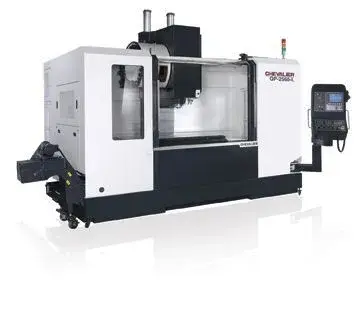

This 2025 Chevalier QP2560-L vertical machining center has never been used and is being sold as a demo machine, with 60" x 25" x 25" of X/Y/Z travel over a 65" x 25" table. It runs a CT-40 spindle at 10,000 RPM with 20 HP, a 24-tool arm-type ATC, and a Fanuc 0i-M control.
Max Table Load: 3,300 lbs
Spindle Nose to Table: 4.9" to 29.9"
Spindle Center to Column: 27"
Spindle Diameter: 2.8"
Rapid Traverse (X/Y/Z): 1,181 / 1,181 / 944 IPM
Cutting Feed: 39.3 to 393 IPM
Tool Change Time (Tool to Tool): 2 Sec
Max Tool Diameter (Adjacent Tool): 3.1"
Max Tool Length: 11.8"
Max Tool Weight: 15.4 lbs
Pull Stud: P40T-1
Approximate Dimensions: 172" x 143.1" x 129.1"
Approximate Weight: 18,700 lbs
Fanuc 0i-M Control
Big Plus Spindle
24+1 Arm-Type ATC
This 2025 Chevalier QP2560-L vertical machining center has never been used and is being sold as a demo machine, with 60" x 25" x 25" of X/Y/Z travel over a 65" x 25" table. It runs a CT-40 spindle at 10,000 RPM with 20 HP, a 24-tool arm-type ATC, and a Fanuc 0i-M control.
The Chevalier QP2560-L, also searched as QP 2560-L, QP2560L, QP 2560 L, or QP2560, is a 3-axis CNC vertical machining center (VMC).
Rapids are 1,181 IPM on X and Y and 944 IPM on Z, with cutting feeds from 39.3 to 393 IPM. The table holds up to 3,300 lbs. The Big Plus spindle has 4.9" to 29.9" from spindle nose to table and 27" from spindle center to column. Tool change time is 2 seconds, with a max tool diameter of 3.1", max tool length of 11.8", and max tool weight of 15.4 lbs. Approximate dimensions are 172" x 143.1" x 129.1", and approximate weight is 18,700 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 60" |
| Y | 25" |
| Z | 25" |
| Power | 20 hp |
| RPM | 10,000 RPM |
| # ATC | 24 |
| Taper | CAT 40 |
| Table-W | 25" |
| Table-L | 65" |
| # Axis | 3 |
| Control | CNC (Fanuc) |
Max Table Load: 3,300 lbs
Spindle Nose to Table: 4.9" to 29.9"
Spindle Center to Column: 27"
Spindle Diameter: 2.8"
Rapid Traverse (X/Y/Z): 1,181 / 1,181 / 944 IPM
Cutting Feed: 39.3 to 393 IPM
Tool Change Time (Tool to Tool): 2 Sec
Max Tool Diameter (Adjacent Tool): 3.1"
Max Tool Length: 11.8"
Max Tool Weight: 15.4 lbs
Pull Stud: P40T-1
Approximate Dimensions: 172" x 143.1" x 129.1"
Approximate Weight: 18,700 lbs
Fanuc 0i-M Control
Big Plus Spindle
24+1 Arm-Type ATC
