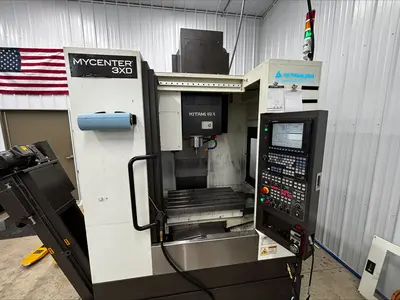

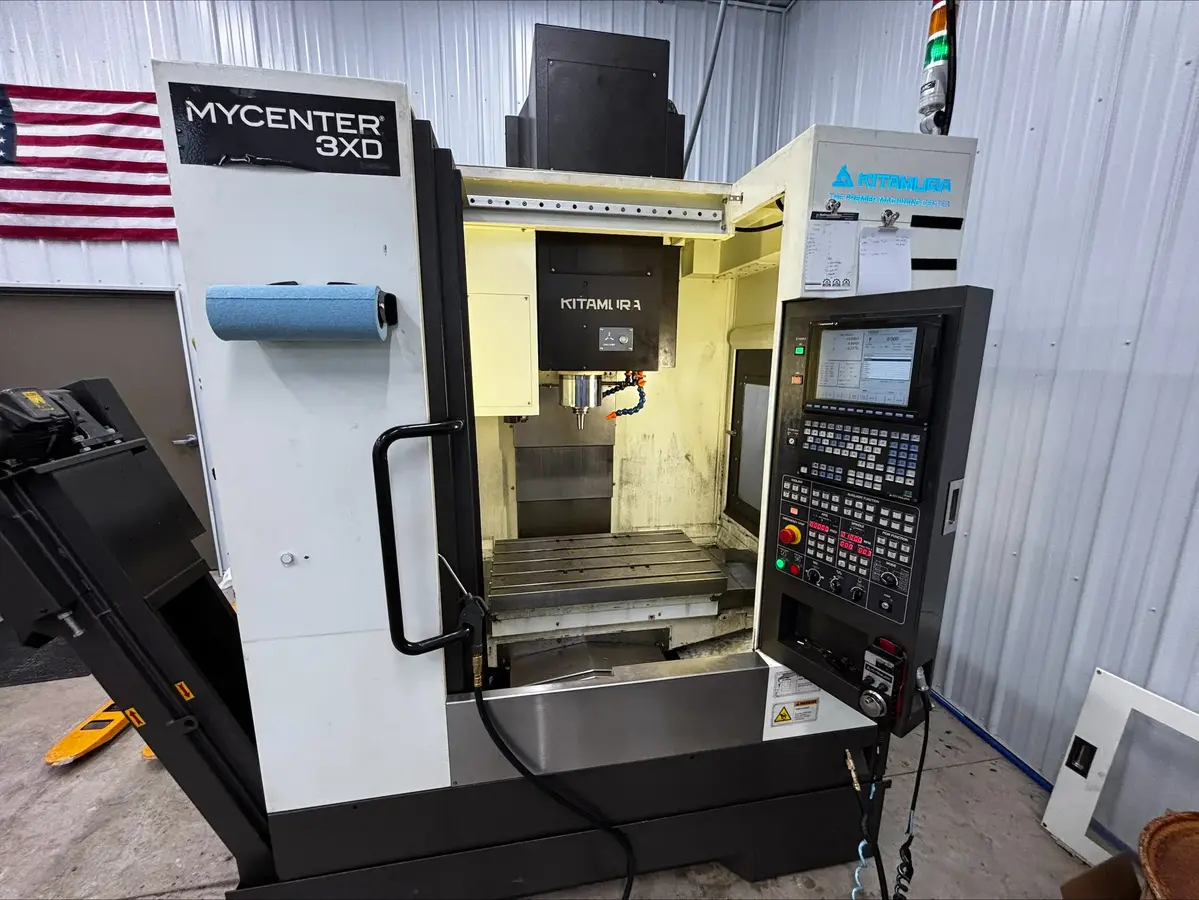

2014 Kitamura Mycenter 3XD Vertical Machining Center with New Spindle
Have one to sell?
ConditionUsed
1 available
This 2014 Kitamura Mycenter 3XD vertical machining center has a newly installed 12,000 RPM, 35 HP belt-drive spindle in a CAT 40 taper, with 29.9" x 20.1" x 20.1" of X, Y, and Z travel. It runs an Arumatik-Jr CNC control with a 24-position tool magazine, spindle chiller, through spindle coolant prep, and dual chip augers feeding a chip conveyor.
Pull Stud: DIN
Spindle Drive: Belt
Max Table Load: 1,760 lbs
T-Slots: 0.71" x 5
Distance from Table Top to Spindle Nose: 3.9" to 24.0"
Rapid Feed X, Y: 1,890 IPM
Rapid Feed Z: 1,654 IPM
Cutting Feed Rate X, Y: 787 IPM
Tool Selection: Memory Random
Max Tool Diameter: 3.0" (5.9" with Adjacent Pots Empty)
Max Tool Length: 9.4"
Max Tool Weight: 15.4 lbs
Tool Change Time: 2.3 Seconds
Approximate Floor Space: 96.5" x 88.3"
Through Spindle Coolant Ready
Spindle Chiller Unit
Main Spindle Coolant
Side Wash
Air Blast

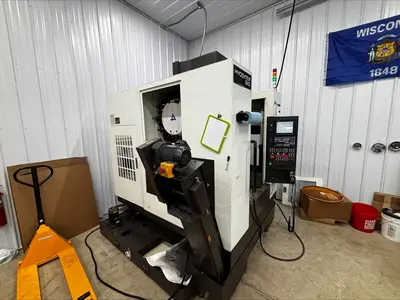

Dual Chip Augers with Chip Conveyor (Either Side Discharge)
Remote Manual Pulse Generator
3-Light Tower
THK Cross Roller Linear Guide Ways
Original Spindle Included
Recent Service

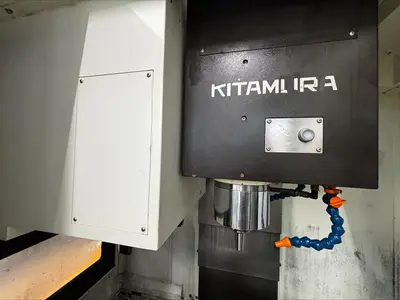

New Spindle Installed, 2026
This 2014 Kitamura Mycenter 3XD vertical machining center has a newly installed 12,000 RPM, 35 HP belt-drive spindle in a CAT 40 taper, with 29.9" x 20.1" x 20.1" of X, Y, and Z travel. It runs an Arumatik-Jr CNC control with a 24-position tool magazine, spindle chiller, through spindle coolant prep, and dual chip augers feeding a chip conveyor.
The Kitamura Mycenter 3XD, also searched as Kitamura Mycenter-3XD, MyCenter 3XD, or Kitamura 3XD, is a 3-axis vertical machining center (VMC, CNC mill).
This 2014 machine has a 33.9" x 19.7" table with a 1,760 lb max table load, rapid rates of 1,890 IPM on X and Y and 1,654 IPM on Z, and a 2.3 second tool change time. It also comes with main spindle coolant, side wash, air blast, a remote manual pulse generator, a 3-light tower, and DIN pull studs, with a chip conveyor that can discharge from either side and an approximate floor space of 96.5" x 88.3".
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 29.9" |
| Y | 20.1" |
| Z | 20.1" |
| Power | 35 hp |
| RPM | 12,000 RPM |
| # ATC | 24 |
| Taper | CT-40 |
| Table-W | 19.7" |
| Table-L | 33.9" |
| # Axis | 3 |
| Control | CNC (KITAMURA) |
Pull Stud: DIN
Spindle Drive: Belt
Max Table Load: 1,760 lbs
T-Slots: 0.71" x 5
Distance from Table Top to Spindle Nose: 3.9" to 24.0"
Rapid Feed X, Y: 1,890 IPM
Rapid Feed Z: 1,654 IPM
Cutting Feed Rate X, Y: 787 IPM
Tool Selection: Memory Random
Max Tool Diameter: 3.0" (5.9" with Adjacent Pots Empty)
Max Tool Length: 9.4"
Max Tool Weight: 15.4 lbs
Tool Change Time: 2.3 Seconds
Approximate Floor Space: 96.5" x 88.3"
Through Spindle Coolant Ready
Spindle Chiller Unit
Main Spindle Coolant
Side Wash
Air Blast
Dual Chip Augers with Chip Conveyor (Either Side Discharge)
Remote Manual Pulse Generator
3-Light Tower
THK Cross Roller Linear Guide Ways
Original Spindle Included
Recent Service
New Spindle Installed, 2026
