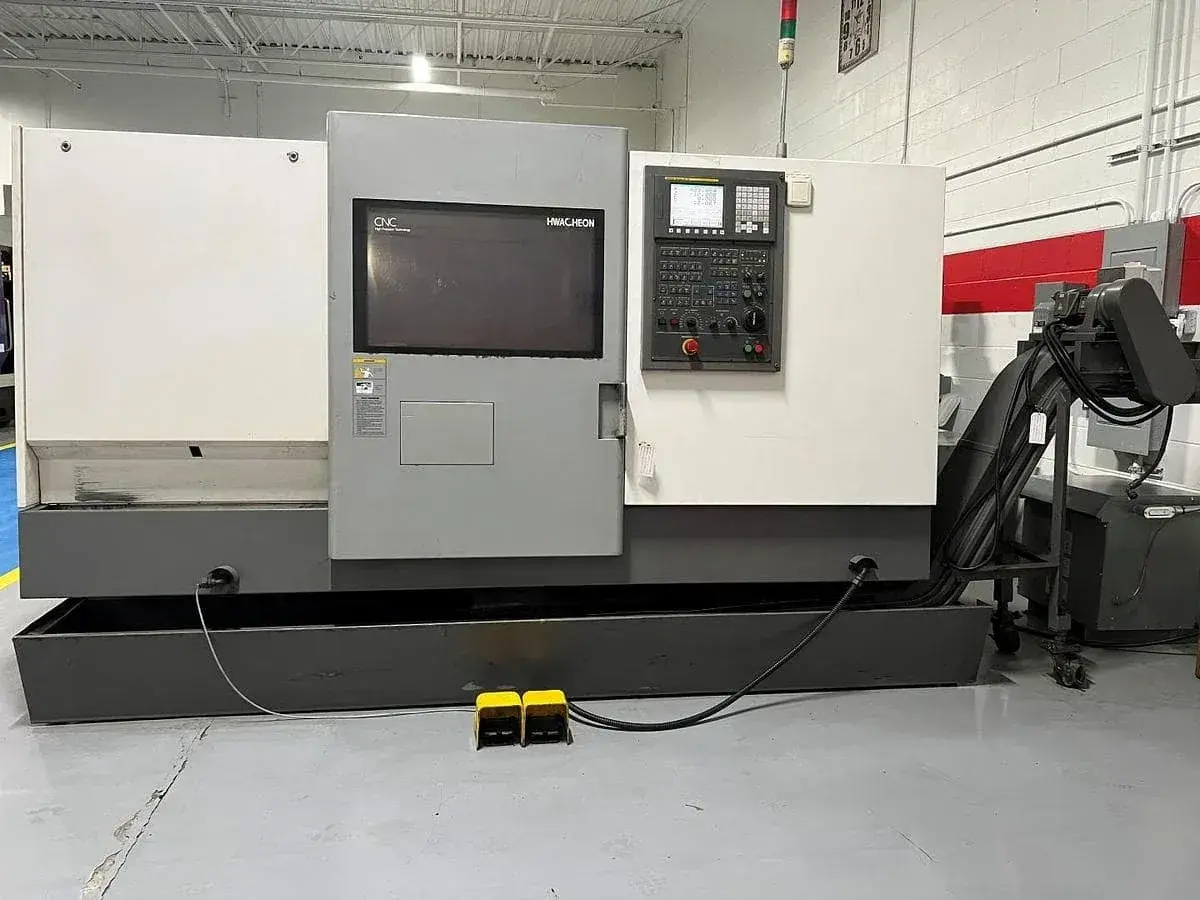

2006 Hwacheon CUTEX-240 CNC Lathe with Sub Spindle
Have one to sell?
ConditionUsed
1 available
This 2006 Hwacheon CUTEX-240 CNC lathe has a sub spindle with a 10 HP motor, paired with a 25 HP main spindle running up to 5,000 RPM on an A2-6 nose. Capacity includes 22.8" of swing over the bed, a 15" max turning diameter, 23.6" of machining length, an 8" chuck, and 2" bar capacity.
X-Axis Travel: 8.46"
Z-Axis Travel: 26.19"
Rapid Traverse Rate (X & Z): 1,417 IPM
Number of Turrets: 1
Tool Positions: 12
Spindle Nose: A2-6
Sub Spindle Motor: 10 HP
Approximate Dimensions: 127" x 71" x 75"
Approximate Weight: 9,260 lbs

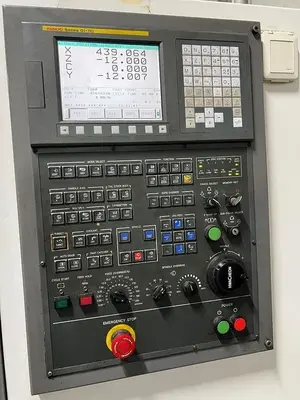

Fanuc 0i-TB Control
This 2006 Hwacheon CUTEX-240 CNC lathe has a sub spindle with a 10 HP motor, paired with a 25 HP main spindle running up to 5,000 RPM on an A2-6 nose. Capacity includes 22.8" of swing over the bed, a 15" max turning diameter, 23.6" of machining length, an 8" chuck, and 2" bar capacity.
The Hwacheon CUTEX-240, also searched as Hwacheon Cutex 240, CUTEX240, or Cutex-240, is a CNC turning center with a sub spindle.
This 2006 machine has 8.46" of X-axis travel and 26.19" of Z-axis travel, with rapid rates of 1,417 IPM on both axes. It runs a single 12-position turret and a Fanuc 0i-TB control, with approximate dimensions of 127" x 71" x 75" and an approximate weight of 9,260 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 22.8" |
| Machining Length | 23.6" |
| # Axis | 2 |
| Chuck Size | 8" |
| Bar Capacity | 2" |
| Power | 25 hp |
| Max RPM | 5,000 RPM |
| Turning Dia | 15" |
| Sub Spindle | Yes |
| Control | CNC (Fanuc) |
X-Axis Travel: 8.46"
Z-Axis Travel: 26.19"
Rapid Traverse Rate (X & Z): 1,417 IPM
Number of Turrets: 1
Tool Positions: 12
Spindle Nose: A2-6
Sub Spindle Motor: 10 HP
Approximate Dimensions: 127" x 71" x 75"
Approximate Weight: 9,260 lbs
Fanuc 0i-TB Control
