2005 Romi M20 CNC Lathe with 60" Between Centers
Have one to sell?
ConditionUsed
1 available

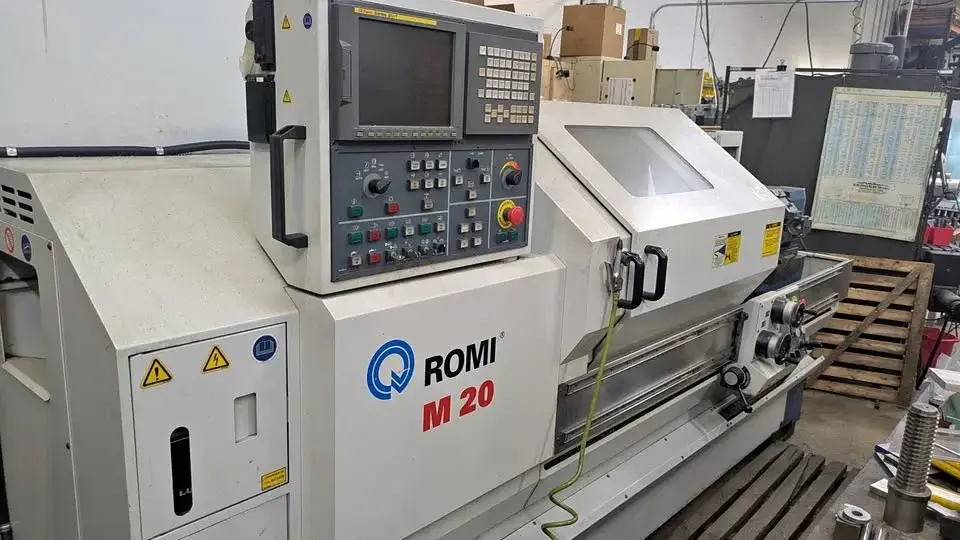

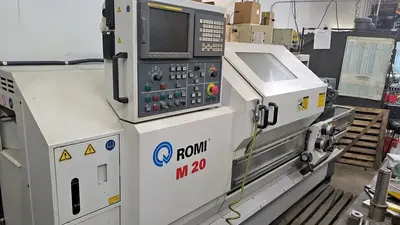

This 2005 Romi M20 CNC lathe has 60" between centers and 20.5" of swing over the bed, with a GE Fanuc 21i-T control, two MPG electronic handwheels for manual teach operation, and a Sauter tool turret. Its 15 HP spindle runs up to 2,200 RPM on an A2-6 nose with a 3.15" spindle bore.
X-Axis Travel: 11.02"
Z-Axis Travel: 60"
X-Axis Rapid: 295 IPM
Z-Axis Rapid: 394 IPM
Swing Over Cross Slide: 10.2"
Swing Over Saddle Wings: 17.7"
Center Height: 10.04"
Bed Width: 13.39"
Spindle Bore: 3.15"
Spindle Nose: A2-6
Tailstock Quill Diameter: 3.15"
Tailstock Quill Travel: 5.12"
Tailstock Quill Taper: 4 MT
Electrical: 220V to 240V, 3-Phase, 60 Hz
Approximate Dimensions: 124" x 65" x 78" (L x W x H)
Approximate Weight: 8,000 lbs

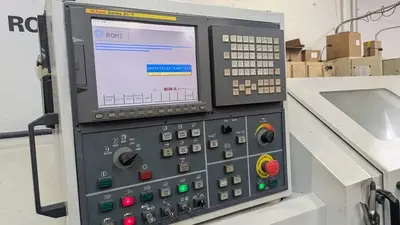

GE Fanuc Series 21i-T Control

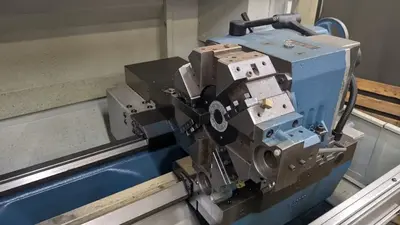

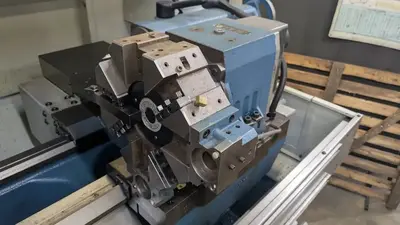

Sauter Tool Turret
Two MPG Electronic Handwheels
CNC/Manual Teach Operation
This 2005 Romi M20 CNC lathe has 60" between centers and 20.5" of swing over the bed, with a GE Fanuc 21i-T control, two MPG electronic handwheels for manual teach operation, and a Sauter tool turret. Its 15 HP spindle runs up to 2,200 RPM on an A2-6 nose with a 3.15" spindle bore.
The Romi M20, also searched as Romi M 20, Romi M-20, or Romi M20 x 60, is a flat-bed CNC teach lathe (combination CNC and manual lathe).
This 2005 machine has 11.02" of X-axis travel and 60" of Z-axis travel, with rapid rates of 295 IPM on X and 394 IPM on Z. It offers 10.2" of swing over the cross slide, 17.7" over the saddle wings, a 10.04" center height, and a 13.39" bed width, with a tailstock carrying a 3.15" quill, 5.12" of quill travel, and a 4 MT taper. Approximate dimensions are 124" x 65" x 78", with an approximate weight of 8,000 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 20.5" |
| Machining Length | 60" |
| # Axis | 2 |
| Bar Capacity | 3" |
| Power | 15 hp |
| Max RPM | 2,200 RPM |
| Turning Dia | 20.47" |
| Tailstock | Yes |
| Control | CNC (Fanuc) |
X-Axis Travel: 11.02"
Z-Axis Travel: 60"
X-Axis Rapid: 295 IPM
Z-Axis Rapid: 394 IPM
Swing Over Cross Slide: 10.2"
Swing Over Saddle Wings: 17.7"
Center Height: 10.04"
Bed Width: 13.39"
Spindle Bore: 3.15"
Spindle Nose: A2-6
Tailstock Quill Diameter: 3.15"
Tailstock Quill Travel: 5.12"
Tailstock Quill Taper: 4 MT
Electrical: 220V to 240V, 3-Phase, 60 Hz
Approximate Dimensions: 124" x 65" x 78" (L x W x H)
Approximate Weight: 8,000 lbs
GE Fanuc Series 21i-T Control
Sauter Tool Turret
Two MPG Electronic Handwheels
CNC/Manual Teach Operation
