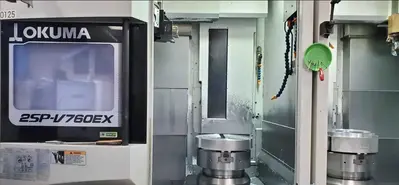

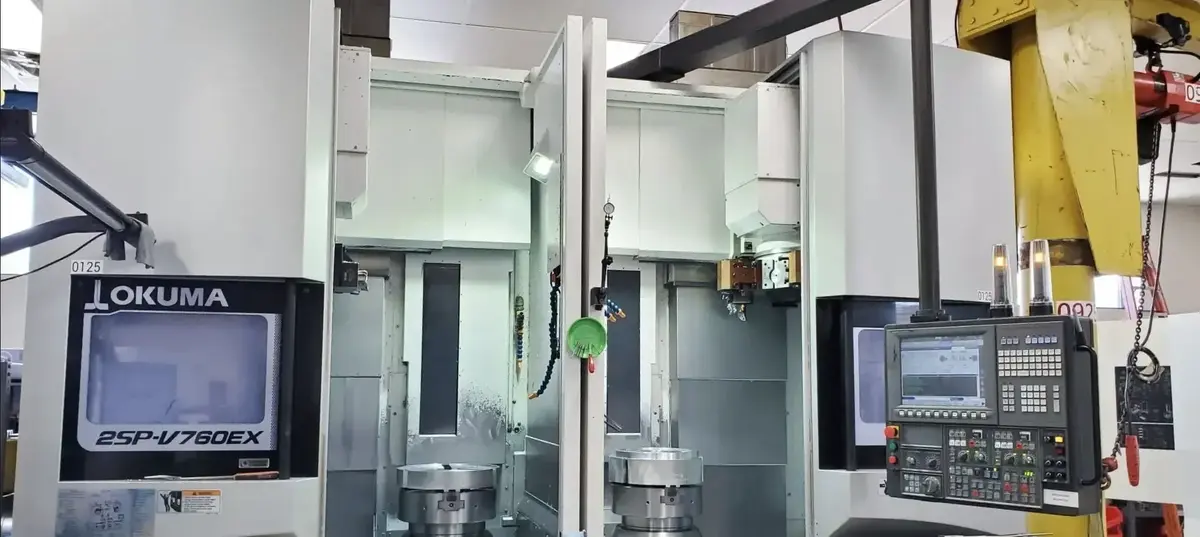

2021 Okuma 2SP-V760EX Vertical Turret Lathe with Live Tooling
Have one to sell?
ConditionUsed
1 available
This 2021 Okuma 2SP-V760EX is a twin-spindle CNC vertical turret lathe with two 12-station turrets, both with live milling, running an Okuma OSP-P300LA control. Each spindle carries an 18" hydraulic chuck with 40 HP and a max speed of 2,000 RPM, with a 31.5" max swing, 29.92" max cutting diameter, and 30.31" max cutting length
Max Swing: 31.5"
Max Cutting Diameter: 29.92"
Max Cutting Length: 30.31"
X-Axis Travel: 15.35"
Z-Axis Travel: 30.31"
Spindle Speed: 2,000 RPM
Spindle Motor: 40 HP (Each Spindle)
Spindle Nose: A2-11
Live Tooling Speed: 4,000 RPM
Live Tooling Motor: 10 HP
Turret Positions: 12 Per Turret
Max Weight on Table: 1,100 lbs
Approximately 3,689 Cutting Hours (as of September 2026)

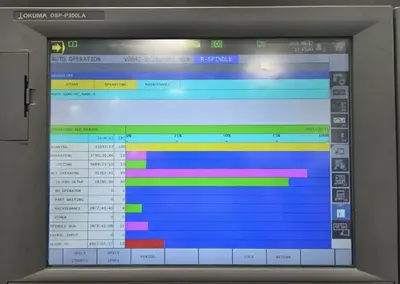

Okuma OSP-P300LA Control
Twin Spindles

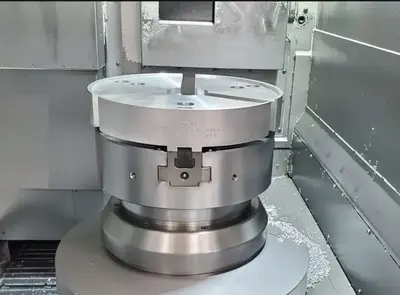

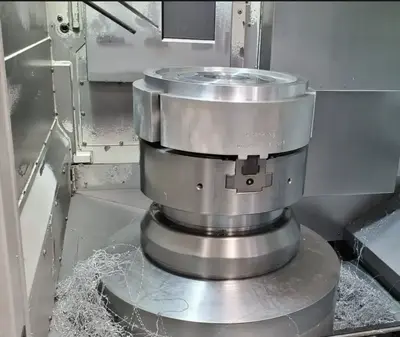

Two 18" 3-Jaw Closed-Center Hydraulic Chucks
Two 12-Station Turrets with Live Milling
Four Axial Live Tool Holders
Four Radial Live Tool Holders
Assortment of Static Tool Holders
Touch Setter on Both Spindles
Rear-Discharge Chip Conveyor
Two 300 PSI MP Systems Coolant Pumps
Prepared for 1,000 PSI High-Pressure Coolant
Thermal Compensation
Advanced One-Touch IGF
Helical Cutting for X/Z/C Axes
Negative Tool Radius Compensation
This 2021 Okuma 2SP-V760EX is a twin-spindle CNC vertical turret lathe with two 12-station turrets, both with live milling, running an Okuma OSP-P300LA control. Each spindle carries an 18" hydraulic chuck with 40 HP and a max speed of 2,000 RPM, with a 31.5" max swing, 29.92" max cutting diameter, and 30.31" max cutting length
The Okuma 2SP-V760EX, also searched as Okuma 2SP V760EX, 2SPV760EX, 2SP-V760, or V760EX, is a twin-spindle CNC vertical turret lathe (VTL), also called a vertical turning center or vertical lathe, with live tooling.
This 2021 machine has 15.35" of X-axis travel and 30.31" of Z-axis travel, with A2-11 spindle noses and a 1,100 lb max table load. The live tooling runs up to 4,000 RPM with 10 HP, and the machine comes equipped with touch setters on both spindles, a rear-discharge chip conveyor, two 300 PSI coolant pumps with prep for 1,000 PSI high-pressure coolant, thermal compensation, Advanced One-Touch IGF, four axial and four radial live tool holders, and an assortment of static tool holders, with approximately 3,689 cutting hours as of September 2026.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 31.5" |
| # Axis | 4 |
| Chuck Size | 18" |
| Power | 40 hp |
| Max RPM | 2,000 RPM |
| Turning Dia | 29.92" |
| Tailstock | 'No' |
| Live Tooling | 'Yes' |
| Sub Spindle | 'No' |
| Control | CNC (OKUMA) |
Max Swing: 31.5"
Max Cutting Diameter: 29.92"
Max Cutting Length: 30.31"
X-Axis Travel: 15.35"
Z-Axis Travel: 30.31"
Spindle Speed: 2,000 RPM
Spindle Motor: 40 HP (Each Spindle)
Spindle Nose: A2-11
Live Tooling Speed: 4,000 RPM
Live Tooling Motor: 10 HP
Turret Positions: 12 Per Turret
Max Weight on Table: 1,100 lbs
Approximately 3,689 Cutting Hours (as of September 2026)
Okuma OSP-P300LA Control
Twin Spindles
Two 18" 3-Jaw Closed-Center Hydraulic Chucks
Two 12-Station Turrets with Live Milling
Four Axial Live Tool Holders
Four Radial Live Tool Holders
Assortment of Static Tool Holders
Touch Setter on Both Spindles
Rear-Discharge Chip Conveyor
Two 300 PSI MP Systems Coolant Pumps
Prepared for 1,000 PSI High-Pressure Coolant
Thermal Compensation
Advanced One-Touch IGF
Helical Cutting for X/Z/C Axes
Negative Tool Radius Compensation
