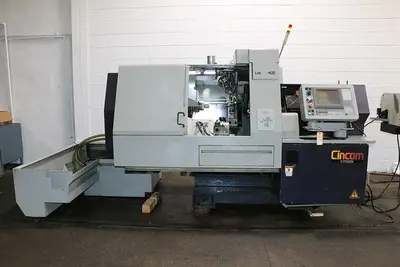

2003 Citizen M-20 III CNC Swiss Lathe with Bar Feed
Have one to sell?
ConditionUsed
1 available

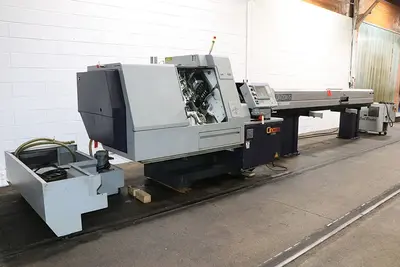

This 2003 Citizen M-20 III CNC Swiss lathe comes with a CAV 20M-IS magazine bar feed, Cool Blaster high pressure coolant, and full C-axis on both the main and sub spindles. It handles 0.75" bar with up to 12.59" of machining length per chucking. The 7.5 HP main spindle runs to 10,000 RPM, and a 12-station turret and gang plate carry rotary tools that reach 5,000 RPM.
Axes: X1, Y1, Z1, C1, X2, Z2, C2, X3, Z3 (Misc Axes: TI, A1, A2, A3)
Max Machining Length per Chucking: 12.59"
Rotary Tool Speed (Turret and Gang Plate): 200 to 5,000 RPM
Back Working Max Chucking Diameter: 0.75"
Max Back Working Length: 5.7"
Max Back Working Drilling/Tapping: M8

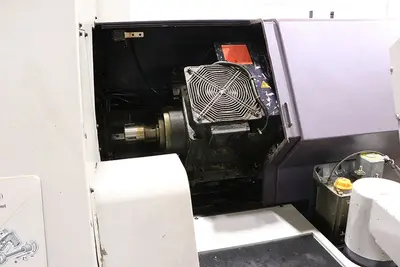

Back Spindle Speed: 200 to 8,000 RPM

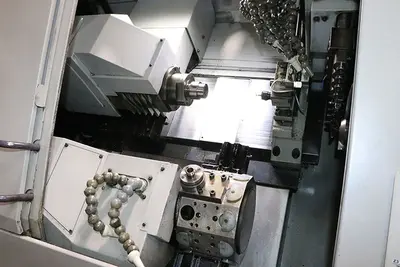

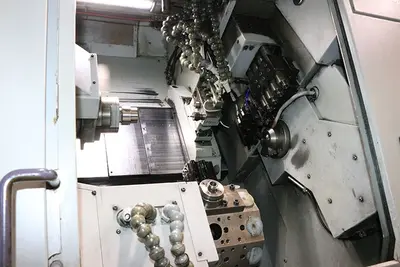

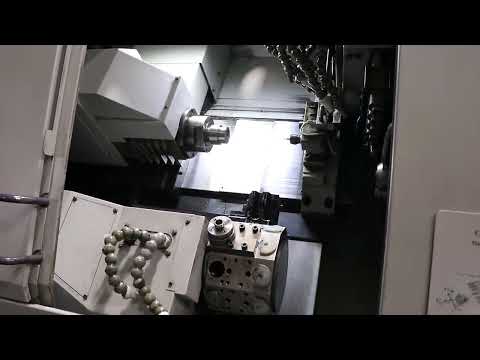

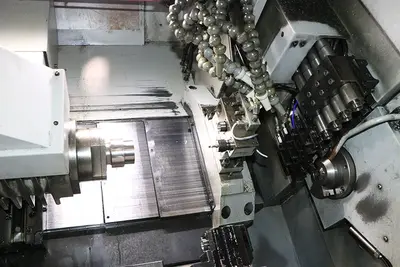

Turret Tooling: 12 (24 in Half Index Mode)
Gang Tooling: 5 Turning + 4 Rotary

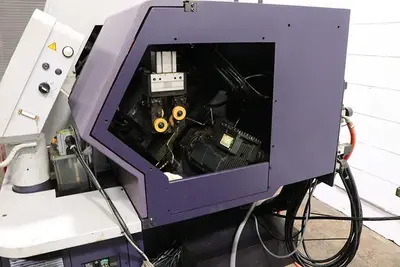

Back Spindle Tool Post: 3 (Rear Facing Tools)
Gang Tool Size: 0.63" x 0.63" x 5.12"
Turret Tool Size: 0.63" x 0.63" x 3.54"
Rotary Tool / Back Spindle Motors: 2 HP / 3 HP

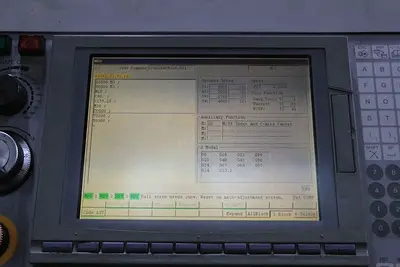

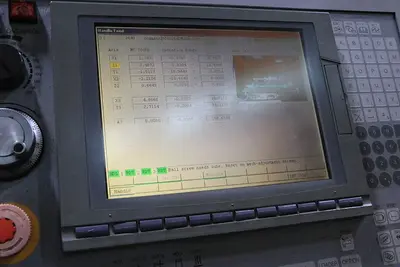

Cincom M6B (Mitsubishi 635LCC) CNC Control

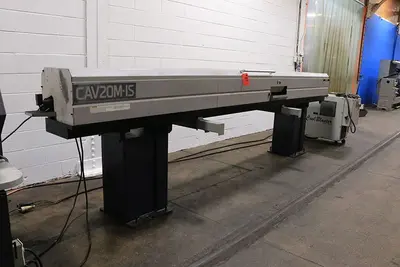

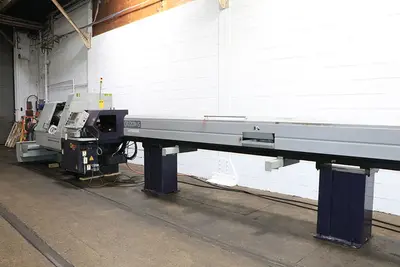

CAV 20M-IS Magazine Bar Feed

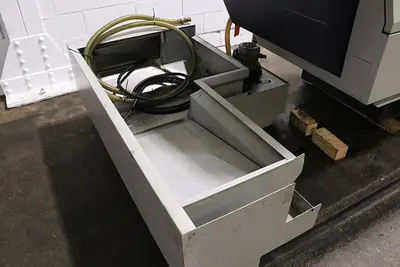

Cool Blaster High Pressure Coolant
Full C-Axis Main and Sub Spindles
This 2003 Citizen M-20 III CNC Swiss lathe comes with a CAV 20M-IS magazine bar feed, Cool Blaster high pressure coolant, and full C-axis on both the main and sub spindles. It handles 0.75" bar with up to 12.59" of machining length per chucking. The 7.5 HP main spindle runs to 10,000 RPM, and a 12-station turret and gang plate carry rotary tools that reach 5,000 RPM.
The Citizen M-20 III, also searched as Citizen M20 III, M20-III, M-20III, M20 Type 3, or Citizen Cincom M20, is a CNC Swiss-type lathe (sliding headstock automatic) with live tooling and a sub spindle.
This 2003 machine runs on a Cincom M6B (Mitsubishi 635LCC) control with X1, Y1, Z1, C1, X2, Z2, C2, X3, and Z3 axes. Its back working side handles a 0.75" chucking diameter and 5.7" length with M8 drilling and tapping, and the back spindle runs from 200 to 8,000 RPM. The turret holds 24 tools in half index mode, the gang plate has 5 turning and 4 rotary tools, and the back spindle tool post holds 3 tools. Rotary tool and back spindle motors are 2 HP and 3 HP. Approximate dimensions are 110" x 50" x 72", and approximate weight is 6,100 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Spindle Hole Dia | 0.75" |
| Power | 7.5 hp |
| RPM | 10,000 RPM |
| # Axis | 9 |
| Control | CNC (Mitsubishi) |
| Dimensions | 110" x 50" x 72" |
| Weight | 6,100 lbs |
Axes: X1, Y1, Z1, C1, X2, Z2, C2, X3, Z3 (Misc Axes: TI, A1, A2, A3)
Max Machining Length per Chucking: 12.59"
Rotary Tool Speed (Turret and Gang Plate): 200 to 5,000 RPM
Back Working Max Chucking Diameter: 0.75"
Max Back Working Length: 5.7"
Max Back Working Drilling/Tapping: M8
Back Spindle Speed: 200 to 8,000 RPM
Turret Tooling: 12 (24 in Half Index Mode)
Gang Tooling: 5 Turning + 4 Rotary
Back Spindle Tool Post: 3 (Rear Facing Tools)
Gang Tool Size: 0.63" x 0.63" x 5.12"
Turret Tool Size: 0.63" x 0.63" x 3.54"
Rotary Tool / Back Spindle Motors: 2 HP / 3 HP
Cincom M6B (Mitsubishi 635LCC) CNC Control
CAV 20M-IS Magazine Bar Feed
Cool Blaster High Pressure Coolant
Full C-Axis Main and Sub Spindles
