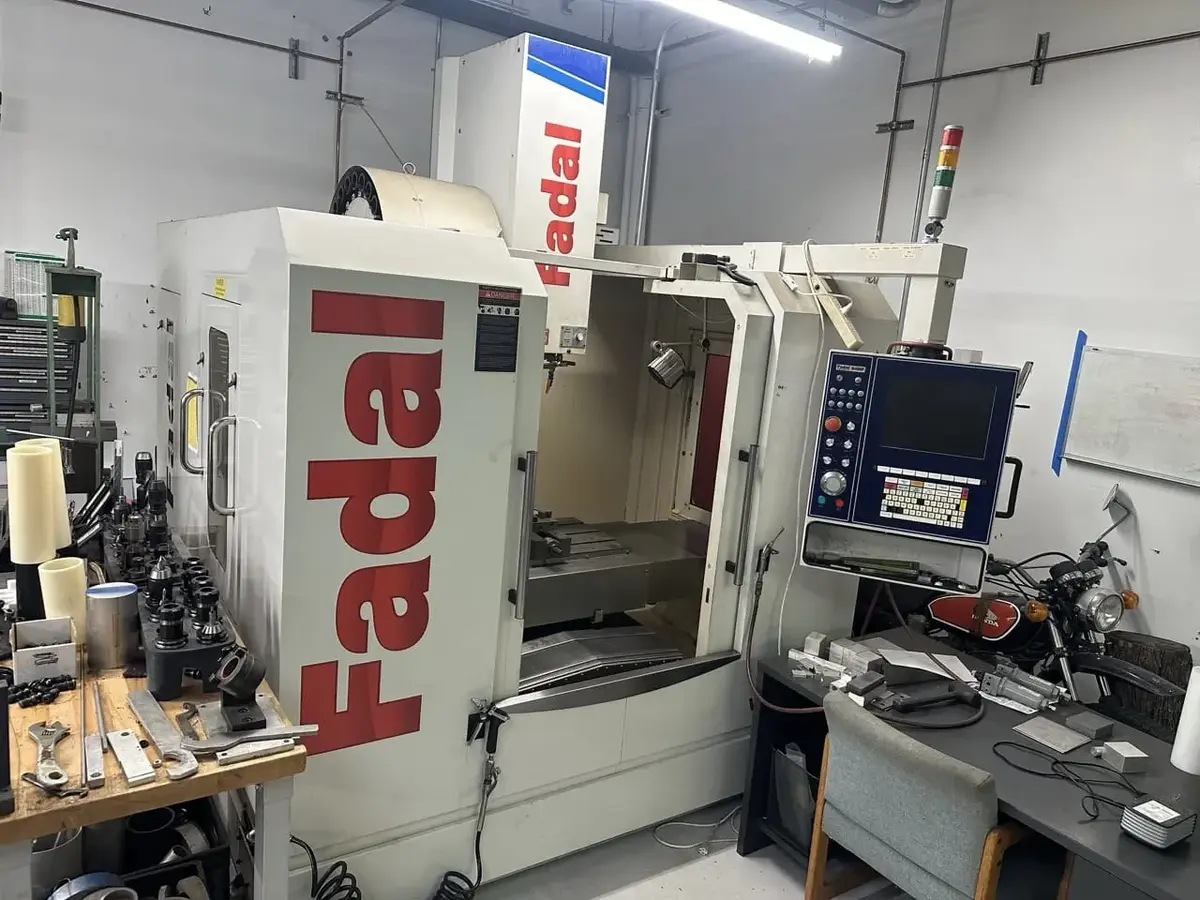

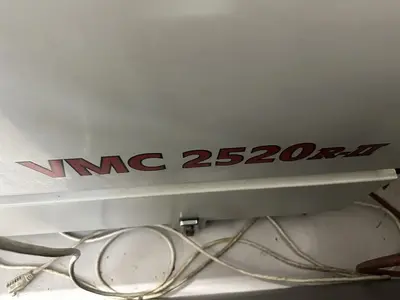

2017 Fadal VMC 2520R-II Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
This 2017 Fadal VMC 2520R-II vertical machining center runs a Fadal 64MP control with a 24-position side mount tool changer, rigid tapping, and linear roller bearing ways. Travels measure 25.5" x 20" x 20" over a 31.6" x 17.75" table, and the 15 HP CAT40 spindle reaches 10,000 RPM.
Max Table Load: 990 lbs
Rapid Traverse (X, Y, Z): 1,187 IPM
Electrical Requirements: 220V, 3 Ph, 60 Hz
Approximate Weight: 11,000 lbs
Approximate Dimensions: 100" x 96" x 104"

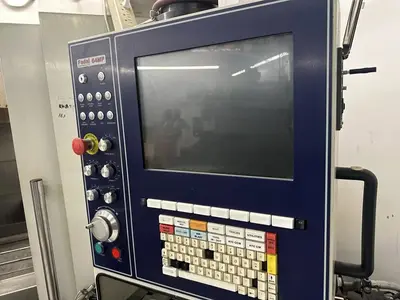

Fadal 64MP CNC Control
Rigid Tapping
Side Mount Tool Changer
Linear Roller Bearing Ways
Spindle Oil Cooler
Spindle Air Blast
Auto Lube System
LED Lighting
This 2017 Fadal VMC 2520R-II vertical machining center runs a Fadal 64MP control with a 24-position side mount tool changer, rigid tapping, and linear roller bearing ways. Travels measure 25.5" x 20" x 20" over a 31.6" x 17.75" table, and the 15 HP CAT40 spindle reaches 10,000 RPM.
The Fadal VMC 2520R-II, also searched as Fadal VMC-2520R-II, VMC 2520 R-II, VMC 2520R, or VMC 2520, is a 3-axis CNC vertical machining center (VMC).
Rapid traverse is 1,187 IPM on X, Y, and Z, and the table carries a maximum load of 990 lbs. It also comes equipped with a spindle oil cooler, spindle air blast, auto lube system, and LED lighting, runs on 220V 3-phase power, and has approximate dimensions of 100" x 96" x 104" with an approximate weight of 11,000 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 25.5" |
| Y | 20" |
| Z | 20" |
| Power | 15 hp |
| RPM | 10,000 RPM |
| # ATC | 24 |
| Taper | CT-40 |
| Table-W | 17.7" |
| Table-L | 31.6" |
| # Axis | 3 |
| Control | CNC (Fadal) |
Max Table Load: 990 lbs
Rapid Traverse (X, Y, Z): 1,187 IPM
Electrical Requirements: 220V, 3 Ph, 60 Hz
Approximate Weight: 11,000 lbs
Approximate Dimensions: 100" x 96" x 104"
Fadal 64MP CNC Control
Rigid Tapping
Side Mount Tool Changer
Linear Roller Bearing Ways
Spindle Oil Cooler
Spindle Air Blast
Auto Lube System
LED Lighting
