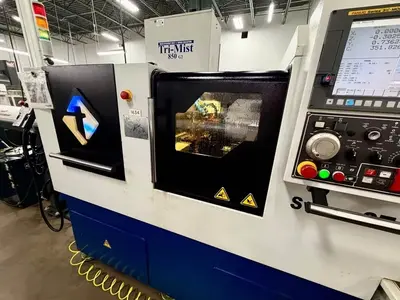

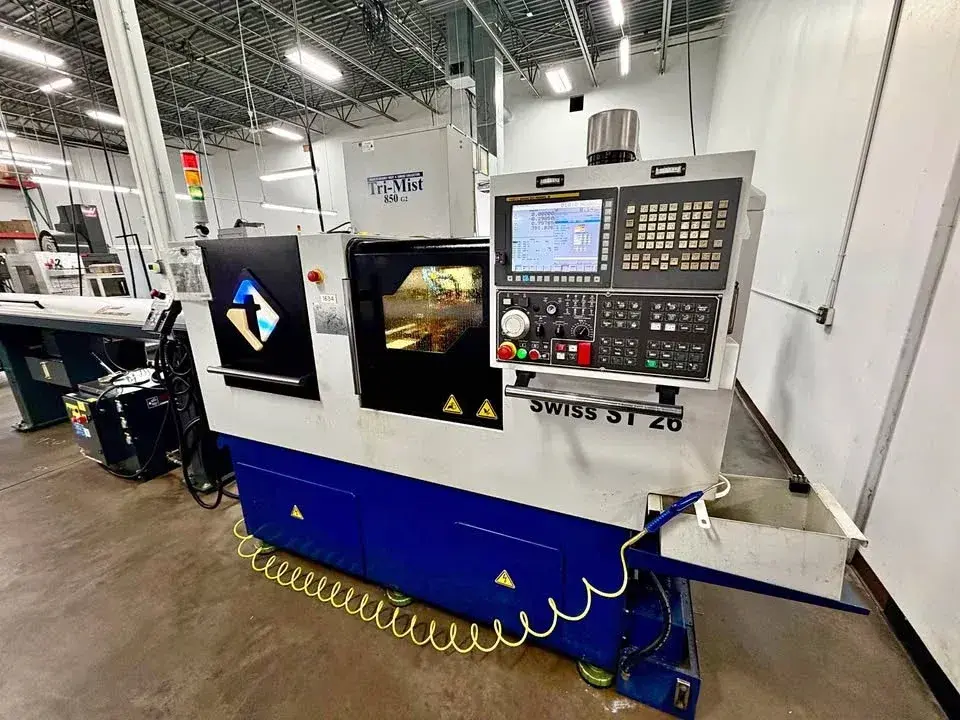

2013 Tornos ST26 Swiss Lathe with High Pressure Coolant
Have one to sell?
ConditionUsed
1 available
This 2013 Tornos ST26 Swiss type CNC lathe is equipped with an LNS ChipBlaster high pressure coolant system, an LNS bar feeder, Y-axis, and a 10,000 RPM second spindle with a 12.5 HP motor. The main spindle runs 13 HP at 10,000 RPM with 1.02" bar capacity and 8.66" of max turning length, and the machine holds 18 tool positions, including 8 rotating tools at up to 6,000 RPM.
Number of Axes: 5
Bar Capacity: 1.02"
Spindle Speed: 10,000 RPM
Spindle Motor: 13 HP
Max Turning Length: 8.66"
Number of Tool Positions: 18
Number of Rotating Tools: 8
Max RPM Rotating Tools: 6,000 RPM
Live Tool Motor: 1.5 HP
Cross Section of Turning Tools: 0.5" x 0.5"
Second Spindle RPM: 10,000 RPM
Second Spindle Motor: 12.5 HP
Power Requirements: 400V, 3-Phase, 50/60 Hz, 20 kVA
Approximate Weight: 7,716.18 lbs

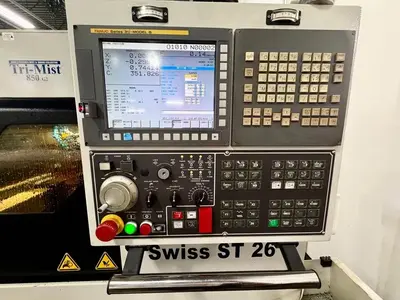

Fanuc 31i-Model B CNC Control

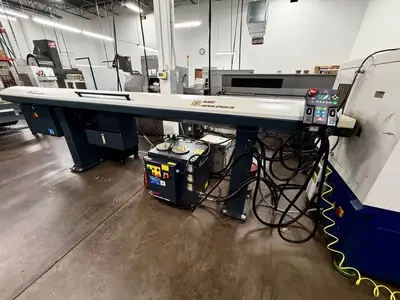

LNS Bar Feeder

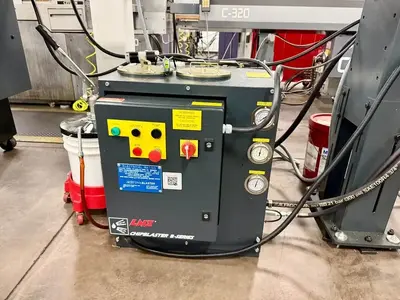

LNS ChipBlaster B-Series High Pressure Coolant
Live Tooling
Y-Axis
Sub Spindle
Parts Catcher
This 2013 Tornos ST26 Swiss type CNC lathe is equipped with an LNS ChipBlaster high pressure coolant system, an LNS bar feeder, Y-axis, and a 10,000 RPM second spindle with a 12.5 HP motor. The main spindle runs 13 HP at 10,000 RPM with 1.02" bar capacity and 8.66" of max turning length, and the machine holds 18 tool positions, including 8 rotating tools at up to 6,000 RPM.
The Tornos ST26, also searched as Tornos Swiss ST 26, ST 26, or ST-26, is a Swiss type CNC automatic lathe (sliding headstock lathe, Swiss screw machine) with Y-axis, live tooling, and a sub spindle.
This 2013 machine runs a Fanuc 31i-Model B control and comes with a parts catcher, a 1.5 HP live tool motor, and 0.5" x 0.5" turning tool capacity. It is set up for 400V, 3-phase power and has an approximate weight of 7,716.18 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Spindle Hole Dia | 1.02" |
| Power | 13 hp |
| RPM | 10,000 RPM |
| # Axis | 9 |
| Control | CNC (Fanuc) |
Number of Axes: 5
Bar Capacity: 1.02"
Spindle Speed: 10,000 RPM
Spindle Motor: 13 HP
Max Turning Length: 8.66"
Number of Tool Positions: 18
Number of Rotating Tools: 8
Max RPM Rotating Tools: 6,000 RPM
Live Tool Motor: 1.5 HP
Cross Section of Turning Tools: 0.5" x 0.5"
Second Spindle RPM: 10,000 RPM
Second Spindle Motor: 12.5 HP
Power Requirements: 400V, 3-Phase, 50/60 Hz, 20 kVA
Approximate Weight: 7,716.18 lbs
Fanuc 31i-Model B CNC Control
LNS Bar Feeder
LNS ChipBlaster B-Series High Pressure Coolant
Live Tooling
Y-Axis
Sub Spindle
Parts Catcher
