2005 Mag VTC-1600 Vertical Turning Center with Live Tooling
Have one to sell?
ConditionUsed
1 available
This 2005 Mag VTC-1600 vertical turning center pairs live tool milling with C-axis and a 2-position pallet changer, running on a Fanuc 31i Model A control. It has a 63" chuck, 78.7" of swing, and 68.9" of ram travel, with a 100 HP table motor at 450 RPM and a 44 HP live tool spindle rated to 4,000 RPM.
Chuck Size: 63"
Swing: 78.7"
Turning Diameter: 78.7"
Ram Travel: 68.9"
Table Motor: 100 HP
Max Spindle Speed: 450 RPM
Live Tool Spindle Speed: 4,000 RPM
Live Tooling Motor: 44 HP
Electrical: 480V, 3-Phase, 60 Hz

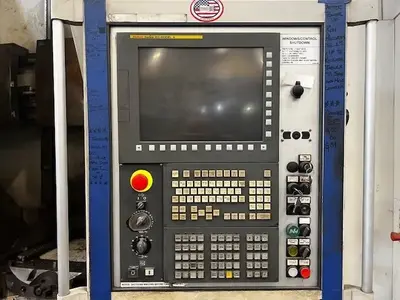

Fanuc 31i Model A CNC Control
Live Tool Milling with C-Axis

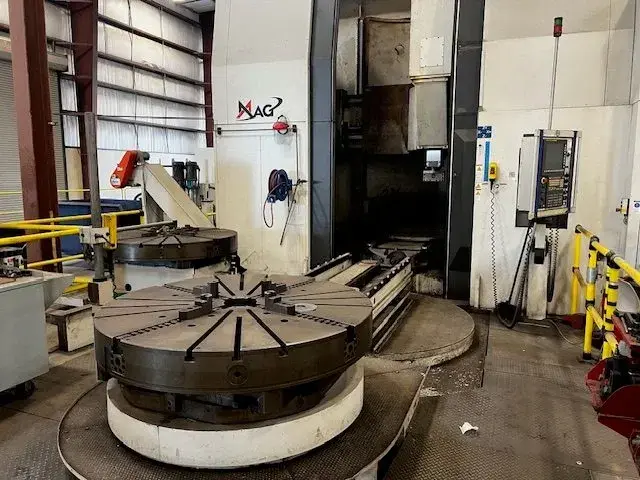

2-Position Pallet Changer
60-Position Automatic Tool Changer
8-Pocket WedgeLock/Modular Adapter Tool Drawer
Through Spindle Coolant

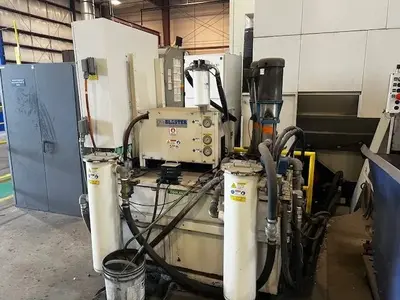

High-Pressure Coolant Chip Blaster

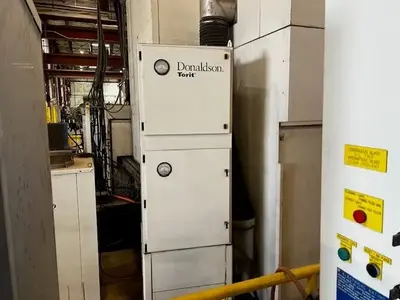

Donaldson Mist Collection

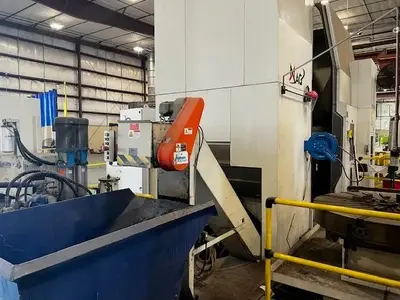

Chip Conveyor
This 2005 Mag VTC-1600 vertical turning center pairs live tool milling with C-axis and a 2-position pallet changer, running on a Fanuc 31i Model A control. It has a 63" chuck, 78.7" of swing, and 68.9" of ram travel, with a 100 HP table motor at 450 RPM and a 44 HP live tool spindle rated to 4,000 RPM.
The Mag VTC-1600, also searched as Mag VTC 1600 or VTC1600, is a CNC vertical turning center, also known as a vertical turret lathe (VTL) or vertical boring mill.
This 2005 machine has a 78.7" turning diameter and a 60-position automatic tool changer with an 8-pocket WedgeLock/modular adapter tool drawer. It comes equipped with through spindle coolant, a high-pressure coolant chip blaster, Donaldson mist collection, and a chip conveyor, and runs on 480V, 3-phase, 60 Hz power.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Table Dia | 63" |
| Swing | 78.7" |
| Work Ht-U/R | 59.1" |
| Power | 100 hp |
| RPM | 450 RPM |
| Control | CNC (Fanuc) |
Chuck Size: 63"
Swing: 78.7"
Turning Diameter: 78.7"
Ram Travel: 68.9"
Table Motor: 100 HP
Max Spindle Speed: 450 RPM
Live Tool Spindle Speed: 4,000 RPM
Live Tooling Motor: 44 HP
Electrical: 480V, 3-Phase, 60 Hz
Fanuc 31i Model A CNC Control
Live Tool Milling with C-Axis
2-Position Pallet Changer
60-Position Automatic Tool Changer
8-Pocket WedgeLock/Modular Adapter Tool Drawer
Through Spindle Coolant
High-Pressure Coolant Chip Blaster
Donaldson Mist Collection
Chip Conveyor
