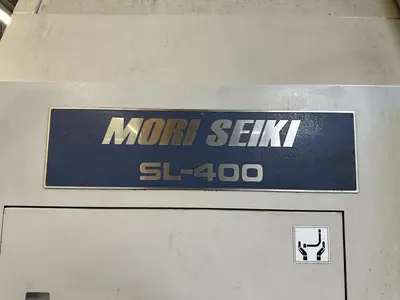

1999 Mori Seiki SL-400 BMC/2000 CNC Lathe with Live Tooling and Steady Rest
Have one to sell?
ConditionUsed
1 available

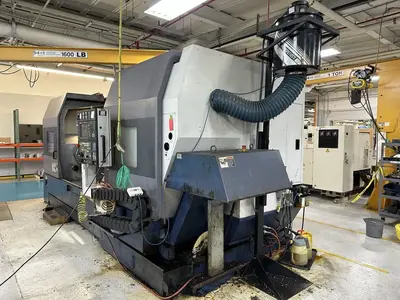

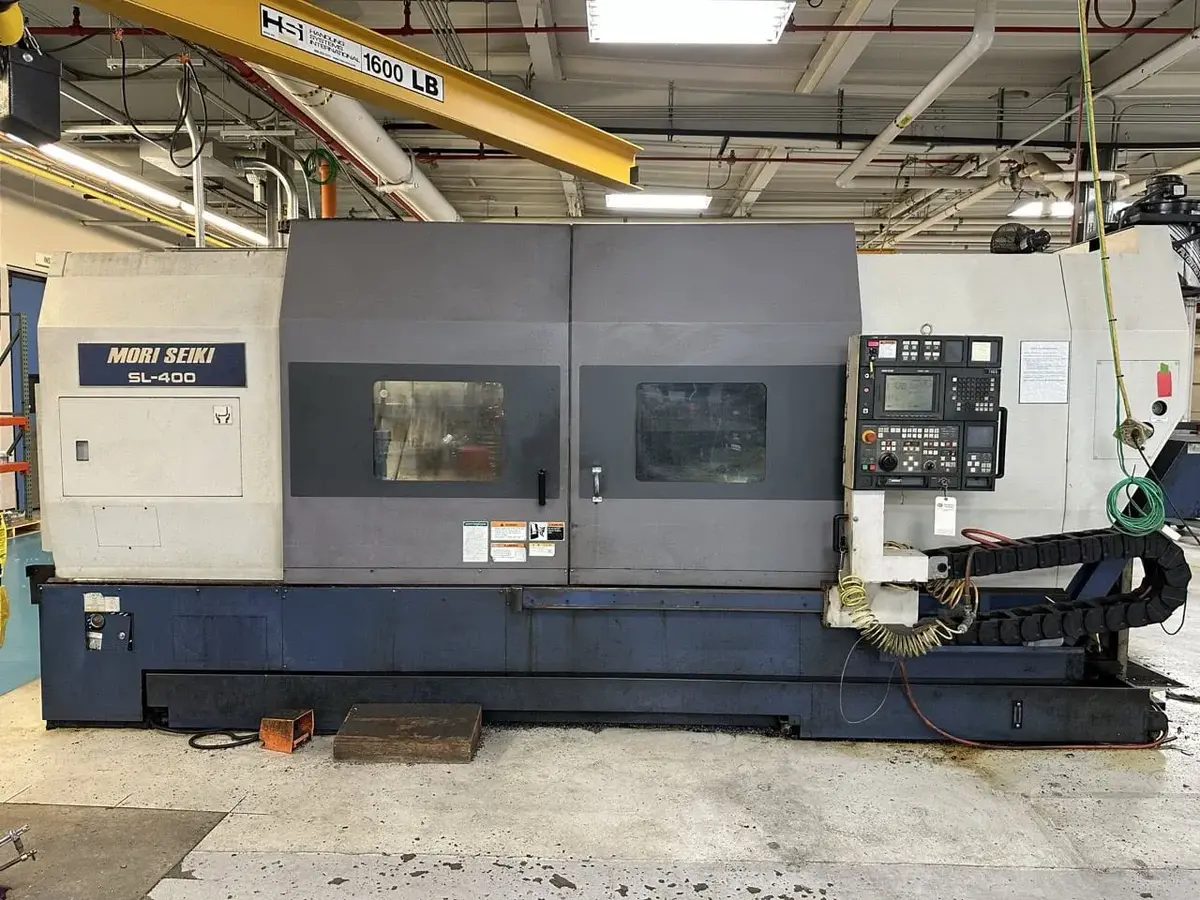

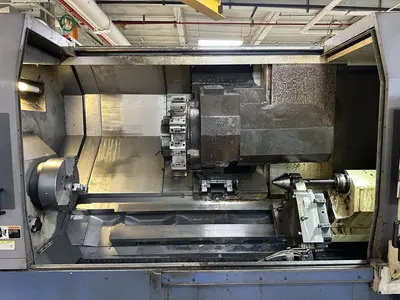

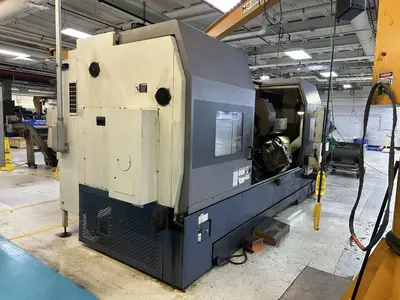

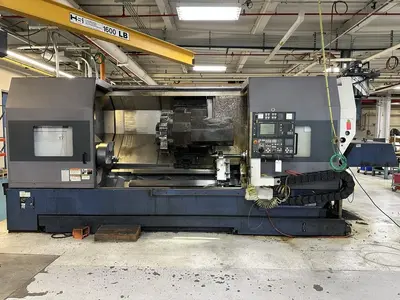

This 1999 Mori Seiki SL-400 BMC/2000 CNC lathe has a 12-station live tooling turret, an SMW Autoblok hydraulic self-centering steady rest, and an 18" Kitagawa 3-jaw hydraulic chuck. It offers 36.8" of swing over the bed, a 33.9" max turning length, and 5.11" bar capacity, with a 40 HP spindle that runs up to 2,400 RPM.
Distance Between Centers: 40.0"
X-Axis Travel: 11.3"
Z-Axis Travel: 36.0"
C-Axis: 0.01
Rapid Traverse X-Axis: 710 IPM
Rapid Traverse Z-Axis: 710 IPM
Spindle Nose: A2-11
Spindle Bore: 5.2"

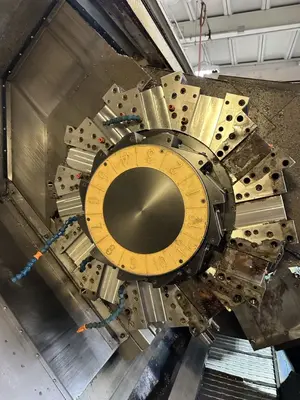

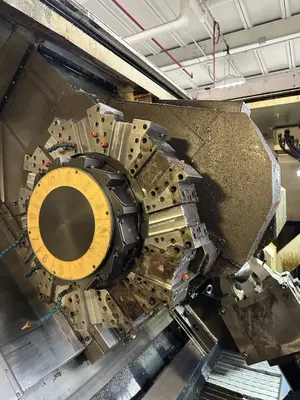

Turret Capacity: 12 Live Stations
Turret Index Time: 1 Second
Tailstock Taper: MT-4
Tailstock Body Travel: 24.0"
Approximate Dimensions: 230" x 102" x 104"
Approximate Weight: 25,000 lbs
Live Tooling

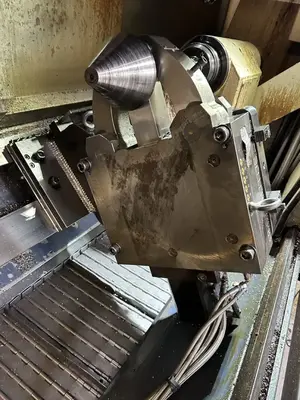

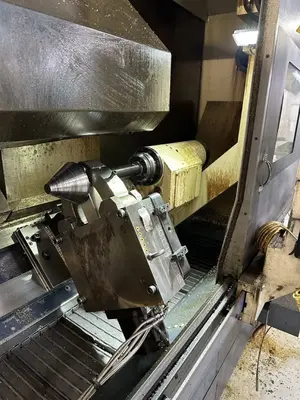

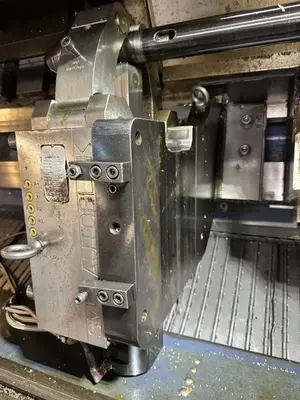

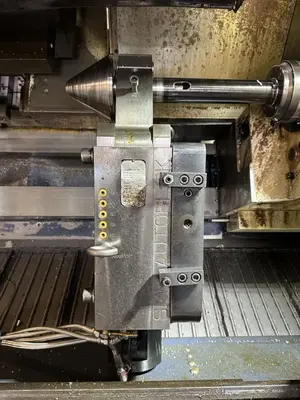

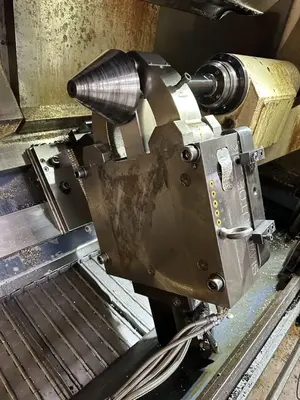

SMW Autoblok SLU-5.0/Z Hydraulic Self-Centering Steady Rest

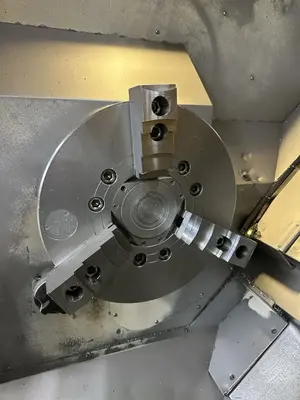

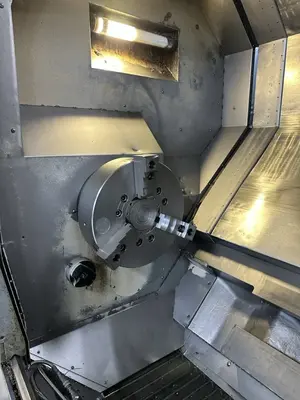

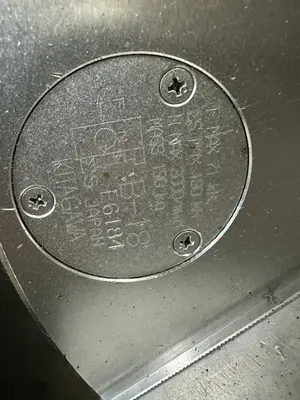

Kitagawa 18" 3-Jaw Hydraulic Chuck (Model B-18)

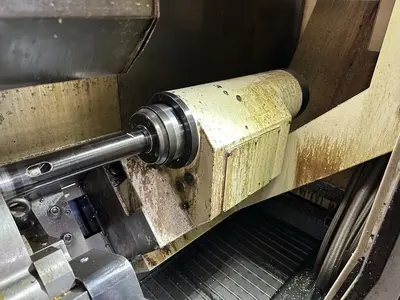

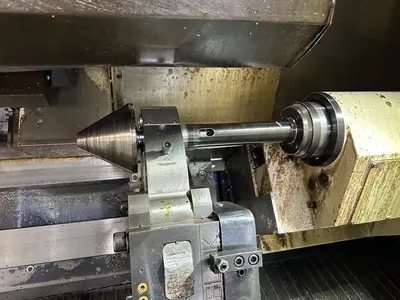

Tailstock

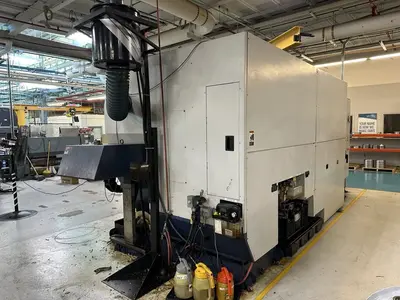

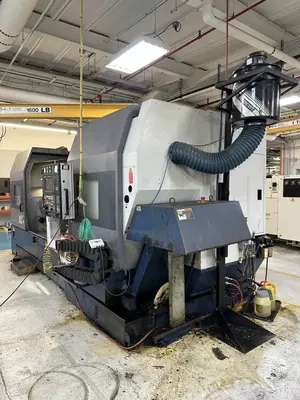

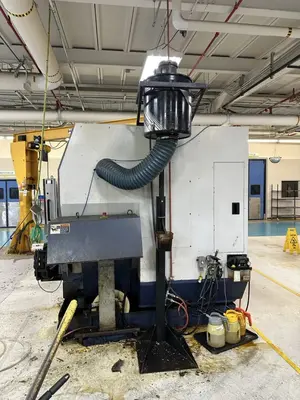

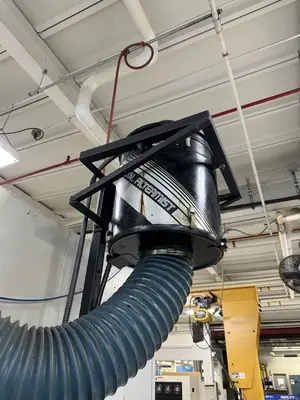

Royal Filtermist F1200 Mist Collector
This 1999 Mori Seiki SL-400 BMC/2000 CNC lathe has a 12-station live tooling turret, an SMW Autoblok hydraulic self-centering steady rest, and an 18" Kitagawa 3-jaw hydraulic chuck. It offers 36.8" of swing over the bed, a 33.9" max turning length, and 5.11" bar capacity, with a 40 HP spindle that runs up to 2,400 RPM.
The Mori Seiki SL-400 BMC/2000, also searched as SL400 BMC/2000, SL-400BMC, SL 400 BMC, SL-400, or DMG Mori SL-400, is a CNC turning center with live tooling and a C-axis (mill-turn).
This 1999 machine has 11.3" of X-axis travel and 36.0" of Z-axis travel, with rapid rates of 710 IPM on both axes, 40.0" between centers, and a 25.4" max turning diameter. It has an A2-11 spindle nose with a 5.2" bore, a 12-station turret with a 1-second index time, a tailstock with an MT-4 taper and 24.0" of body travel, and a Royal Filtermist F1200 mist collector. Approximate dimensions are 230" x 102" x 104", with an approximate weight of 25,000 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 36.81" |
| Machining Length | 33.9" |
| # Axis | 3 |
| Chuck Size | 18" |
| Bar Capacity | 5.11" |
| Power | 40 hp |
| Max RPM | 3,000 RPM |
| Turning Dia | 25.4" |
| Tailstock | 'Yes' |
| Live Tooling | 'Yes' |

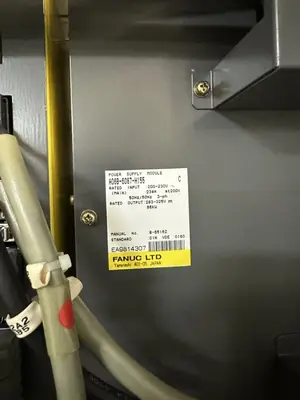

| Control | CNC (Fanuc) |
Distance Between Centers: 40.0"
X-Axis Travel: 11.3"
Z-Axis Travel: 36.0"
C-Axis: 0.01
Rapid Traverse X-Axis: 710 IPM
Rapid Traverse Z-Axis: 710 IPM
Spindle Nose: A2-11
Spindle Bore: 5.2"
Turret Capacity: 12 Live Stations
Turret Index Time: 1 Second
Tailstock Taper: MT-4
Tailstock Body Travel: 24.0"
Approximate Dimensions: 230" x 102" x 104"
Approximate Weight: 25,000 lbs
Live Tooling
SMW Autoblok SLU-5.0/Z Hydraulic Self-Centering Steady Rest
Kitagawa 18" 3-Jaw Hydraulic Chuck (Model B-18)
Tailstock
Royal Filtermist F1200 Mist Collector
