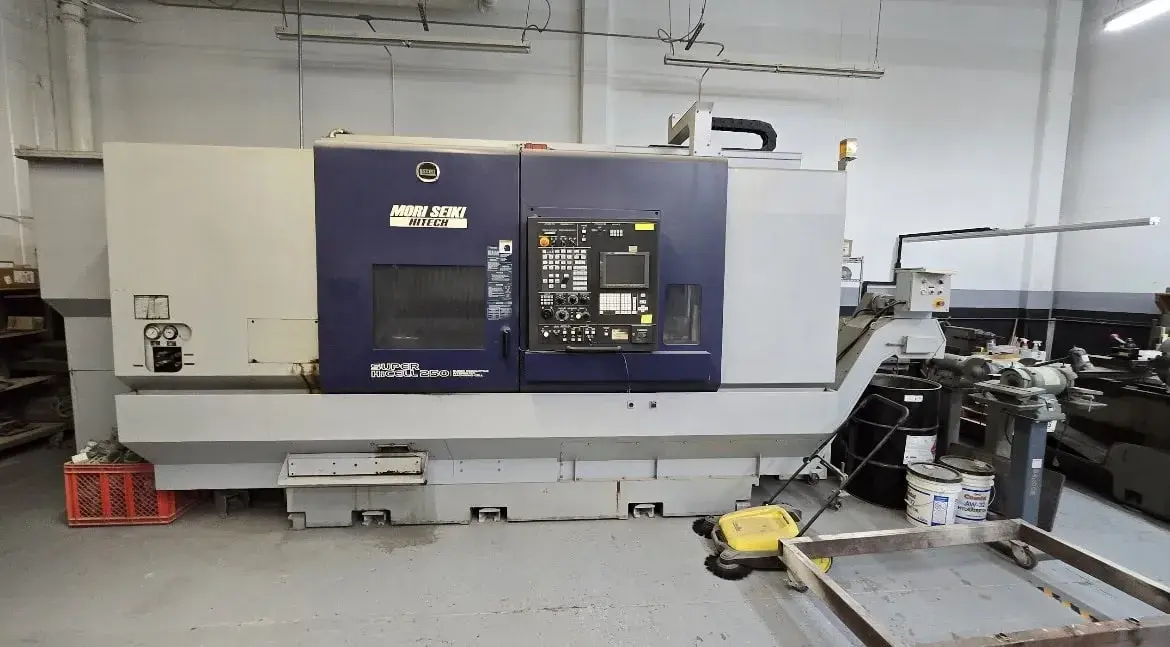

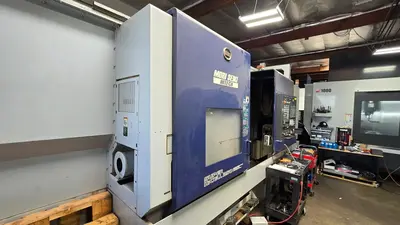

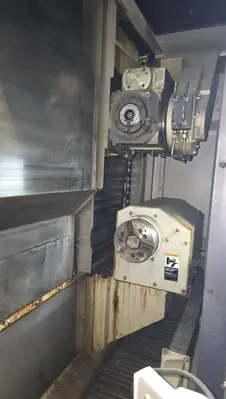

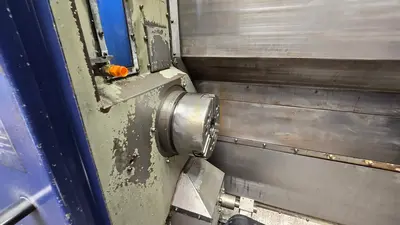

2003 Mori Seiki Super Hicell 250 5-Axis CNC Lathe
Have one to sell?
ConditionUsed
1 available

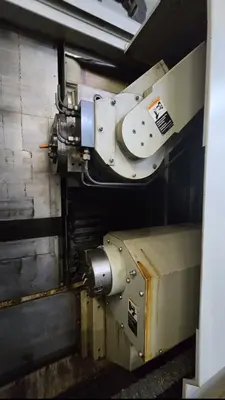

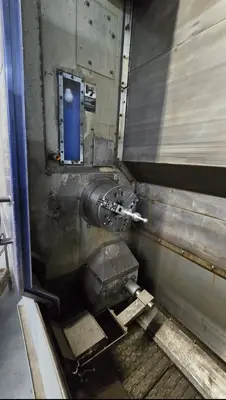

This 2003 Mori Seiki Super Hicell 250 multi-axis lathe has a B-axis, Y-axis live tooling, and a sub spindle, fed by a 60-tool magazine. The 25 HP main spindle runs up to 4,000 RPM with a 10" chuck and 2.56" bar capacity, over 28.3" of machining length and 19.68" of swing.
Max Turning Dia (Live Tools): 19.68"
Tool Magazine: 60 Tools
Spindle Bore: 3.1"
Spindle Nose: A2-8
Sub Spindle Chuck Size: 8"
Sub Spindle Bar Capacity: 1.65"
Sub Spindle Motor: 10 / 7.5 HP
X-Axis Travel: 23.6"
Y-Axis Travel: +/- 2.95"
Z-Axis Travel: 39.5"
Rapid Traverse Rates (X & Z / Y): 1,181 / 590 IPM
C-Axis Index (Main & Sub): 0.001 Degrees
B-Axis Index: 0.001 Degrees
Milling Speed: 80 - 8,000 RPM
Milling Motor: 10 / 7.5 HP
Live Tooling
Sub Spindle

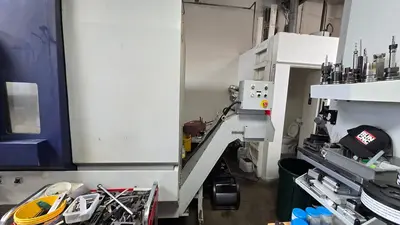

Chip Conveyor
This 2003 Mori Seiki Super Hicell 250 multi-axis lathe has a B-axis, Y-axis live tooling, and a sub spindle, fed by a 60-tool magazine. The 25 HP main spindle runs up to 4,000 RPM with a 10" chuck and 2.56" bar capacity, over 28.3" of machining length and 19.68" of swing.
The Mori Seiki Super Hicell 250, also searched as Hitech Super Hicell 250, Hitachi Seiki Super Hicell 250, Super HiCell 250, or HiCell 250, is a multi-tasking CNC turning center with a B-axis, Y-axis, and sub spindle (mill-turn).

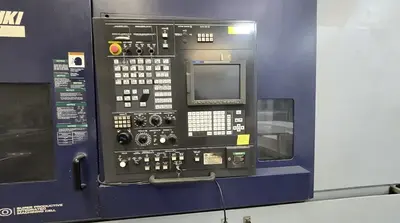

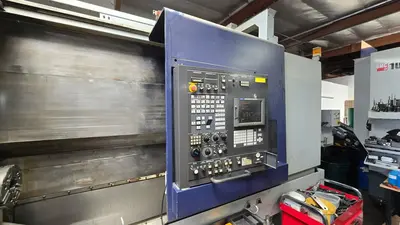

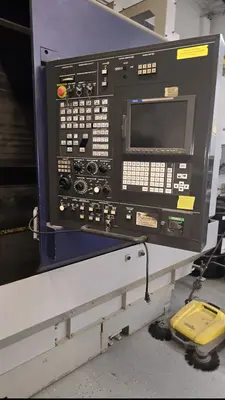

This machine has 23.6" of X-axis travel, +/- 2.95" of Y-axis travel, and 39.5" of Z-axis travel, with rapid rates of 1,181 IPM on X and Z and 590 IPM on Y. Its live tools run from 80 to 8,000 RPM with a 10 / 7.5 HP milling motor, and the sub spindle has an 8" chuck, 1.65" bar capacity, and a 10 / 7.5 HP motor. It runs a Seicos control and comes equipped with a chip conveyor, with a 3.1" spindle bore, A2-8 spindle nose, and up to 19.68" of turning diameter with live tools.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| # Axis | 5 |
| Swing | 19.68" |
| Machining Length | 28.3" |
| Chuck Size | 10" |
| Bar Capacity | 2.56" |
| Power | 25 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 14.56" |
| Tailstock | No |
| Control | CNC (Fanuc) |
Max Turning Dia (Live Tools): 19.68"
Tool Magazine: 60 Tools
Spindle Bore: 3.1"
Spindle Nose: A2-8
Sub Spindle Chuck Size: 8"
Sub Spindle Bar Capacity: 1.65"
Sub Spindle Motor: 10 / 7.5 HP
X-Axis Travel: 23.6"
Y-Axis Travel: +/- 2.95"
Z-Axis Travel: 39.5"
Rapid Traverse Rates (X & Z / Y): 1,181 / 590 IPM
C-Axis Index (Main & Sub): 0.001 Degrees
B-Axis Index: 0.001 Degrees
Milling Speed: 80 - 8,000 RPM
Milling Motor: 10 / 7.5 HP
Live Tooling
Sub Spindle
Chip Conveyor
