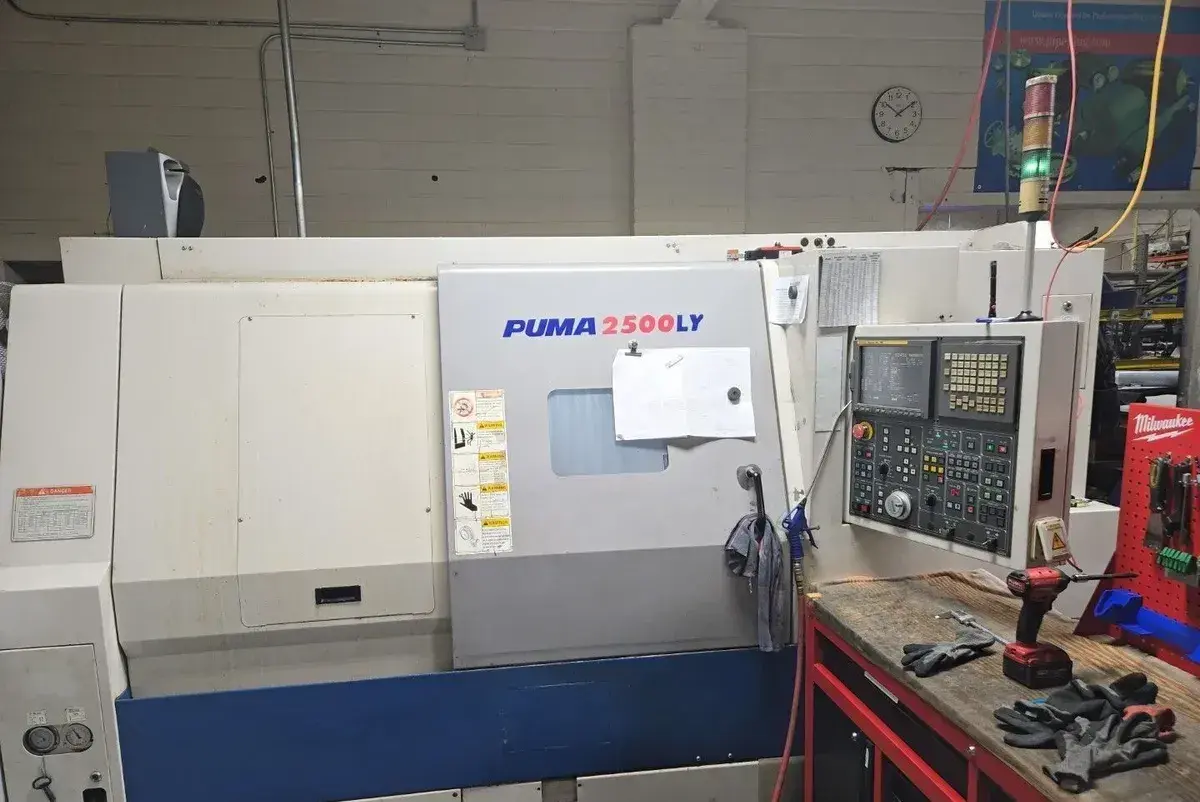

2006 Doosan Puma 2500LY CNC Lathe with Y-Axis Live Tooling
Have one to sell?
ConditionUsed
1 available
This 2006 Doosan Puma 2500LY CNC lathe has Y-axis live tooling, a programmable tailstock, and a 12-station turret with 5,000 RPM live tools. It runs a 10" hydraulic chuck at up to 3,500 RPM with 30 HP peak spindle power, 23.62" of swing, and 3" bar capacity.
Swing Over Saddle: 21.65"
X-Axis Travel: 9.84"
Y-Axis Travel: 3.94" (±1.97")
Z-Axis Travel: 32.67"
Continuous Spindle Power: 20 HP
Approximate Spindle Bore: 3.38"
Spindle Nose: A2-8

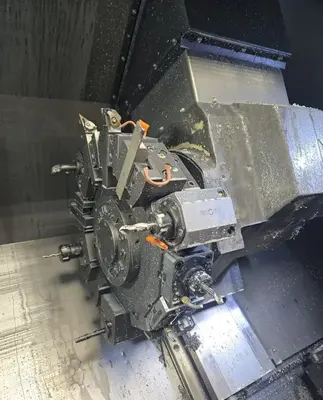

Turret: 12 Stations
Live Tool Speed: 5,000 RPM
C-Axis Indexing: 0.001°
Rapid Traverse (X/Z): 787 / 945 IPM
OD Tool Shank: 1"
Approximate Boring Bar Capacity: 1.57"
Approximate Weight: 11,685 lbs
Approximate Dimensions: 125" x 70" x 81"

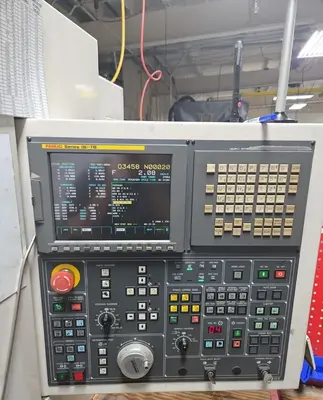

Fanuc 18i-TB Control

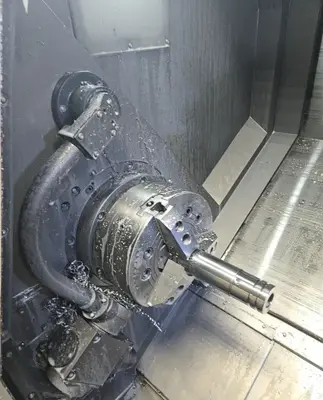

Hydraulic Chuck
Programmable Tailstock
Tool Presetter
Chip Conveyor
This 2006 Doosan Puma 2500LY CNC lathe has Y-axis live tooling, a programmable tailstock, and a 12-station turret with 5,000 RPM live tools. It runs a 10" hydraulic chuck at up to 3,500 RPM with 30 HP peak spindle power, 23.62" of swing, and 3" bar capacity.
The Doosan Puma 2500LY, also searched as Puma 2500 LY, Puma-2500LY, Puma 2500, or DN Solutions Puma 2500LY, is a CNC turning center with Y-axis live tooling (mill-turn).
This 2006 machine has 9.84" of X-axis travel, 3.94" of Y-axis travel, and 32.67" of Z-axis travel, with rapid rates of 787 IPM (X) and 945 IPM (Z). It has an A2-8 spindle nose with an approximate 3.38" spindle bore and comes equipped with a tool presetter, chip conveyor, and live tool holders, with approximate dimensions of 125" x 70" x 81" and an approximate weight of 11,685 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 23.62" |
| Machining Length | 32.6" |
| # Axis | 3 |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Power | 30 hp |
| Max RPM | 3,500 RPM |
| Turning Dia | 13" |
| Tailstock | Yes |
| Live Tooling | Yes |
| Sub Spindle | No |
| Control | CNC (Fanuc) |
Swing Over Saddle: 21.65"
X-Axis Travel: 9.84"
Y-Axis Travel: 3.94" (±1.97")
Z-Axis Travel: 32.67"
Continuous Spindle Power: 20 HP
Approximate Spindle Bore: 3.38"
Spindle Nose: A2-8
Turret: 12 Stations
Live Tool Speed: 5,000 RPM
C-Axis Indexing: 0.001°
Rapid Traverse (X/Z): 787 / 945 IPM
OD Tool Shank: 1"
Approximate Boring Bar Capacity: 1.57"
Approximate Weight: 11,685 lbs
Approximate Dimensions: 125" x 70" x 81"
Fanuc 18i-TB Control
Hydraulic Chuck
Programmable Tailstock
Tool Presetter
Chip Conveyor
