2022 Doosan DNM 750L/50 II Vertical Machining Center with 4th Axis
Have one to sell?
ConditionUsed
1 available

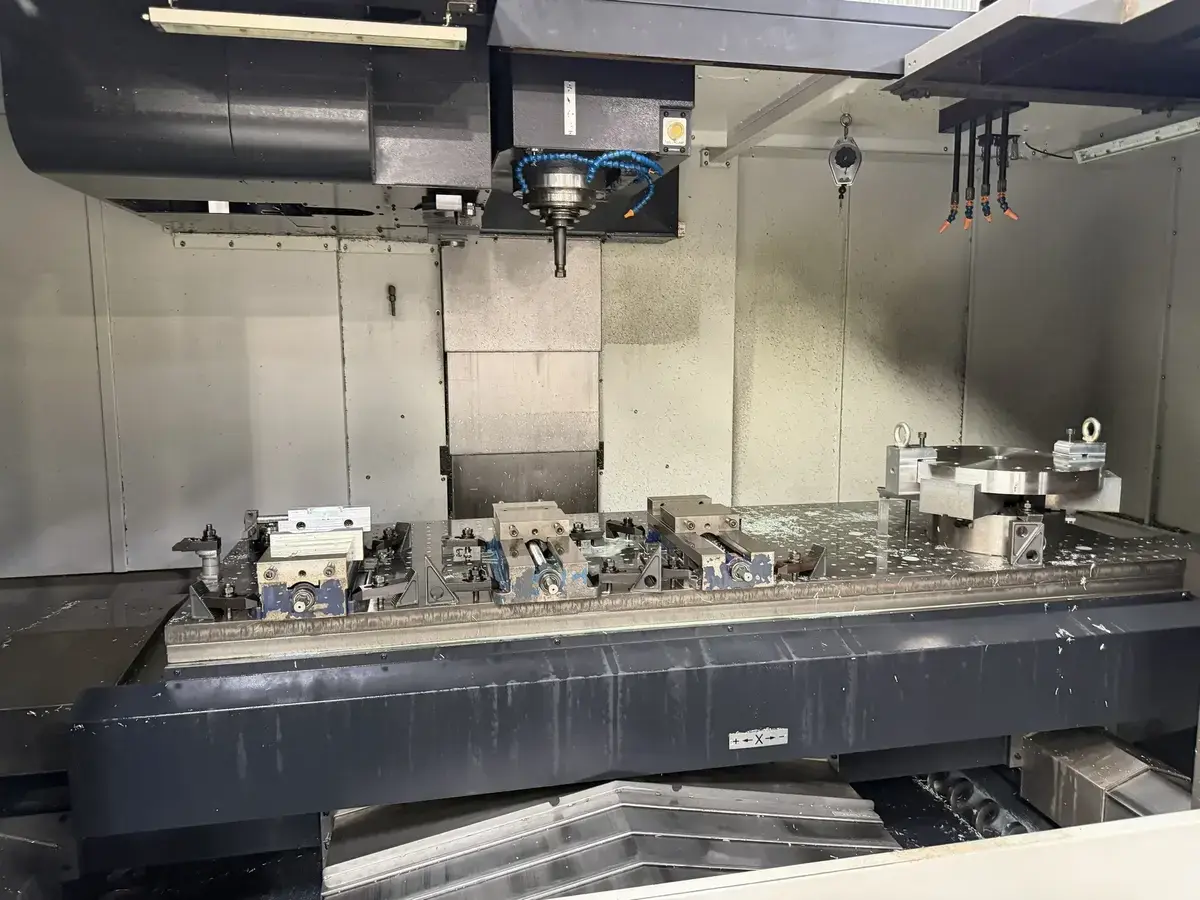

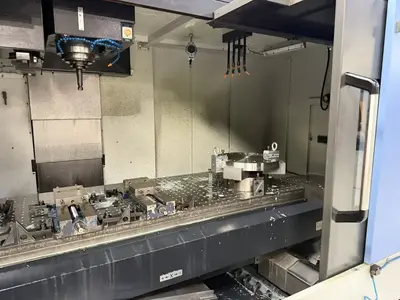

This 2022 Doosan DNM 750L/50 II vertical machining center comes with a 4th axis rotary table and probing, with 85" x 30" x 26" of X/Y/Z travel. It runs a CAT 50 spindle at 8,000 RPM with a 30-tool ATC, Fanuc i Series control, and chip conveyor.
Electrical: 220V, 3 Phase, 50/60 Hz, 39.5 kVA
Approximate Weight: 33,730.69 lbs

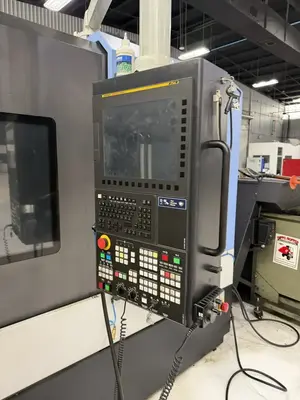

Fanuc i Series Control
4th Axis Rotary Table
Probing
Chip Conveyor
This 2022 Doosan DNM 750L/50 II vertical machining center comes with a 4th axis rotary table and probing, with 85" x 30" x 26" of X/Y/Z travel. It runs a CAT 50 spindle at 8,000 RPM with a 30-tool ATC, Fanuc i Series control, and chip conveyor.
The Doosan DNM 750L/50 II, also searched as DN Solutions DNM 750L/50 II, DNM-750L/50 II, DNM750L/50 II, DNM 750L II, or DNM 750, is a 50 taper CNC vertical machining center (VMC).
This 2022 machine runs on 220V, 3-phase power at 39.5 kVA, with an approximate weight of 33,730.69 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 85" |
| Y | 30" |
| Z | 26" |
| Power | 29.5 hp |
| RPM | 8,000 RPM |
| # ATC | 30 |
| Taper | CT-50 |
| Table-W | 29.92" |
| Table-L | 85.04" |
| # Axis | 4 |
| Control | CNC (Fanuc) |
Electrical: 220V, 3 Phase, 50/60 Hz, 39.5 kVA
Approximate Weight: 33,730.69 lbs
Fanuc i Series Control
4th Axis Rotary Table
Probing
Chip Conveyor
