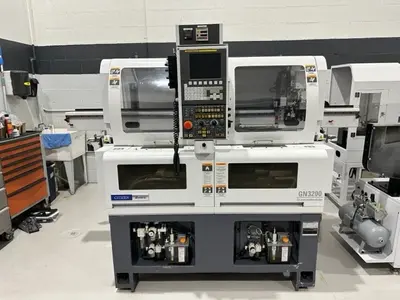

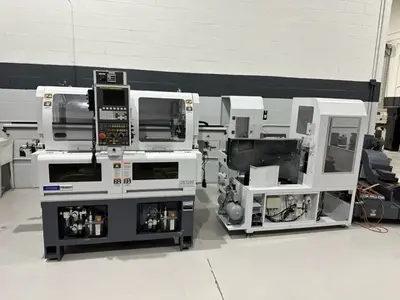

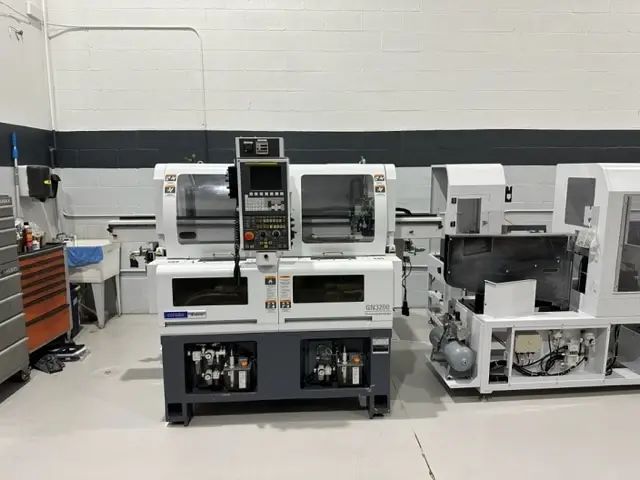

2020 Miyano GN3200W-2F3 CNC Lathe with Twin Gantry Loader
Have one to sell?
ConditionUsed
1 available
This 2020 Miyano GN3200W-2F3 twin spindle CNC lathe comes with a twin gantry loader, feed and stacking unit, and C-axis, running left and right spindles up to 8,000 RPM on a Fanuc 0i-TF control. Its two horizontal linear turrets each have 7.09" of X travel and 7.87" of Z travel, with a pneumatic 3" (4") power chuck and a 1.97" max machining length.
Power Chuck: Pneumatic 3" (4")
Diaphragm Chuck: Pneumatic 4"
Max Collet Chuck Diameter (Stationary with Pad): 1.38"
Max Collet Chuck Diameter (Pull Type with Pad): 1.57"
Spindle Motor, Left and Right Spindles (15 Min/Cont.): 2.95/2.01 HP
Spindle Speed Range, Left and Right Spindles: 80 to 8,000 RPM
Turrets: 2 Horizontal Linear Turrets
Square Turning Tool Shank Height: 0.39", 0.47", 0.63"
Drill Shank Diameter: 0.79"
X1 and X2 Axis Travel: 7.09"
Z1 and Z2 Axis Travel: 7.87"
Spindle Center Height: 34.45"
Approximate Height: 62.99"
Approximate Floor Space (W x L): 55.12" x 58.15"
Approximate Weight: 5,842.24 lbs

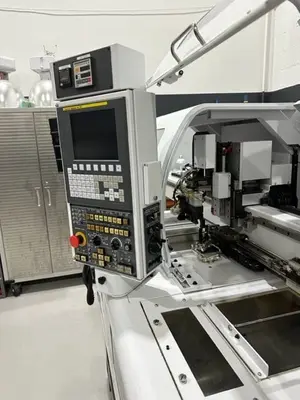

Fanuc 0i-TF Control

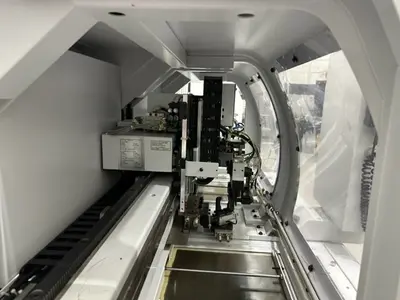

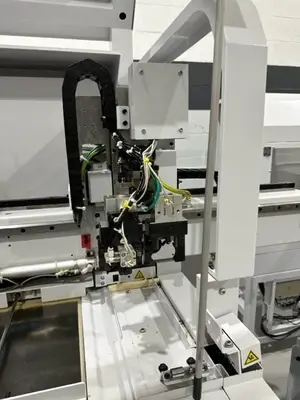

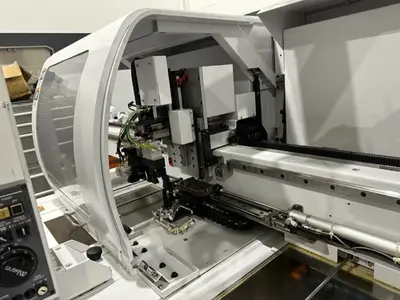

Twin Gantry Loader

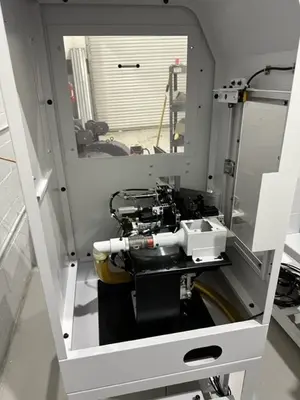

Feed and Stacking Unit
C-Axis
Mandrel Chucks
Tool Holders
Chip Conveyors
This 2020 Miyano GN3200W-2F3 twin spindle CNC lathe comes with a twin gantry loader, feed and stacking unit, and C-axis, running left and right spindles up to 8,000 RPM on a Fanuc 0i-TF control. Its two horizontal linear turrets each have 7.09" of X travel and 7.87" of Z travel, with a pneumatic 3" (4") power chuck and a 1.97" max machining length.
The Miyano GN3200W-2F3, also searched as Miyano GN3200W, GN-3200W, GN3200, or Citizen Miyano GN3200W, is a twin spindle CNC gang-type turning center with gantry automation.
This 2020 machine has a 4" pneumatic diaphragm chuck, collet chuck capacity up to 1.57" (pull type), a 0.79" drill shank diameter, and a 34.45" spindle center height. It comes equipped with mandrel chucks, tool holders, and chip conveyors, with approximate floor space of 55.12" x 58.15", an approximate height of 62.99", and an approximate weight of 5,842.24 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Machining Length | 1.97" |
| # Axis | 3 |
| Bar Capacity | 1.37" |
| Power | 3 hp |
| Max RPM | 8,000 RPM |
| Turning Dia | 1.96" |
| Live Tooling | 'Yes' |
| Control | CNC (Fanuc) |
Power Chuck: Pneumatic 3" (4")
Diaphragm Chuck: Pneumatic 4"
Max Collet Chuck Diameter (Stationary with Pad): 1.38"
Max Collet Chuck Diameter (Pull Type with Pad): 1.57"
Spindle Motor, Left and Right Spindles (15 Min/Cont.): 2.95/2.01 HP
Spindle Speed Range, Left and Right Spindles: 80 to 8,000 RPM
Turrets: 2 Horizontal Linear Turrets
Square Turning Tool Shank Height: 0.39", 0.47", 0.63"
Drill Shank Diameter: 0.79"
X1 and X2 Axis Travel: 7.09"
Z1 and Z2 Axis Travel: 7.87"
Spindle Center Height: 34.45"
Approximate Height: 62.99"
Approximate Floor Space (W x L): 55.12" x 58.15"
Approximate Weight: 5,842.24 lbs
Fanuc 0i-TF Control
Twin Gantry Loader
Feed and Stacking Unit
C-Axis
Mandrel Chucks
Tool Holders
Chip Conveyors
