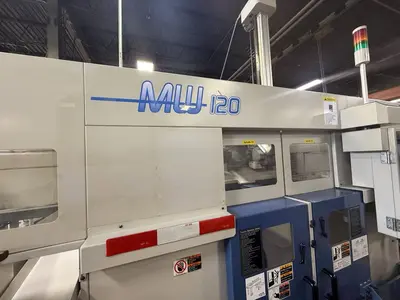

2018 Muratec MW120G Twin Spindle CNC Lathe with Gantry Loader
Have one to sell?
ConditionUsed
1 available

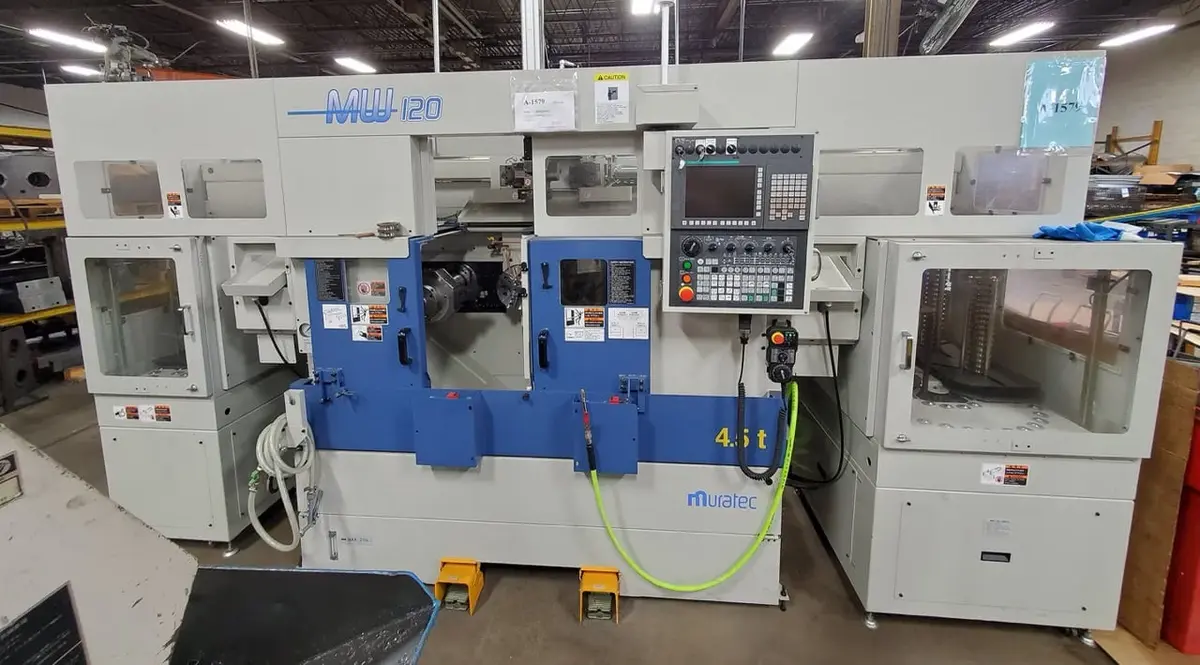

This 2018 Muratec MW120G twin spindle CNC lathe comes with an overhead gantry loader and a 14-pallet stocker feeder table, running 15 HP spindle drive motors up to 4,500 RPM on a Fanuc 31iTB control. It offers 11.61" of swing, a 9.440" max turning diameter, and 13.39" between spindles, with an 8-station turret.
Distance Between Spindles: 13.39"
Nominal Turning Diameter: 4.72"
Nominal Turning Length: 3.150"
Turret Stations: 8
X-Axis Travel: 5.12"
Z-Axis Travel: 5.71"
Rapid Traverse (X and Z): 945 IPM
Spindle Nose: A2-5
Spindle Bore: 1.850"
Tool Shank Size: 0.75" Square, 1.570" Round
Approximate Weight with Loader: 11,800 lbs
Approximate Floor Space: 139.37" x 136.22"

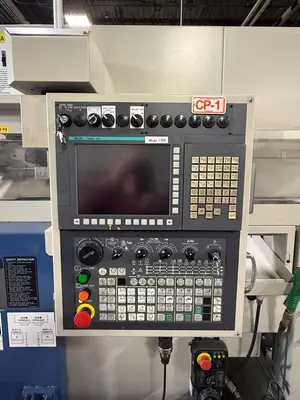

Fanuc 31iTB Control
Overhead Gantry Loader

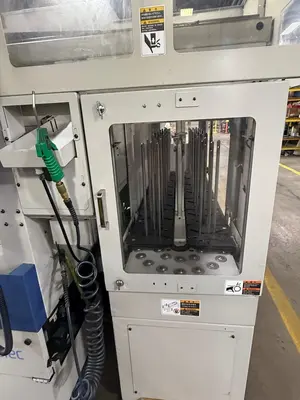

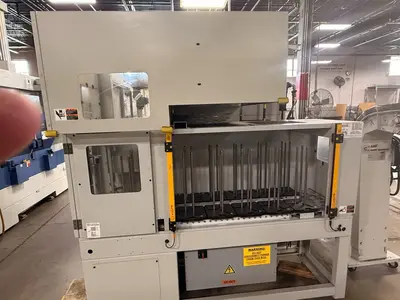

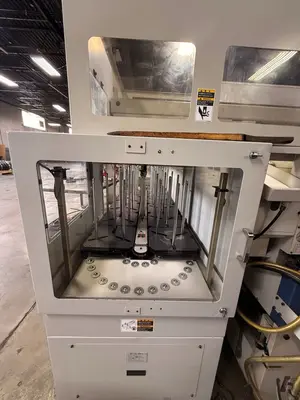

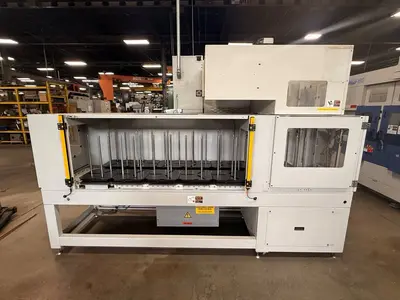

14-Pallet Stocker Feeder Table
LNS Chip Conveyor
Remote MPG
This 2018 Muratec MW120G twin spindle CNC lathe comes with an overhead gantry loader and a 14-pallet stocker feeder table, running 15 HP spindle drive motors up to 4,500 RPM on a Fanuc 31iTB control. It offers 11.61" of swing, a 9.440" max turning diameter, and 13.39" between spindles, with an 8-station turret.
The Muratec MW120G, also searched as Muratec MW-120G, MW120, MW-120, or Murata MW120G, is a twin spindle CNC turning center with gantry automation.
This 2018 machine has 5.12" of X-axis travel and 5.71" of Z-axis travel with rapids of 945 IPM, an A2-5 spindle nose with a 1.850" bore, and a remote MPG and LNS chip conveyor. It has an approximate floor space of 139.37" x 136.22" and an approximate weight of 11,800 lbs with the loader.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 12" |
| Machining Length | 3.94" |
| # Axis | 2 |
| Chuck Size | 6.4961" |
| Bar Capacity | 2.28" |
| Power | 15 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 9.44" |
| Control | CNC (Fanuc) |
Distance Between Spindles: 13.39"
Nominal Turning Diameter: 4.72"
Nominal Turning Length: 3.150"
Turret Stations: 8
X-Axis Travel: 5.12"
Z-Axis Travel: 5.71"
Rapid Traverse (X and Z): 945 IPM
Spindle Nose: A2-5
Spindle Bore: 1.850"
Tool Shank Size: 0.75" Square, 1.570" Round
Approximate Weight with Loader: 11,800 lbs
Approximate Floor Space: 139.37" x 136.22"
Fanuc 31iTB Control
Overhead Gantry Loader
14-Pallet Stocker Feeder Table
LNS Chip Conveyor
Remote MPG
