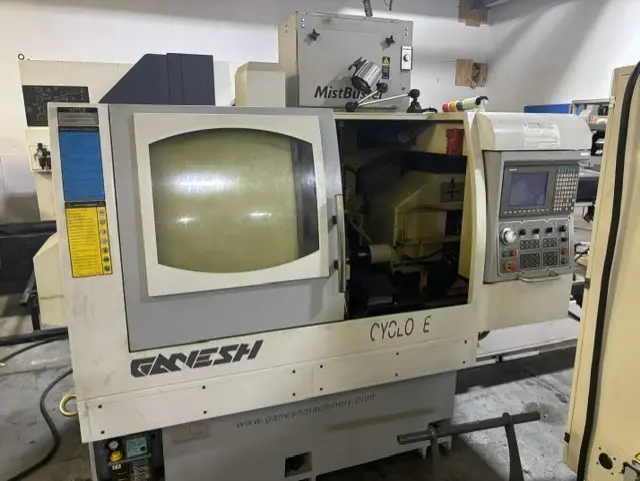

2008 Ganesh Cyclone 32CS CNC Swiss Lathe with Sub Spindle
Have one to sell?
ConditionUsed
1 available
This 2008 Ganesh Cyclone 32CS 7-axis CNC Swiss lathe has a sub spindle, Y-axis, and C-axis on both spindles, with 11 live tools and an Edge Tech Patriot 338 magazine bar feeder. It takes 1.25" round bar, with a 10 HP main spindle and a 5 HP sub spindle each reaching 6,000 RPM, and runs Chip Blaster D16 high pressure coolant.
Bar Capacity (Round): 1.25"
Spindle Bore: 1.456"

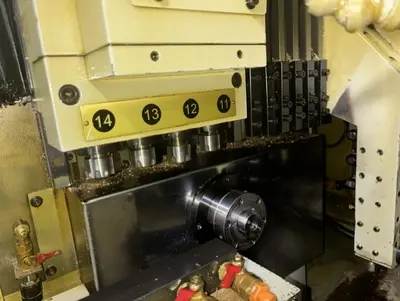

Total Tools: 27 (18 Main and 7 Sub Spindle)
Live Tools: 11 (4 Radial, 3 Axial, 4 Sub Spindle)
Main Spindle OD Turning Tools: 6
Main Spindle ID Turning Tools: 5
Main Spindle X-Axis Travel: 7.28
Main Spindle Y-Axis Travel: 19.29"
Main Spindle Z-Axis Travel: 6.5"
Sub Spindle X-Axis Travel: 11.53"
Sub Spindle Z-Axis Travel: 11.61"
Sub Spindle Max RPM: 6,000
Sub Spindle Power: 5 HP
C-Axis (Main and Sub Spindle): 360,000 Positions
Approximate Dimensions (W x D): 101" x 68"
Approximate Weight: 8,000 lbs

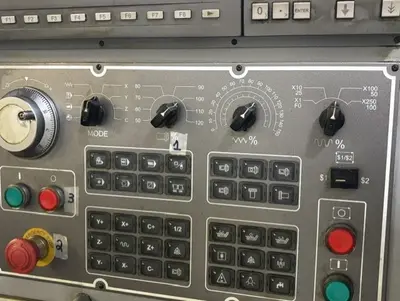

Ganesh CNC Control

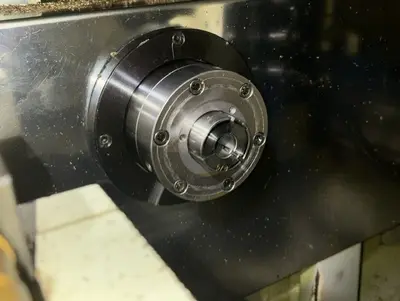

Sub Spindle
Y-Axis

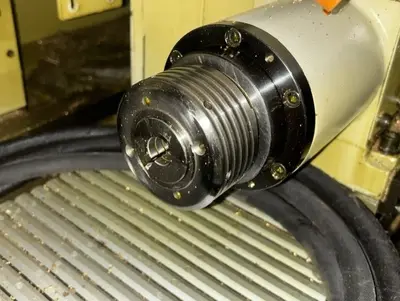

Live Tooling

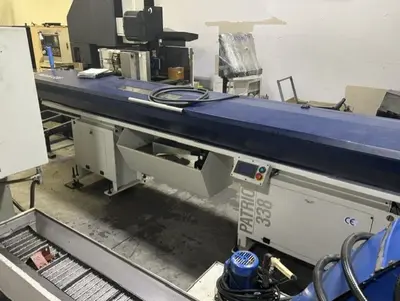

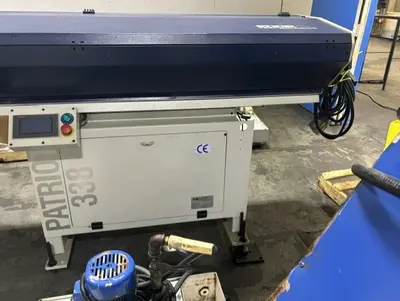

Edge Tech Patriot 338 Magazine Bar Feeder
Chip Blaster D16 High Pressure Coolant
Parts Catcher
Parts Conveyor
Mist Buster
Chip Conveyor

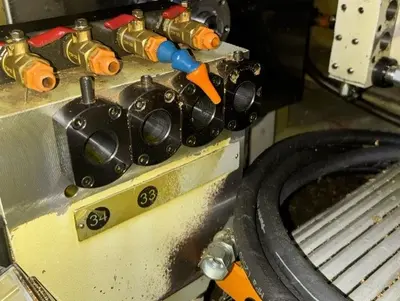

Coolant System
This 2008 Ganesh Cyclone 32CS 7-axis CNC Swiss lathe has a sub spindle, Y-axis, and C-axis on both spindles, with 11 live tools and an Edge Tech Patriot 338 magazine bar feeder. It takes 1.25" round bar, with a 10 HP main spindle and a 5 HP sub spindle each reaching 6,000 RPM, and runs Chip Blaster D16 high pressure coolant.
The Ganesh Cyclone 32CS, also searched as Ganesh Cyclone-32CS, Cyclone 32 CS, or Cyclone 32, is a CNC Swiss-type turning center (Swiss screw machine, mill-turn).
It carries 27 total tools, including 6 OD and 5 ID turning tools on the main spindle, with main spindle travels of 7.28 in X, 19.29" in Y, and 6.5" in Z, and sub spindle travels of 11.53" in X and 11.61" in Z. It comes equipped with a parts catcher, parts conveyor, Mist Buster, chip conveyor, and coolant system, with approximate dimensions of 101" x 68" and an approximate weight of 8,000 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Power | 10 hp |
| RPM | 6,000 RPM |
| # Axis | 7 |
Bar Capacity (Round): 1.25"
Spindle Bore: 1.456"
Total Tools: 27 (18 Main and 7 Sub Spindle)
Live Tools: 11 (4 Radial, 3 Axial, 4 Sub Spindle)
Main Spindle OD Turning Tools: 6
Main Spindle ID Turning Tools: 5
Main Spindle X-Axis Travel: 7.28
Main Spindle Y-Axis Travel: 19.29"
Main Spindle Z-Axis Travel: 6.5"
Sub Spindle X-Axis Travel: 11.53"
Sub Spindle Z-Axis Travel: 11.61"
Sub Spindle Max RPM: 6,000
Sub Spindle Power: 5 HP
C-Axis (Main and Sub Spindle): 360,000 Positions
Approximate Dimensions (W x D): 101" x 68"
Approximate Weight: 8,000 lbs
Ganesh CNC Control
Sub Spindle
Y-Axis
Live Tooling
Edge Tech Patriot 338 Magazine Bar Feeder
Chip Blaster D16 High Pressure Coolant
Parts Catcher
Parts Conveyor
Mist Buster
Chip Conveyor
Coolant System
