2020 Yasda PX30i 5-Axis Vertical Machining Center with 32 Pallets
Have one to sell?
ConditionUsed
1 available
This 2020 Yasda PX30i 5-axis vertical machining center runs a 32-pallet shelf system and a 20,000 RPM, 24.8 HP spindle on a Fanuc 31i-A5 control. Travels measure 26.8" in X, 15.8" in Y, and 19.7" in Z, with B-axis tilt from -125° to +65° and continuous 360° C-axis rotation.
B-Axis Travel: -125° to +65°
C-Axis Travel: 360° Continuous
Pallet Working Size: 7.28" Diameter
Max Workpiece: 15.75" Diameter x 12.40"
Max Loading Capacity: 176.37 lbs
Rapid Traverse (X, Y, Z): 2,362.20 IPM
Table Tilting Speed (B): 75 RPM
Table Rotation Speed (C): 125 RPM
Approximate Dimensions: 262.99" x 162.99" x 133.27"
Approximate Weight: 41,887.83 lbs

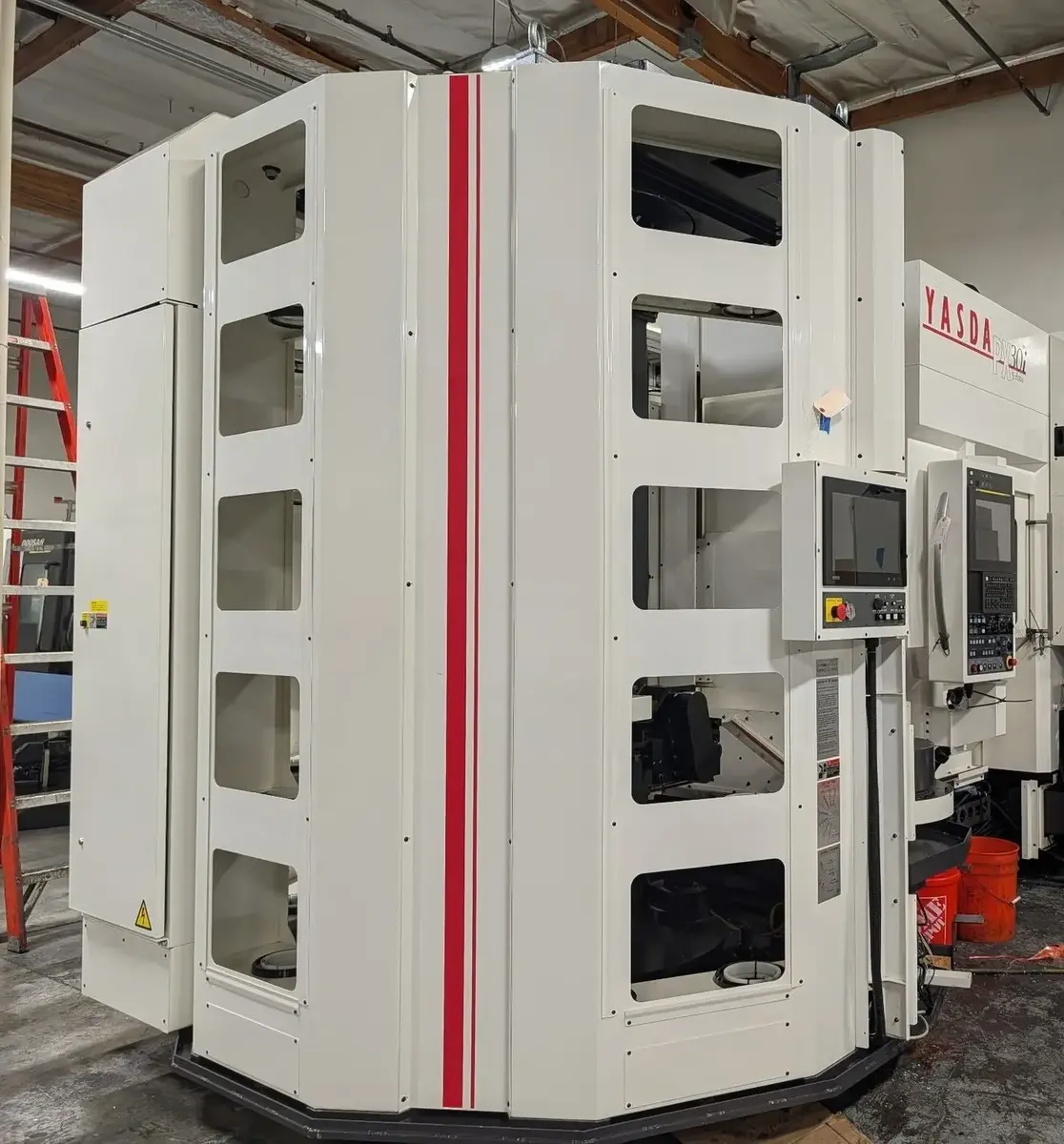

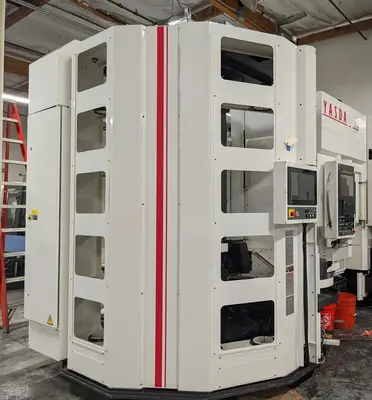

32 Pallet Shelf System
Fanuc 31i-A5 Control
High Pressure Coolant
Spindle Chiller
Chip Conveyor
Hardened and Ground Ways
This 2020 Yasda PX30i 5-axis vertical machining center runs a 32-pallet shelf system and a 20,000 RPM, 24.8 HP spindle on a Fanuc 31i-A5 control. Travels measure 26.8" in X, 15.8" in Y, and 19.7" in Z, with B-axis tilt from -125° to +65° and continuous 360° C-axis rotation.
The Yasda PX30i, also searched as Yasda PX-30i, PX 30i, or PX30, is a 5-axis vertical machining center (5-axis VMC) with pallet automation.
It has a 7.28" diameter pallet working size, a max workpiece of 15.75" diameter x 12.40", a 176.37 lb loading capacity, and rapid traverse up to 2,362.20 IPM on X, Y, and Z. It comes equipped with high pressure coolant, a spindle chiller, a chip conveyor, and hardened and ground ways, with approximate dimensions of 262.99" x 162.99" x 133.27" and an approximate weight of 41,887.83 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 26.8" |
| Y | 15.8" |
| Z | 19.7" |
| # Axis | 5 |
| Power | 24.8 hp |
| RPM | 20,000 RPM |
| # ATC | 314 |
| Control | CNC (Fanuc) |
B-Axis Travel: -125° to +65°
C-Axis Travel: 360° Continuous
Pallet Working Size: 7.28" Diameter
Max Workpiece: 15.75" Diameter x 12.40"
Max Loading Capacity: 176.37 lbs
Rapid Traverse (X, Y, Z): 2,362.20 IPM
Table Tilting Speed (B): 75 RPM
Table Rotation Speed (C): 125 RPM
Approximate Dimensions: 262.99" x 162.99" x 133.27"
Approximate Weight: 41,887.83 lbs
32 Pallet Shelf System
Fanuc 31i-A5 Control
High Pressure Coolant
Spindle Chiller
Chip Conveyor
Hardened and Ground Ways
