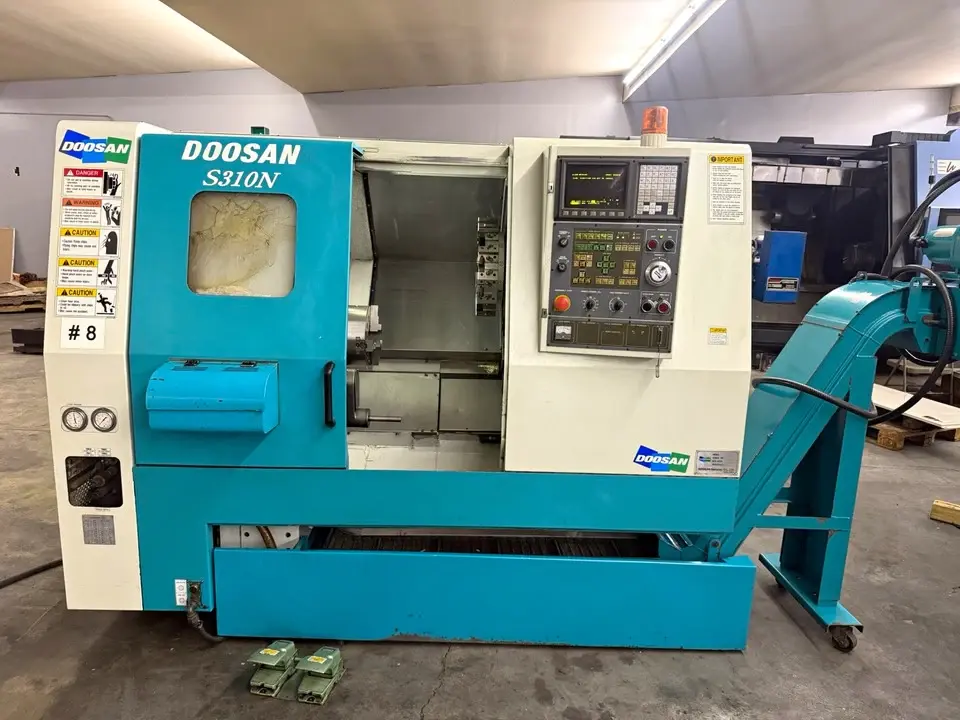

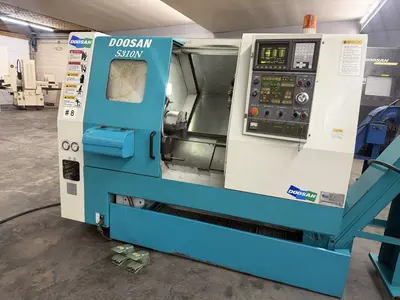

2004 Doosan S310N CNC Lathe with Tool Presetter
Have one to sell?
ConditionUsed
1 available
This 2004 Doosan S310N CNC lathe comes with a tool presetter, parts catcher, and tailstock, running a 10" 3-jaw chuck on a 20 HP spindle up to 4,500 RPM. It offers 20.4" of swing, 24.21" between centers, a 12.2" max turning diameter, and a 2.6" bar capacity.
Distance Between Centers: 24.21"
Approximate Shipping Weight: 9,500 lbs

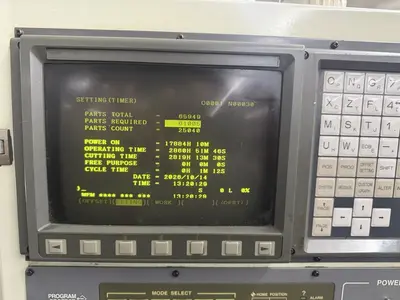

Fanuc 0i-T Control

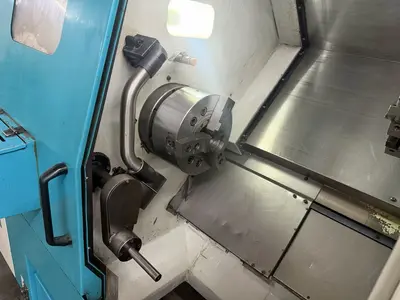

3-Jaw Chuck

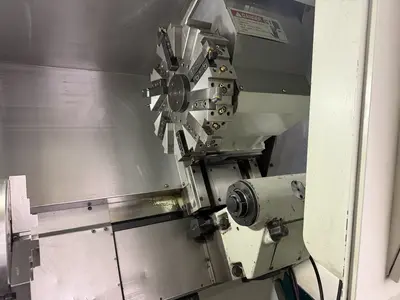

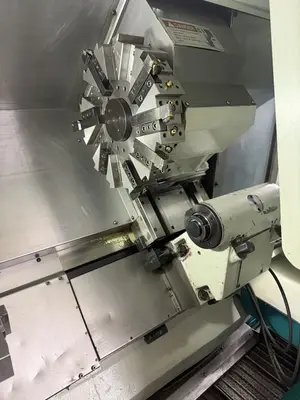

12-Station Turret
Tool Presetter
Parts Catcher
Chip Conveyor
This 2004 Doosan S310N CNC lathe comes with a tool presetter, parts catcher, and tailstock, running a 10" 3-jaw chuck on a 20 HP spindle up to 4,500 RPM. It offers 20.4" of swing, 24.21" between centers, a 12.2" max turning diameter, and a 2.6" bar capacity.
The Doosan S310N, also searched as DN Solutions S310N, Doosan S-310N, or S310, is a 2-axis CNC turning center.
It comes equipped with a Fanuc 0i-T control, a 12-station turret, and a chip conveyor, with an approximate shipping weight of 9,500 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 20.4" |
| Machining Length | 24.21" |
| # Axis | 2 |
| Chuck Size | 10" |
| Bar Capacity | 2.6" |
| Power | 20 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 12.2" |
| Tailstock | Yes |
| Control | CNC (Fanuc) |
Distance Between Centers: 24.21"
Approximate Shipping Weight: 9,500 lbs
Fanuc 0i-T Control
3-Jaw Chuck
12-Station Turret
Tool Presetter
Parts Catcher
Chip Conveyor
