2007 Doosan Puma MX 3000S 5-Axis CNC Lathe with Sub Spindle
Have one to sell?
ConditionUsed
1 available
This 2007 Doosan Puma MX3000S 5-axis CNC lathe pairs a full B-axis milling spindle and ATC with a sub spindle, running a 15" main chuck and a 12" sub-spindle chuck. It has 29.5" of swing, a 21.25" max turning diameter, and 59.8" of machining length, with a 40 HP main spindle reaching 3,000 RPM and a 3.03" bar capacity
Sub Spindle Chuck Size: 12"
Guideways: Box
Approximate Weight: 33,609 lbs
Fanuc 18iTB Control
Full B-Axis Milling Spindle
ATC
Sub Spindle
New Main Spindle Chuck

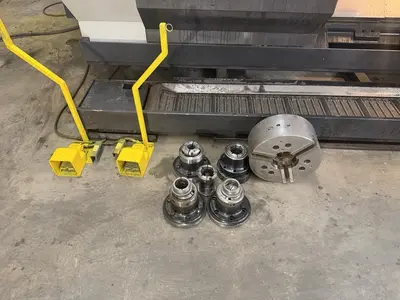

4 Collet Chucks with Adapters
Tool Presetter
Parts Catcher
Parts Conveyor
Chip Conveyor
This 2007 Doosan Puma MX3000S 5-axis CNC lathe pairs a full B-axis milling spindle and ATC with a sub spindle, running a 15" main chuck and a 12" sub-spindle chuck. It has 29.5" of swing, a 21.25" max turning diameter, and 59.8" of machining length, with a 40 HP main spindle reaching 3,000 RPM and a 3.03" bar capacity
The Doosan Puma MX3000S, also searched as DN Solutions Puma MX3000S, Puma MX 3000S, or MX3000S, is a 5-axis multi-tasking turning center with B-axis milling (mill-turn).
It comes equipped with a Fanuc 18iTB control, box guideways, a tool presetter, parts catcher, parts conveyor, chip conveyor, and 4 collet chucks with adapters, with an approximate weight of 33,609 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| # Axis | 5 |
| Swing | 29.5" |
| Machining Length | 59.8" |
| Chuck Size | 15" |
| Bar Capacity | 3.03" |
| Power | 40 hp |
| Max RPM | 3,000 RPM |
| Turning Dia | 21.25" |
| Control | CNC (Fanuc) |
Sub Spindle Chuck Size: 12"
Guideways: Box
Approximate Weight: 33,609 lbs
Fanuc 18iTB Control
Full B-Axis Milling Spindle
ATC
Sub Spindle
New Main Spindle Chuck
4 Collet Chucks with Adapters
Tool Presetter
Parts Catcher
Parts Conveyor
Chip Conveyor
