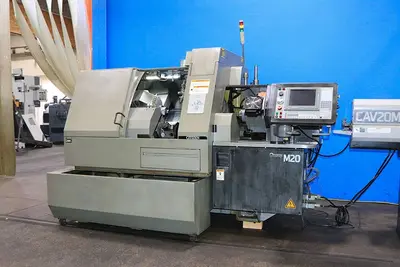

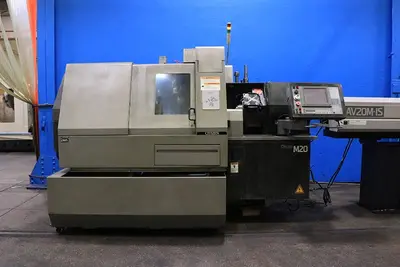

2005 Citizen M-20V 10-Axis CNC Swiss Lathe with Bar Loader
Have one to sell?
ConditionUsed
1 available

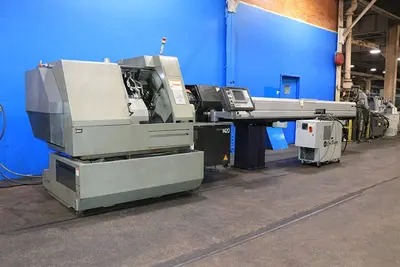

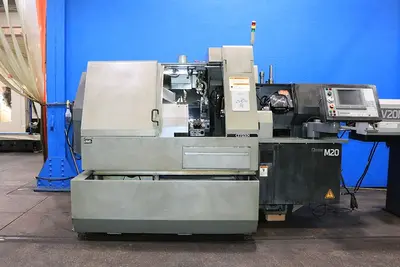

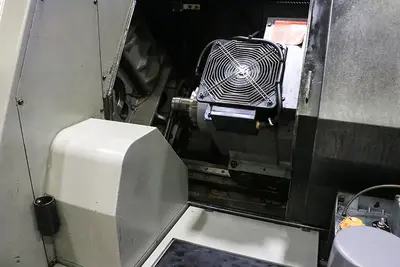

This used 2005 Citizen M-20V is a 10-axis CNC Swiss lathe with a Y-axis turret, a sub spindle with full C-axis indexing, and live back working tools, paired with a CAV 20M-IS bar loader and high pressure coolant. It takes 0.75" bar with 12.59" of machining length per chucking. The 7.5 HP main spindle runs to 10,000 RPM, and the rotary tools reach 5,000 RPM.
Axes: X1, Y1, Y2, Z1, C1, X2, Z2, C2, X3, Z3 (Misc Axes: TI, A1, A2, A3)
Configuration: Swiss
Machining Length per Chucking: 12.59"
Main Spindle Indexing: Full C
Sub Spindle Indexing: Full C
Rotary Tool Speed (Turret and Gang Plate): 200 to 5,000 RPM
Back Working Chucking Diameter: 0.75"
Back Working Length: 5.7"
Back Working Drilling/Tapping: M8
Back Spindle Speed: 200 to 8,000 RPM
Turret Tooling: 12 (24 in Half Index Mode)
Gang Tooling: 5 Turning + 4 Rotary
Back Working Tool Post: 3 (+ Rear Facing Tools on Turret)
Gang Tool Size: 0.63" x 0.63" x 5.12"
Turret Tool Size: 0.63" x 0.63" x 3.54"
Rotary Tool / Back Spindle Motors: 2 HP / 3 HP

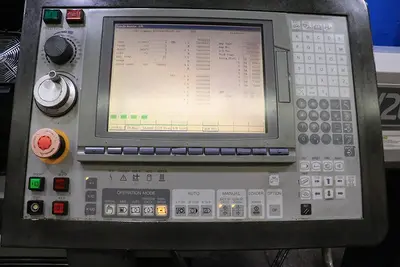

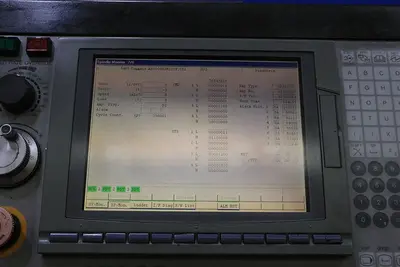

Mitsubishi Meldas CNC Control

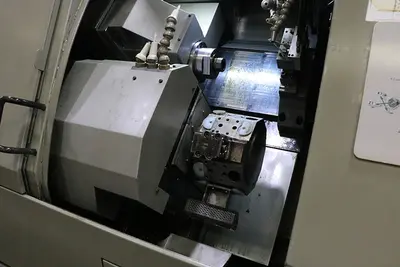

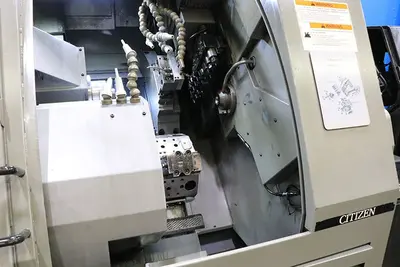

Turret with Y-Axis
Sub Spindle
Live Back Working Tools

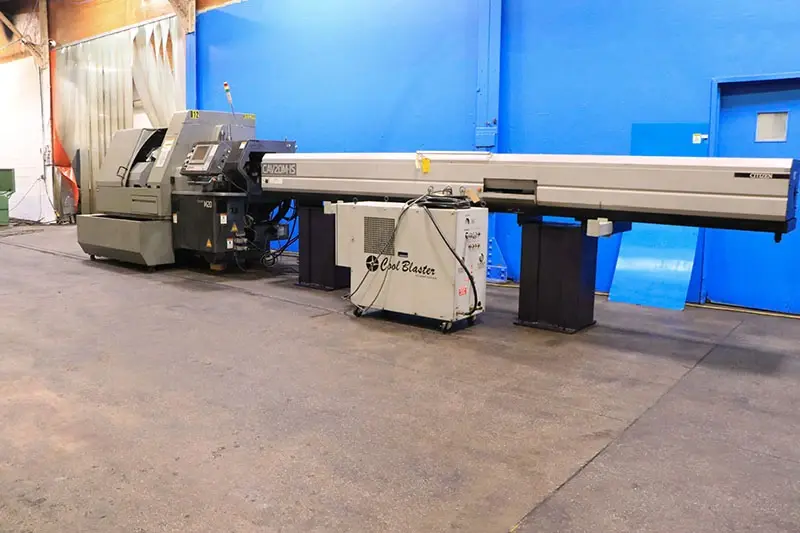

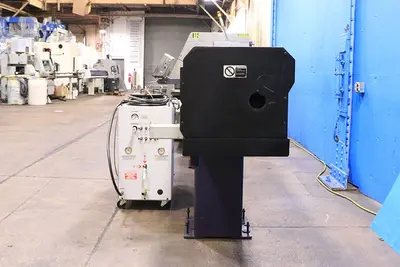

Citizen CAV 20M-IS Bar Loader

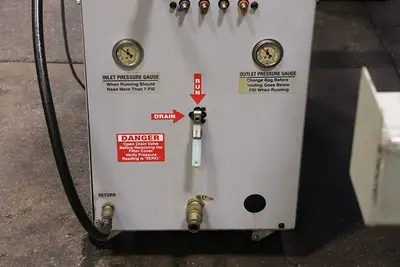

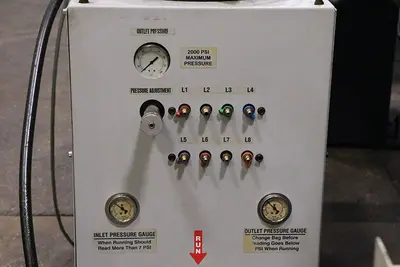

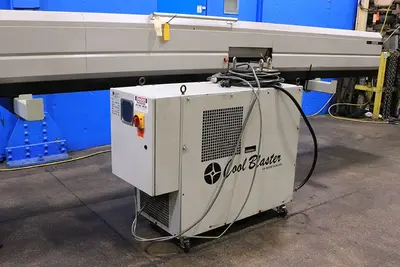

Cool Blaster High Pressure Coolant System
This used 2005 Citizen M-20V is a 10-axis CNC Swiss lathe with a Y-axis turret, a sub spindle with full C-axis indexing, and live back working tools, paired with a CAV 20M-IS bar loader and high pressure coolant. It takes 0.75" bar with 12.59" of machining length per chucking. The 7.5 HP main spindle runs to 10,000 RPM, and the rotary tools reach 5,000 RPM.
The Citizen M-20V, also searched as Citizen M20V, Citizen M 20V, or Citizen M20, is a CNC Swiss-type lathe (sliding headstock automatic) with live tooling and a sub spindle.
This 2005 machine runs on a Mitsubishi Meldas control with X1, Y1, Y2, Z1, C1, X2, Z2, C2, X3, and Z3 axes. Its back working side handles 0.75" diameter and 5.7" length with M8 drilling and tapping, and the back spindle runs from 200 to 8,000 RPM. Tooling includes a 12-station turret (24 in half index mode), a gang plate with 5 turning and 4 rotary tools, and a 3-position back working tool post. Rotary tool and back spindle motors are 2 HP and 3 HP. It also comes with a Cool Blaster high pressure coolant system, with approximate dimensions of 110" x 50" x 72" and an approximate weight of 6,100 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Spindle Hole Dia | 0.75" |
| Power | 7.5 hp |
| RPM | 10,000 RPM |
| # Axis | 10 |
| Control | CNC (Mitsubishi) |
| Dimensions | 110" x 50" x 72" |
| Weight | 6,100 lbs |
Axes: X1, Y1, Y2, Z1, C1, X2, Z2, C2, X3, Z3 (Misc Axes: TI, A1, A2, A3)
Configuration: Swiss
Machining Length per Chucking: 12.59"
Main Spindle Indexing: Full C
Sub Spindle Indexing: Full C
Rotary Tool Speed (Turret and Gang Plate): 200 to 5,000 RPM
Back Working Chucking Diameter: 0.75"
Back Working Length: 5.7"
Back Working Drilling/Tapping: M8
Back Spindle Speed: 200 to 8,000 RPM
Turret Tooling: 12 (24 in Half Index Mode)
Gang Tooling: 5 Turning + 4 Rotary
Back Working Tool Post: 3 (+ Rear Facing Tools on Turret)
Gang Tool Size: 0.63" x 0.63" x 5.12"
Turret Tool Size: 0.63" x 0.63" x 3.54"
Rotary Tool / Back Spindle Motors: 2 HP / 3 HP
Mitsubishi Meldas CNC Control
Turret with Y-Axis
Sub Spindle
Live Back Working Tools
Citizen CAV 20M-IS Bar Loader
Cool Blaster High Pressure Coolant System
