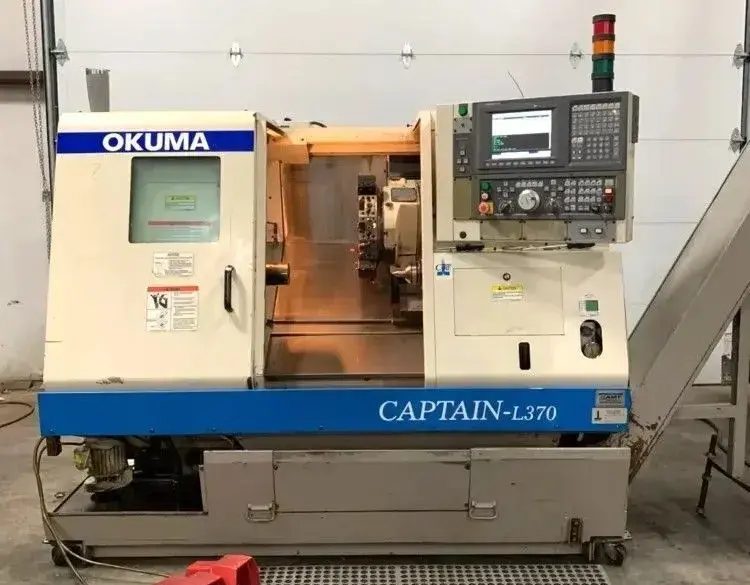

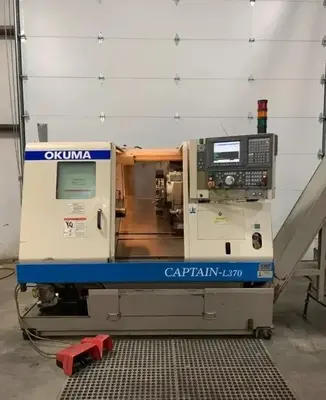

2001 Okuma Captain L370 CNC Lathe
Have one to sell?
ConditionUsed
1 available
This used 2001 Okuma Captain L370 CNC lathe has a hydraulic tailstock with power quill, a 12-station turret, and a touch setter, all run from an Okuma OSP-E100L control. It offers 20.8" of swing, a 20.47" machining length, and a 14.5" turning diameter, with an 8" chuck, 1.97" bar capacity, and a 20 HP spindle reaching 4,500 RPM.
Swing Over Slide: 15.78"
Distance Between Centers: 22.29"
X-Axis Travel: 10.23"
Z-Axis Travel: 20.47"
Rapid Traverse X: 787 IPM
Rapid Traverse Z: 984 IPM
Spindle Nose: A2-6
Spindle Bore: 2.44"
Approximate Dimensions: 110" x 68" x 80"
Approximate Dimensions with Chip Conveyor: 140" x 68" x 80"
Approximate Weight: 9,000 lbs

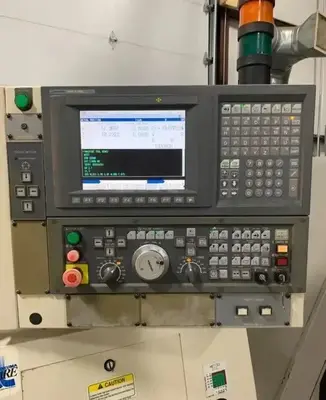

Okuma OSP-E100L CNC Control

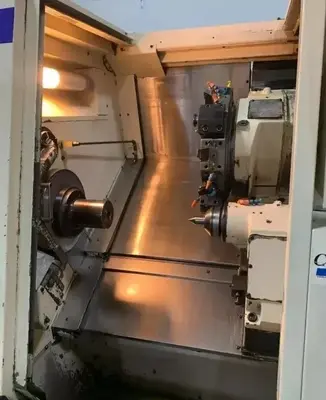

12-Station Turret
Collet Chuck
Touch Setter
Hydraulic Tailstock with Power Quill
Chip Pan and Chip Conveyor
Coolant System
Automatic Lubrication System
Foot Operated Control for Chuck and Tailstock
This used 2001 Okuma Captain L370 CNC lathe has a hydraulic tailstock with power quill, a 12-station turret, and a touch setter, all run from an Okuma OSP-E100L control. It offers 20.8" of swing, a 20.47" machining length, and a 14.5" turning diameter, with an 8" chuck, 1.97" bar capacity, and a 20 HP spindle reaching 4,500 RPM.
The Okuma Captain L370, also searched as Okuma Captain L-370, Captain L 370, or L370, is a 2-axis CNC turning center.
This 2001 machine has 10.23" of X-axis travel and 20.47" of Z-axis travel, with rapid rates of 787 IPM in X and 984 IPM in Z, plus an A2-6 spindle nose with a 2.44" bore, 15.78" of swing over the slide, and 22.29" between centers. It also comes with a collet chuck, chip pan and chip conveyor, coolant system, automatic lubrication, and foot-operated chuck and tailstock controls. Its approximate dimensions are 110" x 68" x 80" (140" long with the chip conveyor), and its approximate weight is 9,000 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 20.8" |
| Machining Length | 20.47" |
| # Axis | 2 |
| Chuck Size | 8" |
| Bar Capacity | 1.97" |
| Power | 20 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 14.5" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (OKUMA) |
Swing Over Slide: 15.78"
Distance Between Centers: 22.29"
X-Axis Travel: 10.23"
Z-Axis Travel: 20.47"
Rapid Traverse X: 787 IPM
Rapid Traverse Z: 984 IPM
Spindle Nose: A2-6
Spindle Bore: 2.44"
Approximate Dimensions: 110" x 68" x 80"
Approximate Dimensions with Chip Conveyor: 140" x 68" x 80"
Approximate Weight: 9,000 lbs
Okuma OSP-E100L CNC Control
12-Station Turret
Collet Chuck
Touch Setter
Hydraulic Tailstock with Power Quill
Chip Pan and Chip Conveyor
Coolant System
Automatic Lubrication System
Foot Operated Control for Chuck and Tailstock
