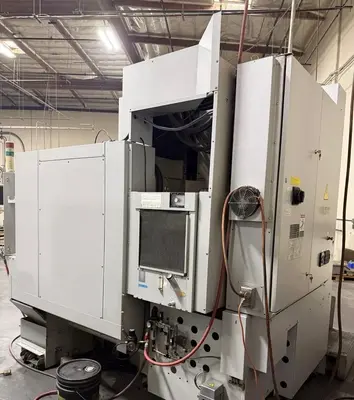

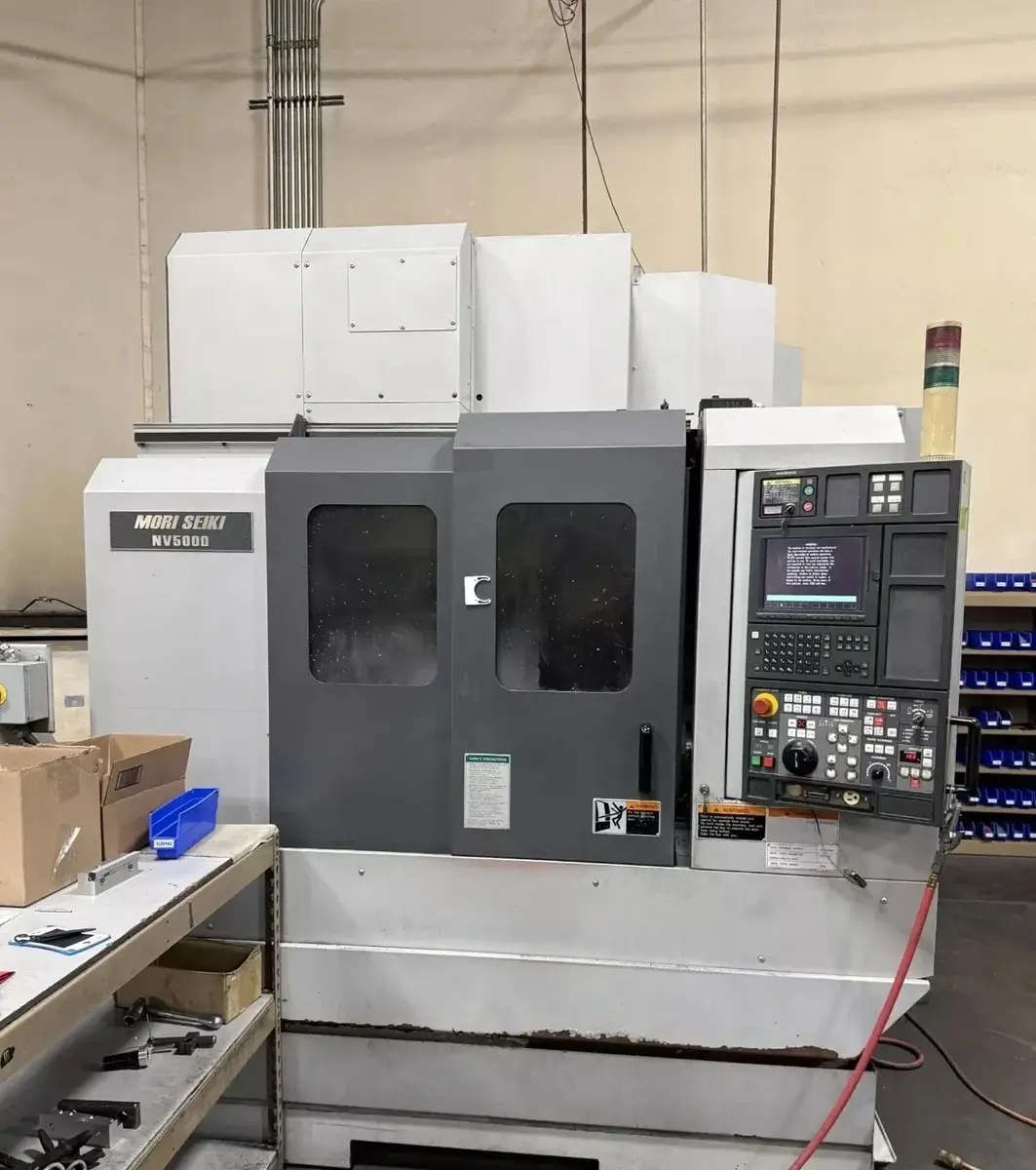

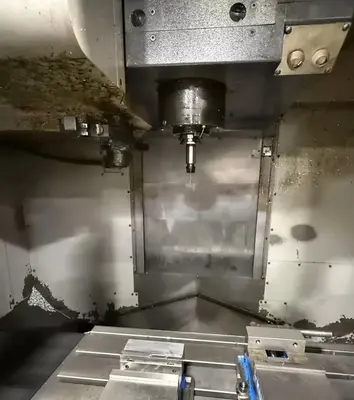

2002 Mori Seiki NV5000 1A/40 Vertical Machining Center with 4th Axis
Have one to sell?
ConditionUsed
1 available
This 2002 Mori Seiki NV5000 1A/40 vertical machining center comes with a Nikken 4th axis rotary table and a 12,000 RPM, 30 HP 40 taper spindle. It has 31" x 20" x 20" travels over a 37.5" x 19" table, with a 30-tool ATC and chip conveyor.

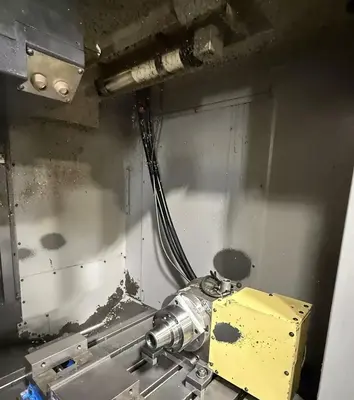

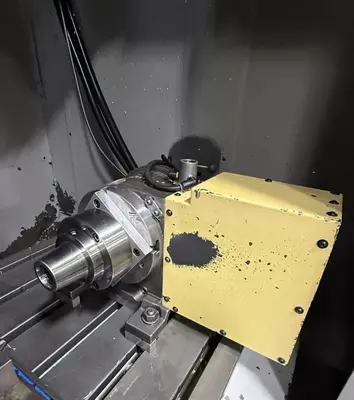

Nikken 4th Axis Rotary Table
Chip Conveyor
This 2002 Mori Seiki NV5000 1A/40 vertical machining center comes with a Nikken 4th axis rotary table and a 12,000 RPM, 30 HP 40 taper spindle. It has 31" x 20" x 20" travels over a 37.5" x 19" table, with a 30-tool ATC and chip conveyor.
The Mori Seiki NV5000 1A/40, also searched as NV5000A/40, NV5000 A/40, NV 5000, NV5000, or DMG Mori NV5000, is a vertical machining center (VMC) with a 4th axis.
This 2002 machine has an approximate weight of 13,889.11 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 31" |
| Y | 20" |
| Z | 20" |
| Power | 30 hp |
| RPM | 12,000 RPM |
| # ATC | 30 |
| Table-W | 19" |
| Table-L | 37.5" |
| # Axis | 4 |
| Control | CNC (Fanuc) |
Nikken 4th Axis Rotary Table
Chip Conveyor
