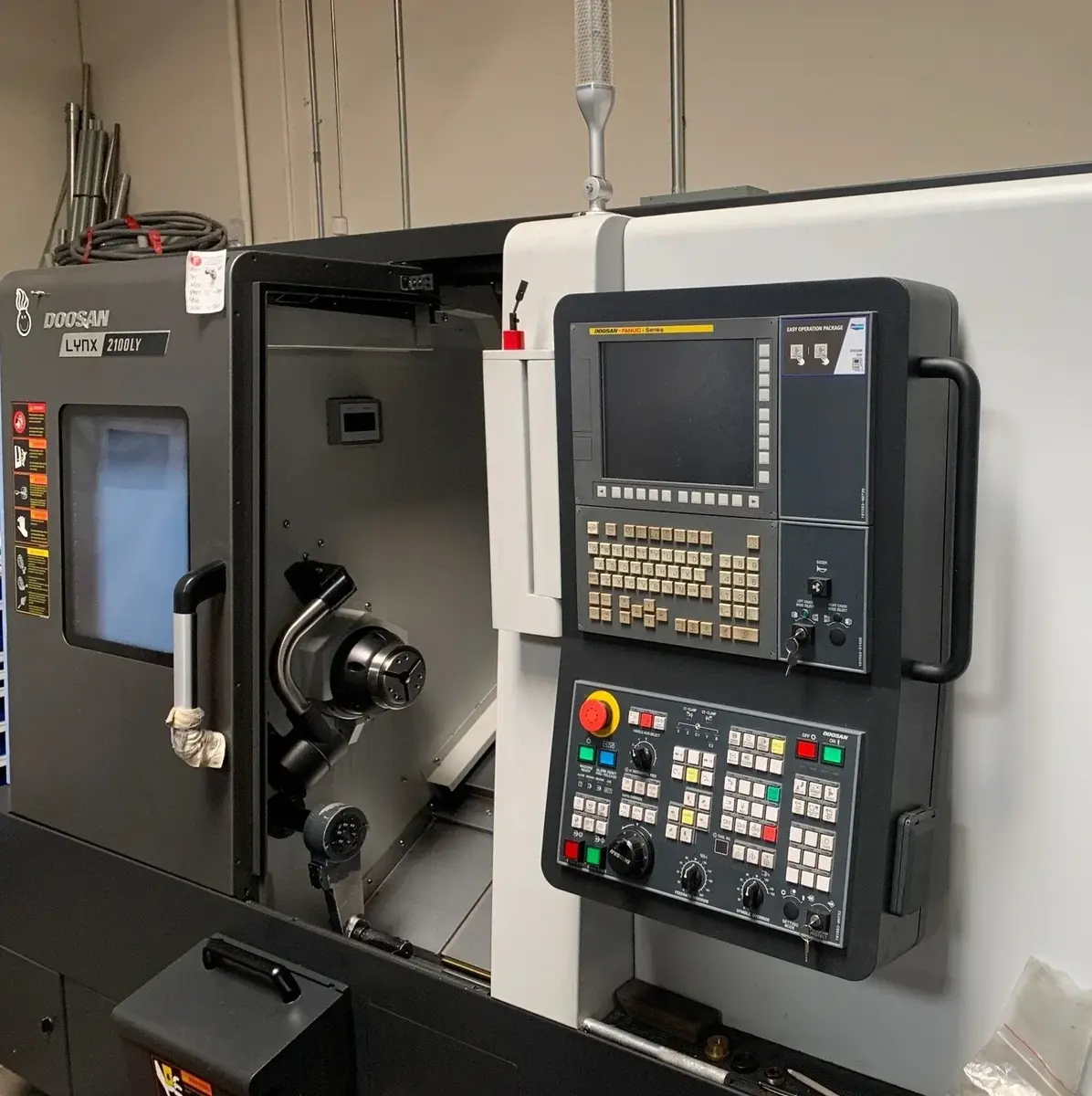

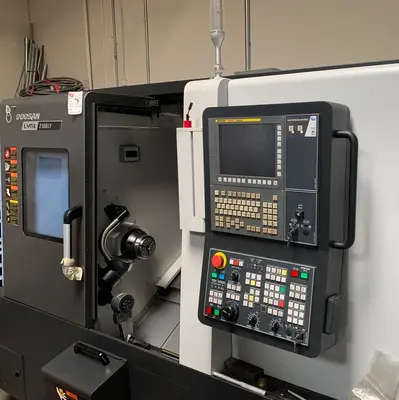

2019 Doosan Lynx 2100LYA CNC Lathe with Y-Axis Live Tooling
Have one to sell?
ConditionUsed
1 available

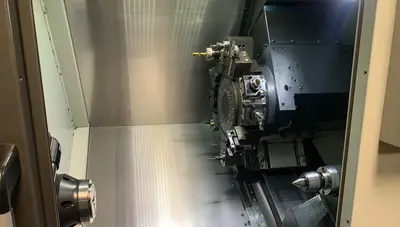

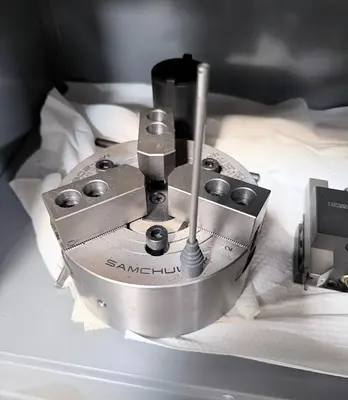

This 2019 Doosan Lynx 2100LYA CNC lathe has Y-axis live tooling on a 12-station BMT45 turret, with 6,000 RPM live tools and a programmable hydraulic tailstock. Its 20 HP main spindle reaches 6,000 RPM, with a 6" chuck, 2.0" bar capacity, and a Royal Quick-Grip collet chuck.
Spindle Torque: 93.7 ft-lbs
X-Axis Travel: 8.1"
Y-Axis Travel: 4.1"
Z-Axis Travel: 22.0"
Rapid Traverse Rate (X/Z): 1,181 / 1,417 IPM

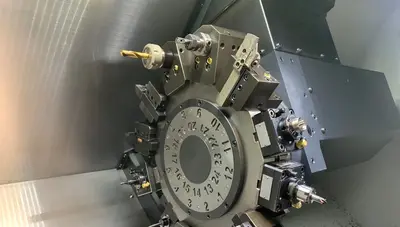

Turret Capacity: 12 Stations
Turret Type: BMT45
Live Tooling Speed: 6,000 RPM
Live Tool Motor: 5 HP

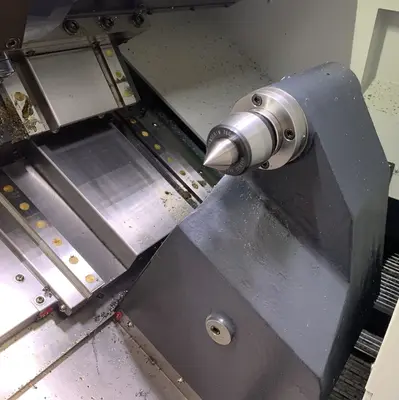

Tailstock Type: Programmable Hydraulic CNC Tailstock
Tailstock Travel: 22.0"
Tailstock Quill Diameter: 2.6"
Tailstock Quill Travel: 3.1"
Tailstock Center Taper: MT#4
Bed Design: 30° Slant Bed, Cast Iron
Guideways: Roller-Type Linear Motion Guides
Lubrication: Automated Grease-Type System
Approximate Weight: 8,500 lbs
Approximate Dimensions (L x W x H): 113.4" x 76.0" x 67.5"

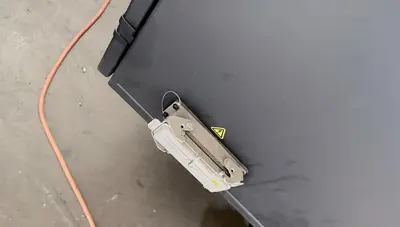

Automatic Tool Setter (Removable/Pivot Type Probe)

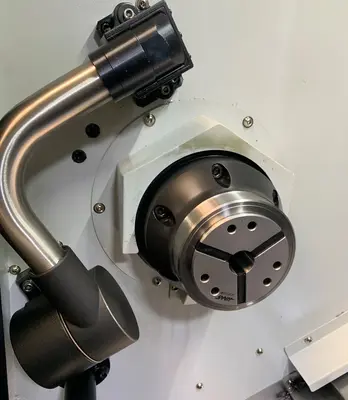

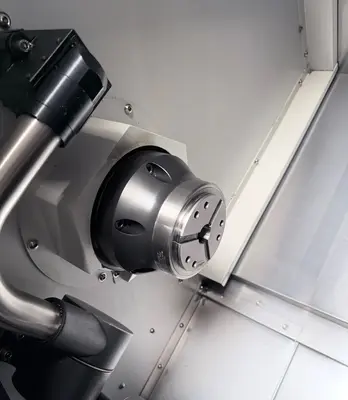

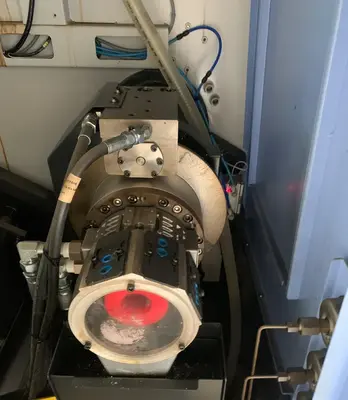

Royal Quick-Grip Accu-Length CNC Collet Chuck (QG-65, A2-5 Spindle Nose)
Turbo Side Discharge Chip Conveyor with Variable Speed Drive and M-Code Capability
Toolholder Package
This 2019 Doosan Lynx 2100LYA CNC lathe has Y-axis live tooling on a 12-station BMT45 turret, with 6,000 RPM live tools and a programmable hydraulic tailstock. Its 20 HP main spindle reaches 6,000 RPM, with a 6" chuck, 2.0" bar capacity, and a Royal Quick-Grip collet chuck.
The Doosan Lynx 2100LYA, also searched as Lynx 2100 LYA, Lynx 2100, or DN Solutions Lynx 2100LYA, is a CNC turning center with Y-axis live tooling (mill-turn).
This 2019 machine has 8.1" of X-axis travel, 4.1" of Y-axis travel, and 22.0" of Z-axis travel, with rapid rates of 1,181 IPM on X and 1,417 IPM on Z. It has 93.7 ft-lbs of spindle torque, a 5 HP live tool motor, a 30° cast iron slant bed with roller-type linear guides, and a tailstock with 22.0" of travel and an MT#4 center. It comes equipped with an automatic tool setter, turbo side discharge chip conveyor, and toolholder package, with approximate dimensions of 113.4" x 76.0" x 67.5" and an approximate weight of 8,500 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 23.6" |
| Machining Length | 20" |
| # Axis | 4 |
| Chuck Size | 6" |
| Bar Capacity | 2" |
| Power | 20 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 11.8" |
| Tailstock | Yes |
| Live Tooling | Yes |

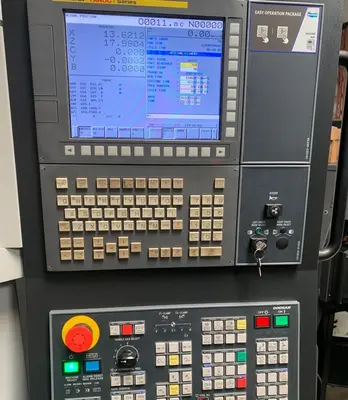

| Control | CNC (18i Fanuc) |
Spindle Torque: 93.7 ft-lbs
X-Axis Travel: 8.1"
Y-Axis Travel: 4.1"
Z-Axis Travel: 22.0"
Rapid Traverse Rate (X/Z): 1,181 / 1,417 IPM
Turret Capacity: 12 Stations
Turret Type: BMT45
Live Tooling Speed: 6,000 RPM
Live Tool Motor: 5 HP
Tailstock Type: Programmable Hydraulic CNC Tailstock
Tailstock Travel: 22.0"
Tailstock Quill Diameter: 2.6"
Tailstock Quill Travel: 3.1"
Tailstock Center Taper: MT#4
Bed Design: 30° Slant Bed, Cast Iron
Guideways: Roller-Type Linear Motion Guides
Lubrication: Automated Grease-Type System
Approximate Weight: 8,500 lbs
Approximate Dimensions (L x W x H): 113.4" x 76.0" x 67.5"
Automatic Tool Setter (Removable/Pivot Type Probe)
Royal Quick-Grip Accu-Length CNC Collet Chuck (QG-65, A2-5 Spindle Nose)
Turbo Side Discharge Chip Conveyor with Variable Speed Drive and M-Code Capability
Toolholder Package
