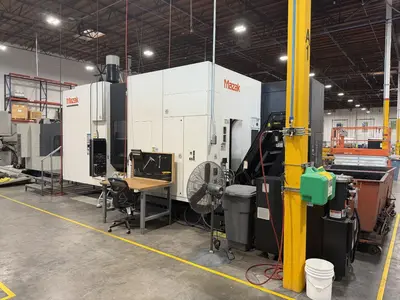

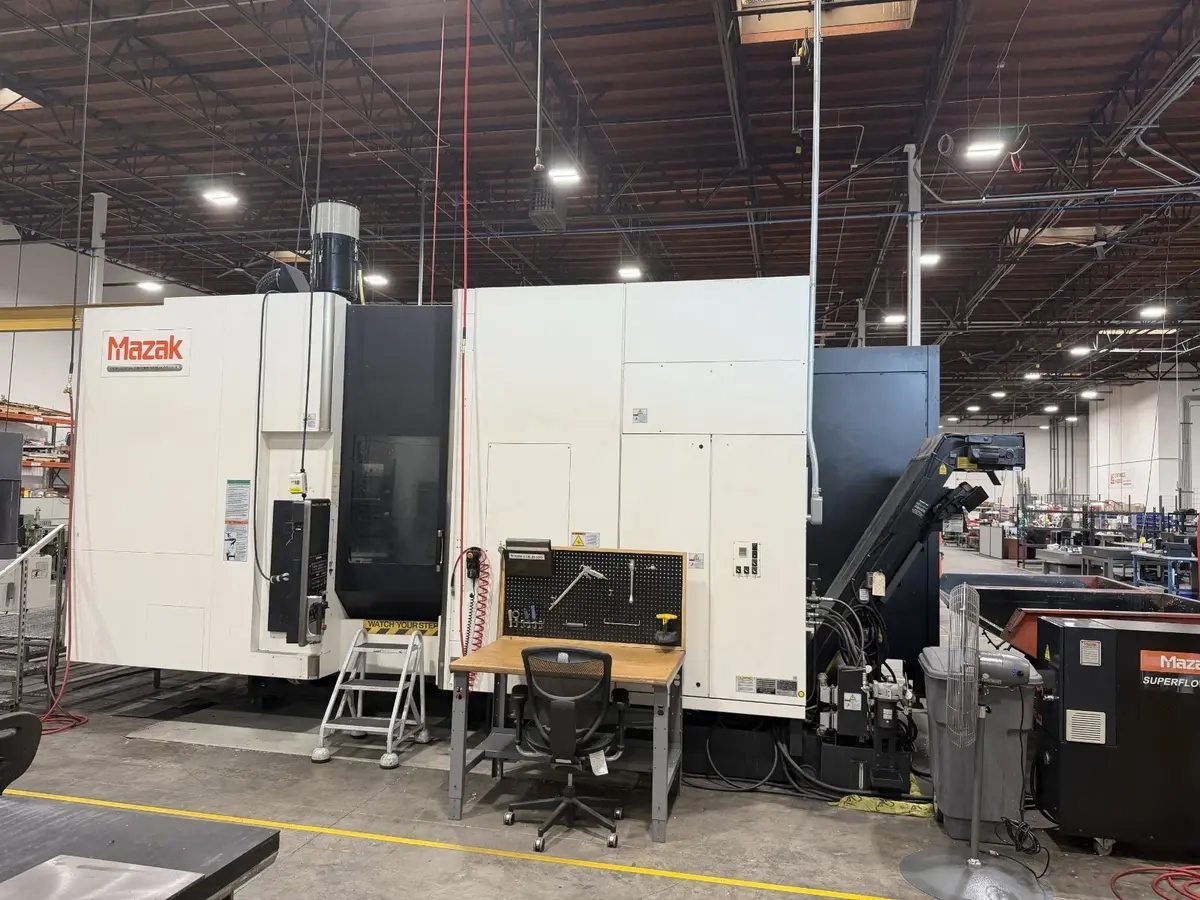

2014 Mazak HCN-6800 Horizontal Machining Center with 120 ATC
Have one to sell?
ConditionUsed
1 available

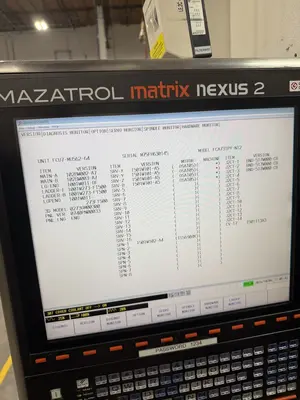

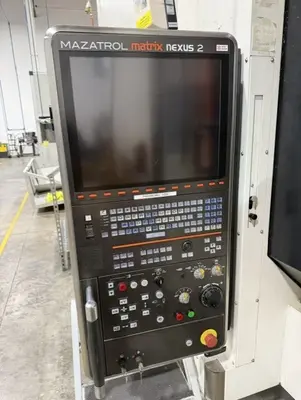

This 2014 Mazak HCN-6800 horizontal machining center carries a 120-tool chain magazine, two 24.8" x 24.8" pallets, and a full NC B-axis rotary table, with 41.34" x 35.43" x 38.58" travels. Its CT-50 spindle reaches 10,000 RPM under a Mazatrol Matrix Nexus 2 control, with 1,000 PSI SuperFlow through spindle coolant and a Renishaw OMP60 probe.
Number of Pallets: 2
Spindle Center to Pallet Top: 3.94"-39.37"
Spindle Nose to Pallet Center: 5.91"-44.49"
Max Workpiece Envelope: 41.34" Diameter x 51.18" Height
Max Pallet Load: 3,307 lbs per Pallet
Rapid Traverse (X, Y, Z): 2,362 IPM
Spindle Drive: High-Torque Integral Spindle

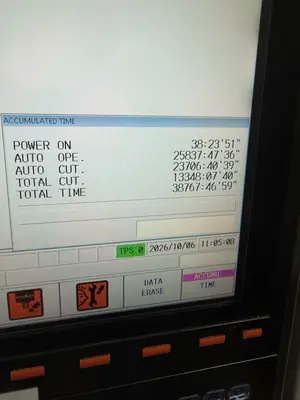

Approximately 13,348 Total Cutting Hours
Approximate Weight: 42,000 lbs (Main Machine), 54,500 lbs (Total System)
Approximate Dimensions: 232" x 140" x 135" (Main Machine, L x W x H)

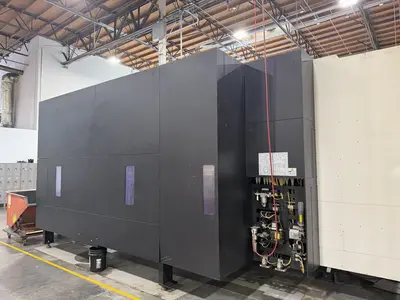

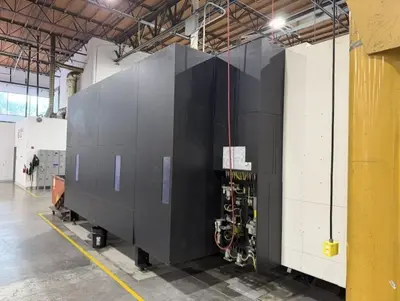

Chain-Type Tool Magazine
2-Pallet Rotary Automatic Pallet Changer
Full NC B-Axis Rotary Table (360,000 Positions)
Renishaw OMP60 Optical Spindle Probe with CAT-50 Toolholder and Extension Shank
Auto TLM (Automatic Tool Length Measurement)

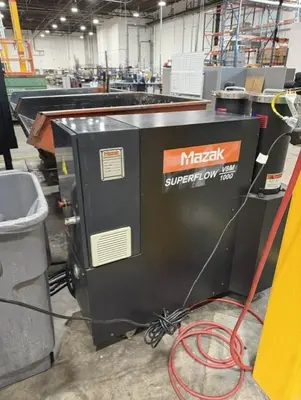

Mazak SuperFlow V8M-1000 High-Pressure Through Spindle Coolant (1,000 PSI)
Eriez FilterMaster Auxiliary Filtration Cart

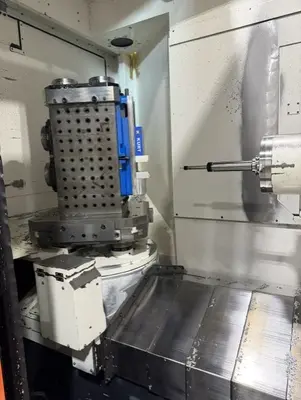

4-Sided Cast Iron Grid Tombstone
Dual-Station Kurt CNC Vises

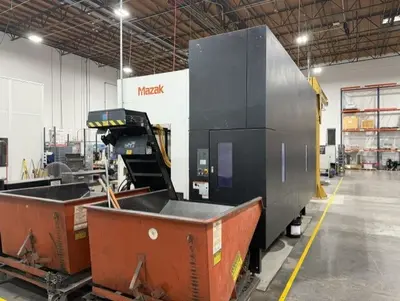

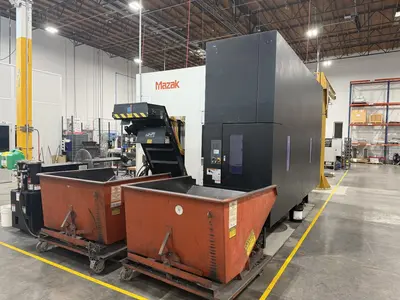

Mayfran / Mazak Lift-Up Hinge-Belt Chip Conveyor

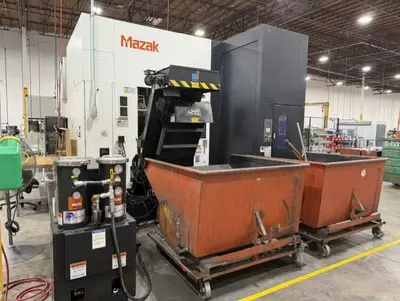

(2) Self-Dumping Chip Hoppers
Filtermist Mist Collector
Workpiece Air Blast

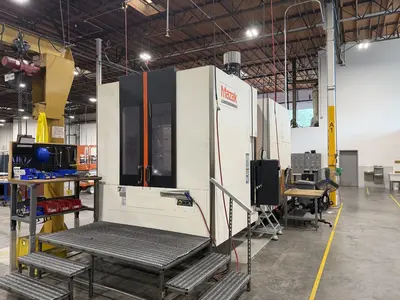

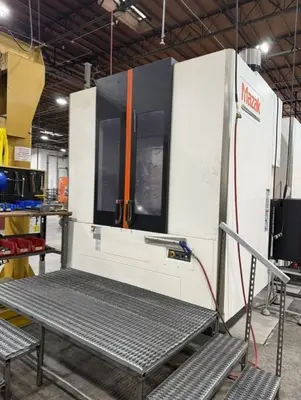

Operator Work Platform with Dual Access Stairways and Safety Rails
Mazacc-3D High-Speed Software Package (G61.1 & G05P2)
High Smoothing Control
High Speed Machining
EIA 3D Compensation
Inverse Time Feed
Tilted Working Plane (TWP / 3+2 Milling Positioning)
Cylindrical Interpolation
Rotary-Axis Shape Compensation
Dynamic Compensation (2, 1)
Dynamic Work Coordinate System (G54.1)
Polar Coordinates Input, Coordinate System Rotation, Scaling, Geometric Commands
Auto Pecking Cycle with Load Detection
Synchronized Mill Tapping (Rigid Tapping)
EIA Helical Tap Cycle and EIA Pattern Cycle
Pitch Error Compensation and Shape Compensation
8 MB Maximum Program Size Expansion
Variable Macro 600 Sets
Inch/Metric Conversion
This 2014 Mazak HCN-6800 horizontal machining center carries a 120-tool chain magazine, two 24.8" x 24.8" pallets, and a full NC B-axis rotary table, with 41.34" x 35.43" x 38.58" travels. Its CT-50 spindle reaches 10,000 RPM under a Mazatrol Matrix Nexus 2 control, with 1,000 PSI SuperFlow through spindle coolant and a Renishaw OMP60 probe.
Imperial
| X | 41.34" |
| Y | 35.43" |
| Z | 38.58" |
| RPM | 10,000 RPM |
| # ATC | 120 |
| Taper | CAT 50 |
| Pallet-W | 24.8" |
| Pallet-L | 24.8" |
| # Axis | 4 |
| Control | CNC (Mazatrol Matrix Nexus 2) |
Number of Pallets: 2
Spindle Center to Pallet Top: 3.94"-39.37"
Spindle Nose to Pallet Center: 5.91"-44.49"
Max Workpiece Envelope: 41.34" Diameter x 51.18" Height
Max Pallet Load: 3,307 lbs per Pallet
Rapid Traverse (X, Y, Z): 2,362 IPM
Spindle Drive: High-Torque Integral Spindle
Approximately 13,348 Total Cutting Hours
Approximate Weight: 42,000 lbs (Main Machine), 54,500 lbs (Total System)
Approximate Dimensions: 232" x 140" x 135" (Main Machine, L x W x H)
Chain-Type Tool Magazine
2-Pallet Rotary Automatic Pallet Changer
Full NC B-Axis Rotary Table (360,000 Positions)
Renishaw OMP60 Optical Spindle Probe with CAT-50 Toolholder and Extension Shank
Auto TLM (Automatic Tool Length Measurement)
Mazak SuperFlow V8M-1000 High-Pressure Through Spindle Coolant (1,000 PSI)
Eriez FilterMaster Auxiliary Filtration Cart
4-Sided Cast Iron Grid Tombstone
Dual-Station Kurt CNC Vises
Mayfran / Mazak Lift-Up Hinge-Belt Chip Conveyor
(2) Self-Dumping Chip Hoppers
Filtermist Mist Collector
Workpiece Air Blast
Operator Work Platform with Dual Access Stairways and Safety Rails
Mazacc-3D High-Speed Software Package (G61.1 & G05P2)
High Smoothing Control
High Speed Machining
EIA 3D Compensation
Inverse Time Feed
Tilted Working Plane (TWP / 3+2 Milling Positioning)
Cylindrical Interpolation
Rotary-Axis Shape Compensation
Dynamic Compensation (2, 1)
Dynamic Work Coordinate System (G54.1)
Polar Coordinates Input, Coordinate System Rotation, Scaling, Geometric Commands
Auto Pecking Cycle with Load Detection
Synchronized Mill Tapping (Rigid Tapping)
EIA Helical Tap Cycle and EIA Pattern Cycle
Pitch Error Compensation and Shape Compensation
8 MB Maximum Program Size Expansion
Variable Macro 600 Sets
Inch/Metric Conversion
