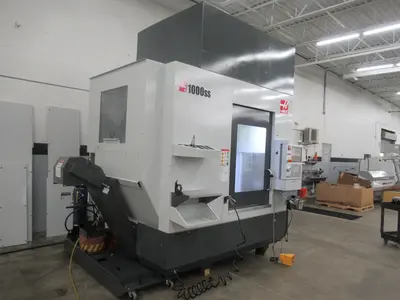

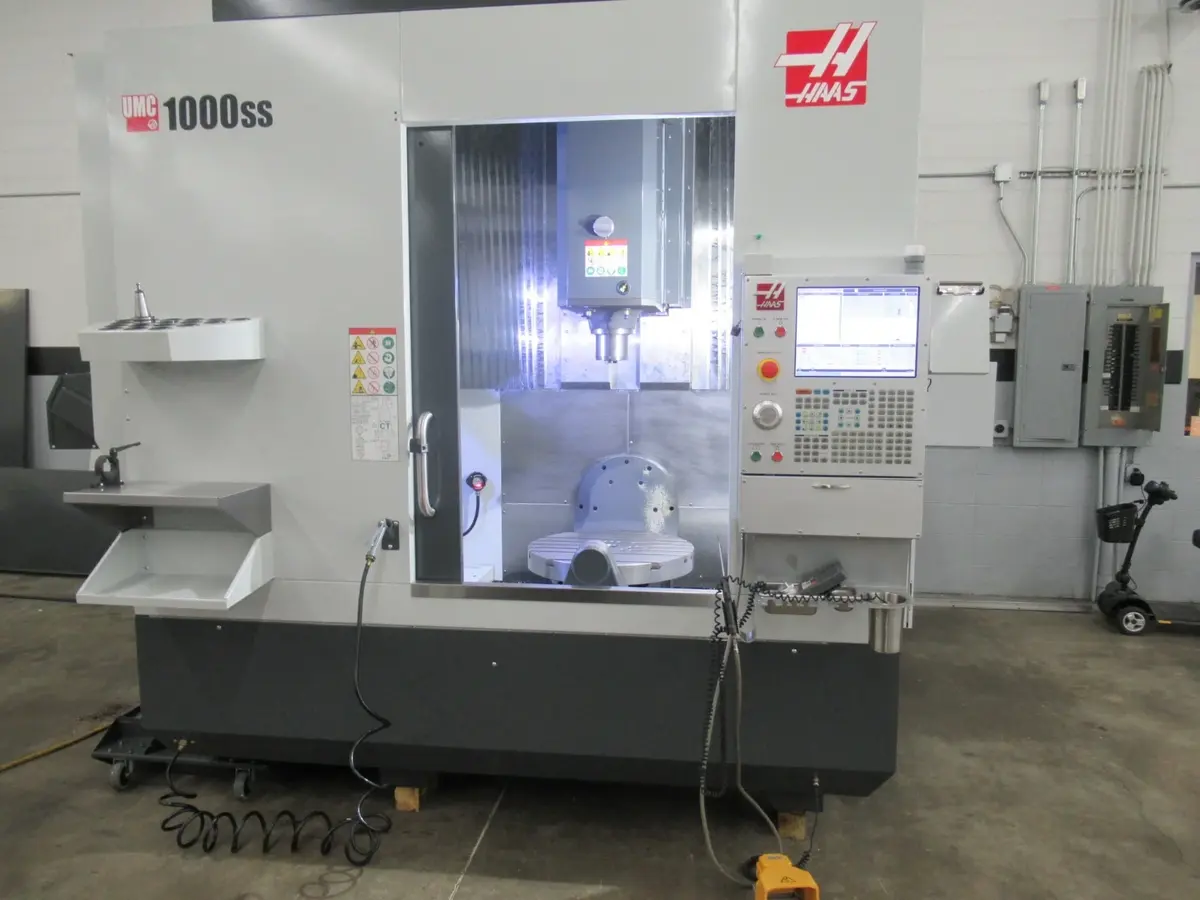

2020 Haas UMC-1000SS 5-Axis Vertical Machining Center with TSC
Have one to sell?
ConditionUsed
1 available
This 2020 Haas UMC-1000SS 5-axis vertical machining center combines a 25" built-in trunnion table with through spindle coolant, probing, and a chip conveyor over 40" x 25" x 25" travels. Its 30 HP inline direct-drive spindle reaches 12,000 RPM with CT-40 tooling and a 30+1 tool changer.

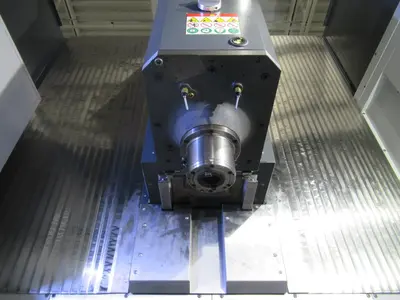

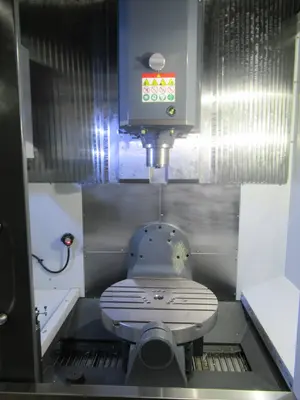

Table Style: Built-In Trunnion Table
Table Size: 25" Diameter
Spindle Nose to Platter: 4"-29"
5th Axis Tilt Range: 120 Degrees to -35 Degrees
C-Axis Rotation Travel: 360 Degrees
C-Axis Max Speed: 179 Degrees/Second
Max Part Swing: 34"
Max Weight on Platter: 1,000 lbs
Rapid Traverse (X/Y/Z): 1,200 IPM
Max Cutting Feedrate: 833 IPM

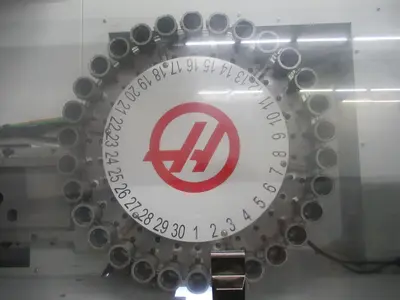

Tool Change Time: 1.8 s Tool-to-Tool / 2.4 s Chip-to-Chip
Max Tool Length: 12" (From Gage Line)
Max Tool Diameter (Full / Adjacent Empty): 2.5" / 5.0"
Max Tool Weight: 12 lbs
Spindle Drive: Inline Direct-Drive
Coolant Capacity: 55 Gallons

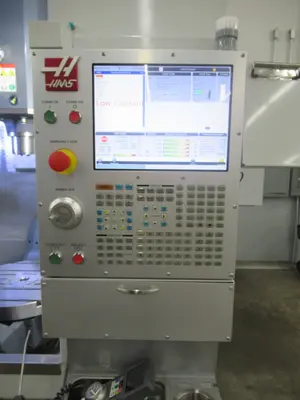

Haas Next Generation Control
Through Spindle Coolant
Probing
Chip Conveyor
Air Vise
This 2020 Haas UMC-1000SS 5-axis vertical machining center combines a 25" built-in trunnion table with through spindle coolant, probing, and a chip conveyor over 40" x 25" x 25" travels. Its 30 HP inline direct-drive spindle reaches 12,000 RPM with CT-40 tooling and a 30+1 tool changer.
Imperial
| X | 40" |
| Y | 25" |
| Z | 25" |
| # Axis | 5 |
| Power | 30 hp |
| RPM | 12,000 RPM |
| # ATC | 30 |
| Taper | CAT 40 |
| Control | CNC (HAAS) |
Table Style: Built-In Trunnion Table
Table Size: 25" Diameter
Spindle Nose to Platter: 4"-29"
5th Axis Tilt Range: 120 Degrees to -35 Degrees
C-Axis Rotation Travel: 360 Degrees
C-Axis Max Speed: 179 Degrees/Second
Max Part Swing: 34"
Max Weight on Platter: 1,000 lbs
Rapid Traverse (X/Y/Z): 1,200 IPM
Max Cutting Feedrate: 833 IPM
Tool Change Time: 1.8 s Tool-to-Tool / 2.4 s Chip-to-Chip
Max Tool Length: 12" (From Gage Line)
Max Tool Diameter (Full / Adjacent Empty): 2.5" / 5.0"
Max Tool Weight: 12 lbs
Spindle Drive: Inline Direct-Drive
Coolant Capacity: 55 Gallons
Haas Next Generation Control
Through Spindle Coolant
Probing
Chip Conveyor
Air Vise
