2020 Haas UMC-1000SS 5-Axis Vertical Machining Center with TSC
Have one to sell?
ConditionUsed
1 available
This 2020 Haas UMC-1000SS 5-axis vertical machining center combines a 25" built-in trunnion table with through spindle coolant, probing, and a chip conveyor over 40" x 25" x 25" travels. Its 30 HP inline direct-drive spindle reaches 12,000 RPM with CT-40 tooling and a 30+1 tool changer.

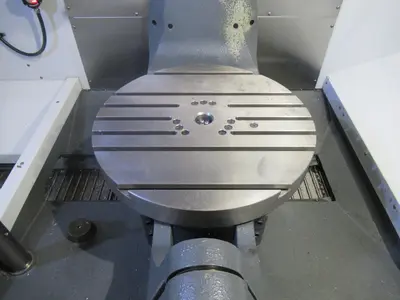

Table Style: Built-In Trunnion Table
Table Size: 25" Diameter
Spindle Nose to Platter: 4"-29"
5th Axis Tilt Range: 120 Degrees to -35 Degrees
C-Axis Rotation Travel: 360 Degrees
C-Axis Max Speed: 179 Degrees/Second
Max Part Swing: 34"
Max Weight on Platter: 1,000 lbs
Rapid Traverse (X/Y/Z): 1,200 IPM
Max Cutting Feedrate: 833 IPM
Tool Change Time: 1.8 s Tool-to-Tool / 2.4 s Chip-to-Chip
Max Tool Length: 12" (From Gage Line)
Max Tool Diameter (Full / Adjacent Empty): 2.5" / 5.0"
Max Tool Weight: 12 lbs
Spindle Drive: Inline Direct-Drive
Coolant Capacity: 55 Gallons

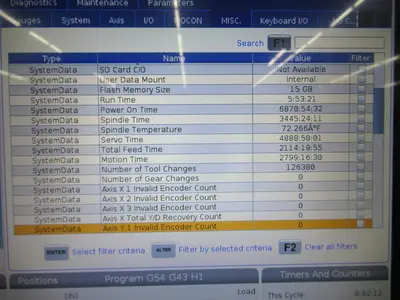

Haas Next Generation CNC Control

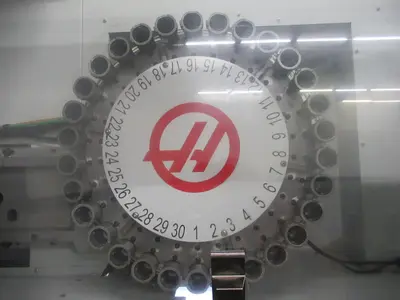

Twin-Arm Side-Mount Automatic Tool Changer
Dynamic Work Offset and Tool Point Center Software
High Speed Machining

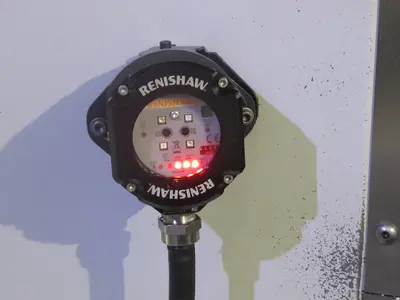

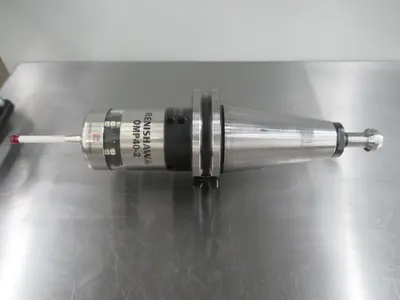

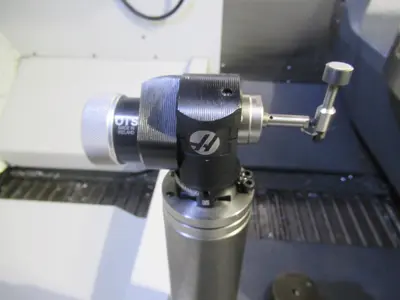

Haas Probing System with Renishaw Tool and Parts Probes
300 PSI Thru-Spindle Coolant
Chip Conveyor

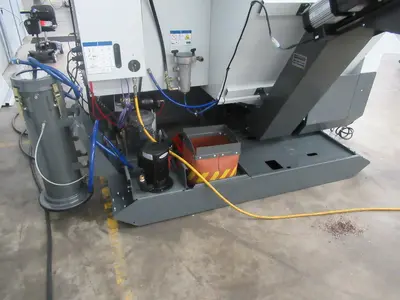

Coolant Pump and Tank

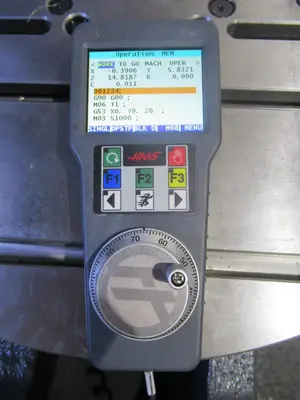

Remote Jog Handwheel

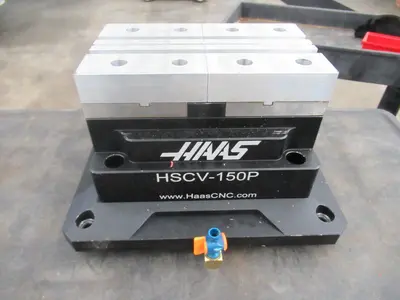

Pneumatic Work Clamping System with Haas HSCV-150P Air Vise
This 2020 Haas UMC-1000SS 5-axis vertical machining center combines a 25" built-in trunnion table with through spindle coolant, probing, and a chip conveyor over 40" x 25" x 25" travels. Its 30 HP inline direct-drive spindle reaches 12,000 RPM with CT-40 tooling and a 30+1 tool changer.
The Haas UMC-1000SS, also searched as UMC 1000SS, UMC1000SS, UMC-1000 SS, or UMC-1000, is a 5-axis universal machining center (5-axis VMC) with a built-in trunnion table.
This 2020 machine has 4" to 29" from spindle nose to platter, a tilt range of 120 to -35 degrees, full 360 degree C-axis rotation at up to 179 degrees per second, a 34" max part swing, and a 1,000 lb platter capacity. Rapids run 1,200 IPM with an 833 IPM max cutting feedrate, and it comes equipped with Dynamic Work Offset and Tool Point Center software, high speed machining, a chip conveyor, remote jog handwheel, and a pneumatic work clamping system with a Haas HSCV-150P air vise.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 40" |
| Y | 25" |
| Z | 25" |
| # Axis | 5 |
| Power | 30 hp |
| RPM | 12,000 RPM |
| # ATC | 30 |
| Taper | CAT-40 |
| Control | CNC (HAAS) |
Table Style: Built-In Trunnion Table
Table Size: 25" Diameter
Spindle Nose to Platter: 4"-29"
5th Axis Tilt Range: 120 Degrees to -35 Degrees
C-Axis Rotation Travel: 360 Degrees
C-Axis Max Speed: 179 Degrees/Second
Max Part Swing: 34"
Max Weight on Platter: 1,000 lbs
Rapid Traverse (X/Y/Z): 1,200 IPM
Max Cutting Feedrate: 833 IPM
Tool Change Time: 1.8 s Tool-to-Tool / 2.4 s Chip-to-Chip
Max Tool Length: 12" (From Gage Line)
Max Tool Diameter (Full / Adjacent Empty): 2.5" / 5.0"
Max Tool Weight: 12 lbs
Spindle Drive: Inline Direct-Drive
Coolant Capacity: 55 Gallons
Haas Next Generation CNC Control
Twin-Arm Side-Mount Automatic Tool Changer
Dynamic Work Offset and Tool Point Center Software
High Speed Machining
Haas Probing System with Renishaw Tool and Parts Probes
300 PSI Thru-Spindle Coolant
Chip Conveyor
Coolant Pump and Tank
Remote Jog Handwheel
Pneumatic Work Clamping System with Haas HSCV-150P Air Vise
