2006 Haas VF-2 5-Axis Vertical Machining Center with 30K Spindle
Have one to sell?
ConditionUsed
1 available

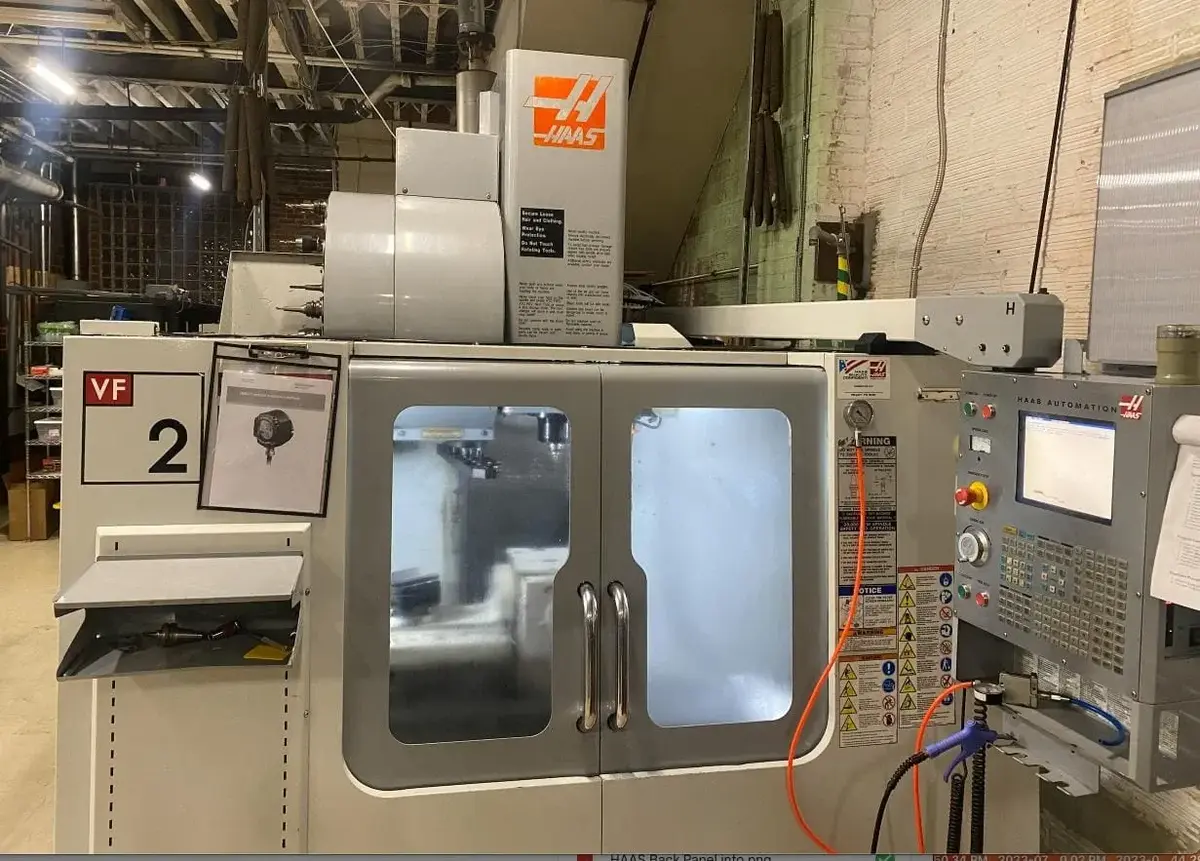

This 2006 Haas VF-2 5-axis vertical machining center pairs a 5th axis trunnion rotary table with a 30,000 RPM, 30 HP vector drive spindle in a CT-30 taper, along with Renishaw probing and a chiller unit. Travels are 30" x 16" x 20" over a 36" x 14" table rated for 3,500 lbs, with 1,000 IPM rapids in X and Y.
Max Weight on Table: 3,500 lbs
Spindle Nose to Table Surface: 4" to 24"
X/Y-Axis Rapid Traverse: 1,000 IPM
Z-Axis Rapid Traverse: 800 IPM
Approximately 9,506 Spindle Hours

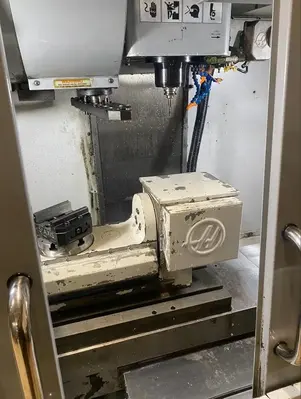

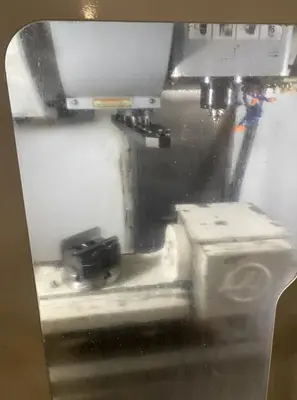

5th Axis Trunnion Rotary Table
Vector Drive Spindle
Renishaw Probing Kit
Chiller Unit
55 Gallon Coolant Tank and Pump
Chip Auger and Chute
CAT 30 Tool Holders
This 2006 Haas VF-2 5-axis vertical machining center pairs a 5th axis trunnion rotary table with a 30,000 RPM, 30 HP vector drive spindle in a CT-30 taper, along with Renishaw probing and a chiller unit. Travels are 30" x 16" x 20" over a 36" x 14" table rated for 3,500 lbs, with 1,000 IPM rapids in X and Y.
Imperial
| X | 30" |
| Y | 16" |
| Z | 20" |
| Power | 30 hp |
| RPM | 30,000 RPM |
| # ATC | 20 |
| Taper | CT-30 |
| Table-W | 14" |
| Table-L | 36" |
| # Axis | 5 |
| Control | CNC (HAAS) |
Max Weight on Table: 3,500 lbs
Spindle Nose to Table Surface: 4" to 24"
X/Y-Axis Rapid Traverse: 1,000 IPM
Z-Axis Rapid Traverse: 800 IPM
Approximately 9,506 Spindle Hours
5th Axis Trunnion Rotary Table
Vector Drive Spindle
Renishaw Probing Kit
Chiller Unit
55 Gallon Coolant Tank and Pump
Chip Auger and Chute
CAT 30 Tool Holders
