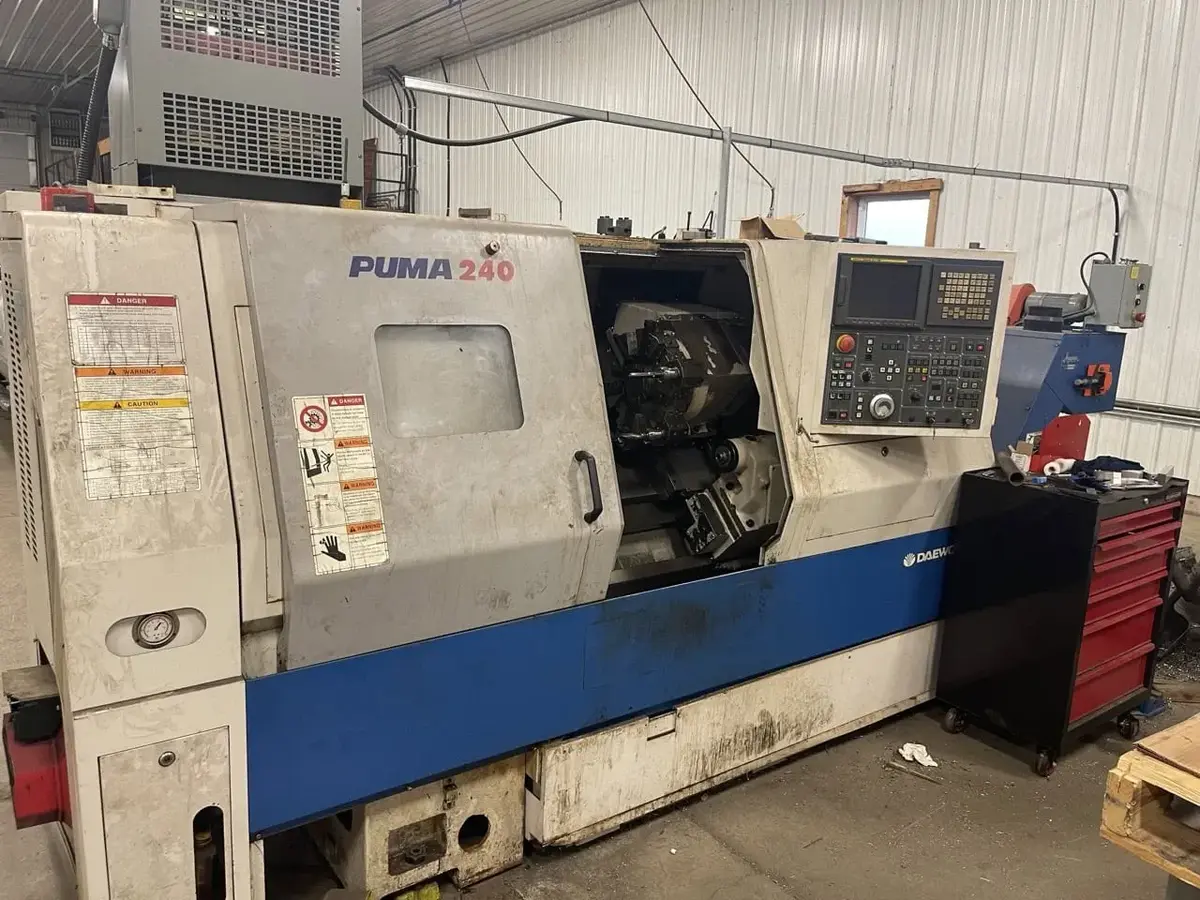

2005 Daewoo Puma 240 CNC Lathe
Have one to sell?
ConditionUsed
1 available
This 2005 Daewoo Puma 240 CNC lathe runs a Fanuc 21i-TB control with a 10" chuck, 12 station turret, and tailstock. It offers 21.7" of swing, a 13.8" max turning diameter, and 22.1" of machining length, driven by a 25/20 HP spindle with a top speed of 4,500 RPM.
X Axis Travel: 9.5"
Z Axis Travel: 22.8"
Rapid Rate X Axis: 945 IPM
Rapid Rate Z Axis: 1,200 IPM

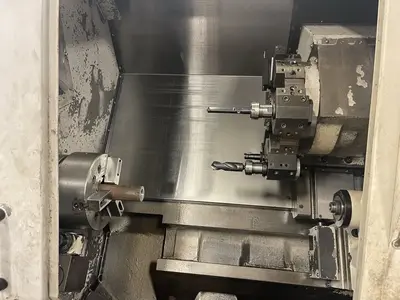

Turret: 12 Station
Through Bore: 2.6"
Approximate Dimensions: 126" x 63" x 69"
Approximate Weight: 9,470 lbs

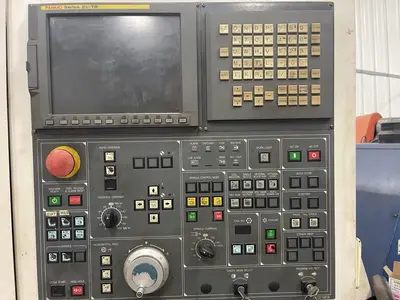

Fanuc Series 21i-TB Control
Chip Conveyor
This 2005 Daewoo Puma 240 CNC lathe runs a Fanuc 21i-TB control with a 10" chuck, 12 station turret, and tailstock. It offers 21.7" of swing, a 13.8" max turning diameter, and 22.1" of machining length, driven by a 25/20 HP spindle with a top speed of 4,500 RPM.
Imperial
| Swing | 21.7" |
| Machining Length | 22.1" |
| # Axis | 2 |
| Chuck Size | 10" |
| Bar Capacity | 2.6" |
| Power | 20 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 13.8" |
| Tailstock | 'Yes' |
| Live Tooling | 'No' |
| Sub Spindle | 'No' |
| Control | CNC (Fanuc) |
X Axis Travel: 9.5"
Z Axis Travel: 22.8"
Rapid Rate X Axis: 945 IPM
Rapid Rate Z Axis: 1,200 IPM
Turret: 12 Station
Through Bore: 2.6"
Approximate Dimensions: 126" x 63" x 69"
Approximate Weight: 9,470 lbs
Fanuc Series 21i-TB Control
Chip Conveyor
